ZT Avenger - Bad Boy Zero-Turn Mower (2024) DECK SUB ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

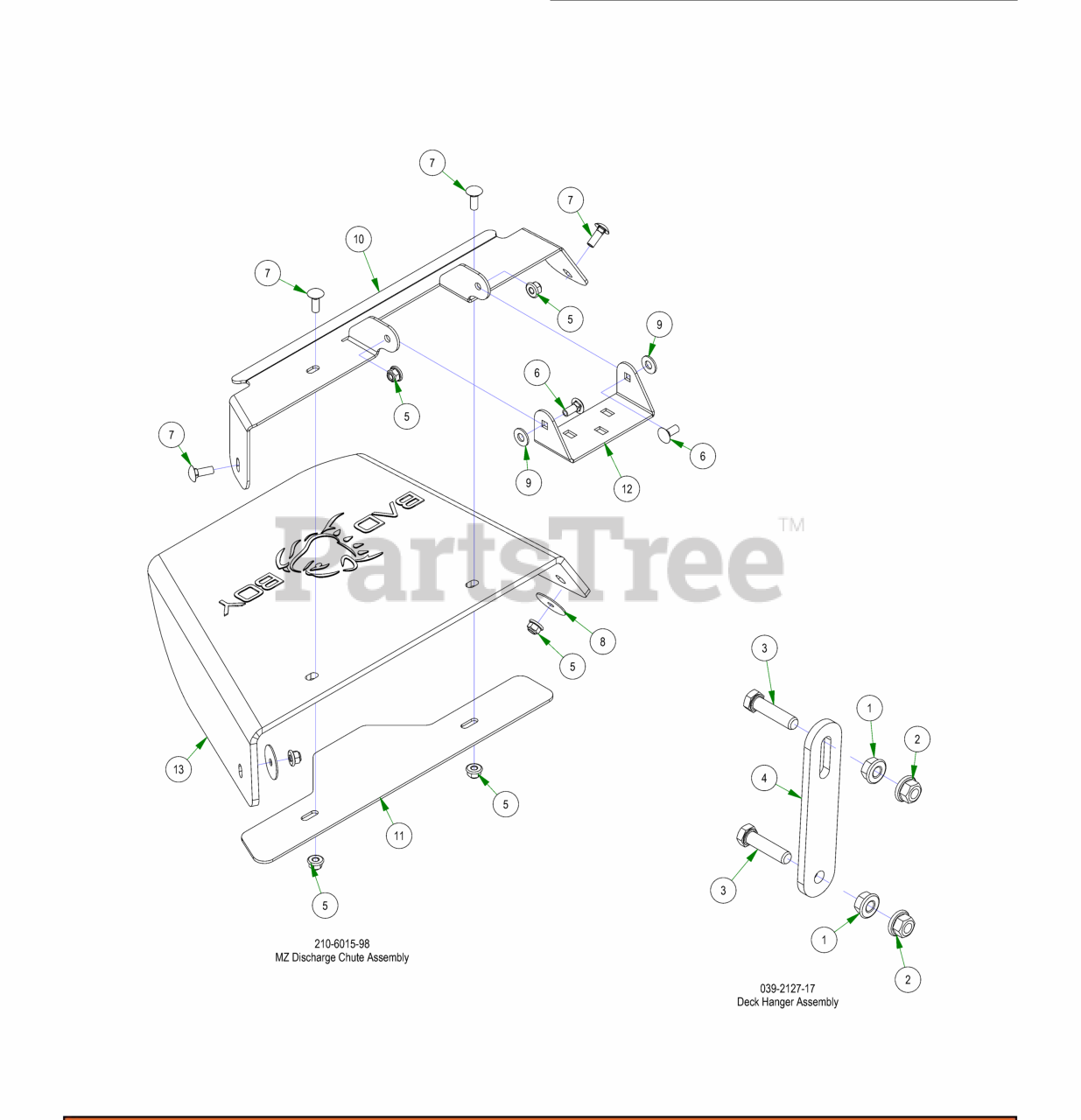

DECK SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title
1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

4

Bad Boy 039-2127-00

2017 MZ/ZT Deck Hanger

$11.99

$

Usually ships in 0 days

0

5

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 018-8062-00

5/16-18 x 3/4 Carriage Bolt

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

8

Bad Boy 019-0002-00

5/16 Fender Washer

$

$

Not available

9

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

10

Bad Boy 039-4891-00

Discharge Chute Bracket 48 MZ (Upper)

$37.99

$

Usually ships in 4-7 days

0

11

Bad Boy 039-4892-00

2017 MZ Discharge Chute Bracket-Lower

$

$

Not available

12

Bad Boy 206-6020-00

Chute Hanger 48 MZ

$30.99

$

Usually ships in 4-7 days

0

13

Bad Boy 210-6014-00

Rubber Discharge Chute MZ (Component)

$56.99

$

In Stock, only 2 left!

0
