ZT Avenger - Bad Boy Zero-Turn Mower (2023) TRANSAXLES Parts Diagram

Zero-Turn Mower

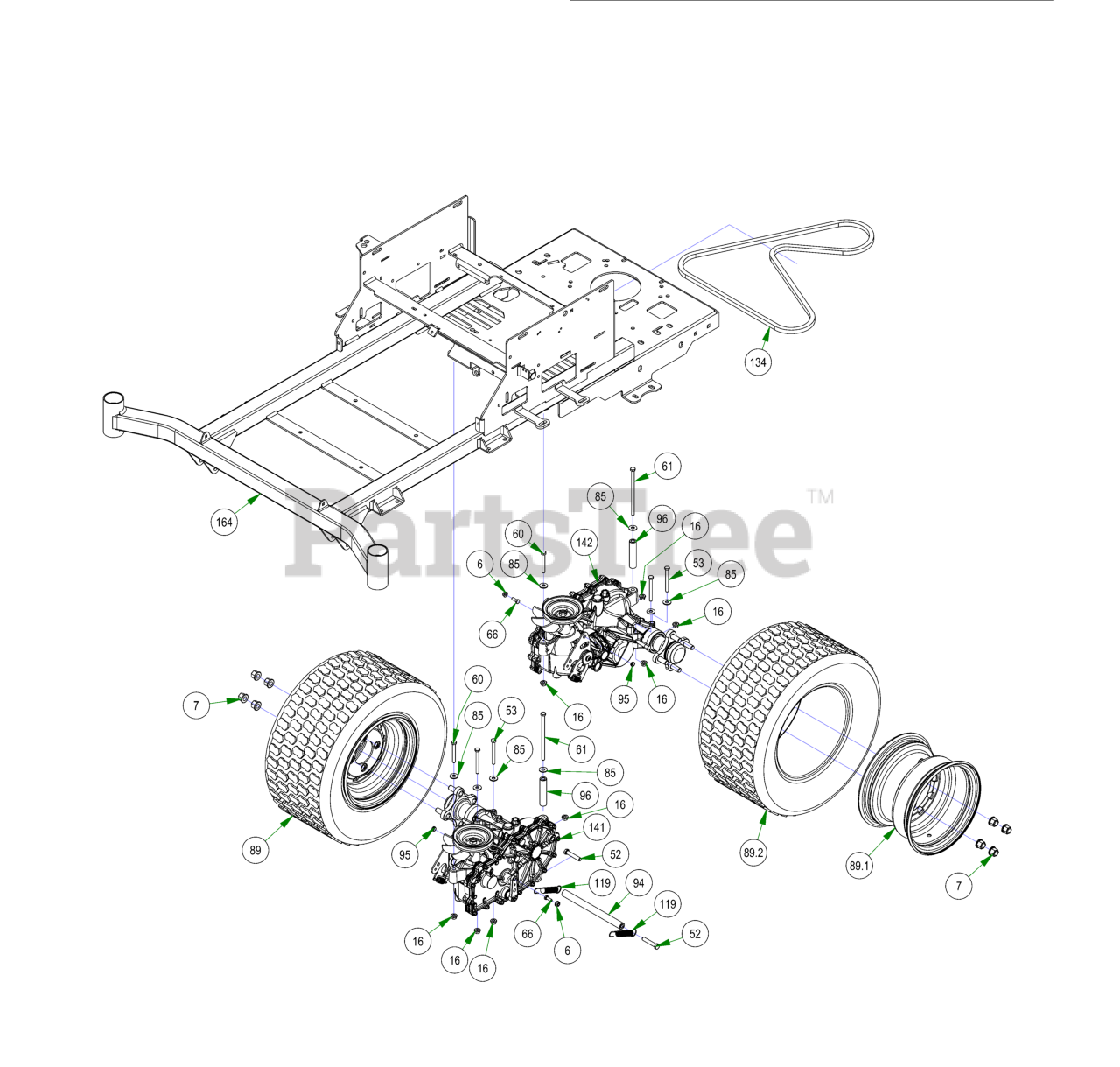

TRANSAXLES Parts Diagram

  • Title

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

7

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

16

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

52

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 6

0

53

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

60

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

61

Bad Boy 018-5355-00

5/16-18 X 6 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 3 left!

0

66

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

85

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

89

Bad Boy 022-0008-00

20x12x10 Rear Tire & Black Wheel Assembly

$303.99

$

Usually ships in 4-7 days

0

94

Bad Boy 025-0017-00

2017 Transaxle Spacer-ZT

$14.99

$

In Stock, Qty 5

0

95

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

96

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

119

Bad Boy 034-1026-00

Brake Return Spring

$15.99

$

In Stock, only 3 left!

0

134

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

141

Bad Boy 050-5050-02

2021 RH 2800 Transaxle

$797.99

$

Usually ships in 4-7 days

0

142

Bad Boy 050-5060-02

2021 LH 2800 Transaxle

$797.99

$

Usually ships in 4-7 days

0

164

Bad Boy 070-2301-00

2023 MZ-Avenger 54-60 Frame - Painted

$

$

Currently unavailable

89.1

Bad Boy 022-0011-00

10 x 8.50 Black Wheel for the 022-0008-00

$105.99

$

Usually ships in 4-7 days

0

89.2

Bad Boy 022-0012-00

20x12x10 Rear Tire

$166.99

$

Usually ships in 4-7 days

0
