ZT Avenger - Bad Boy Zero-Turn Mower (2023) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

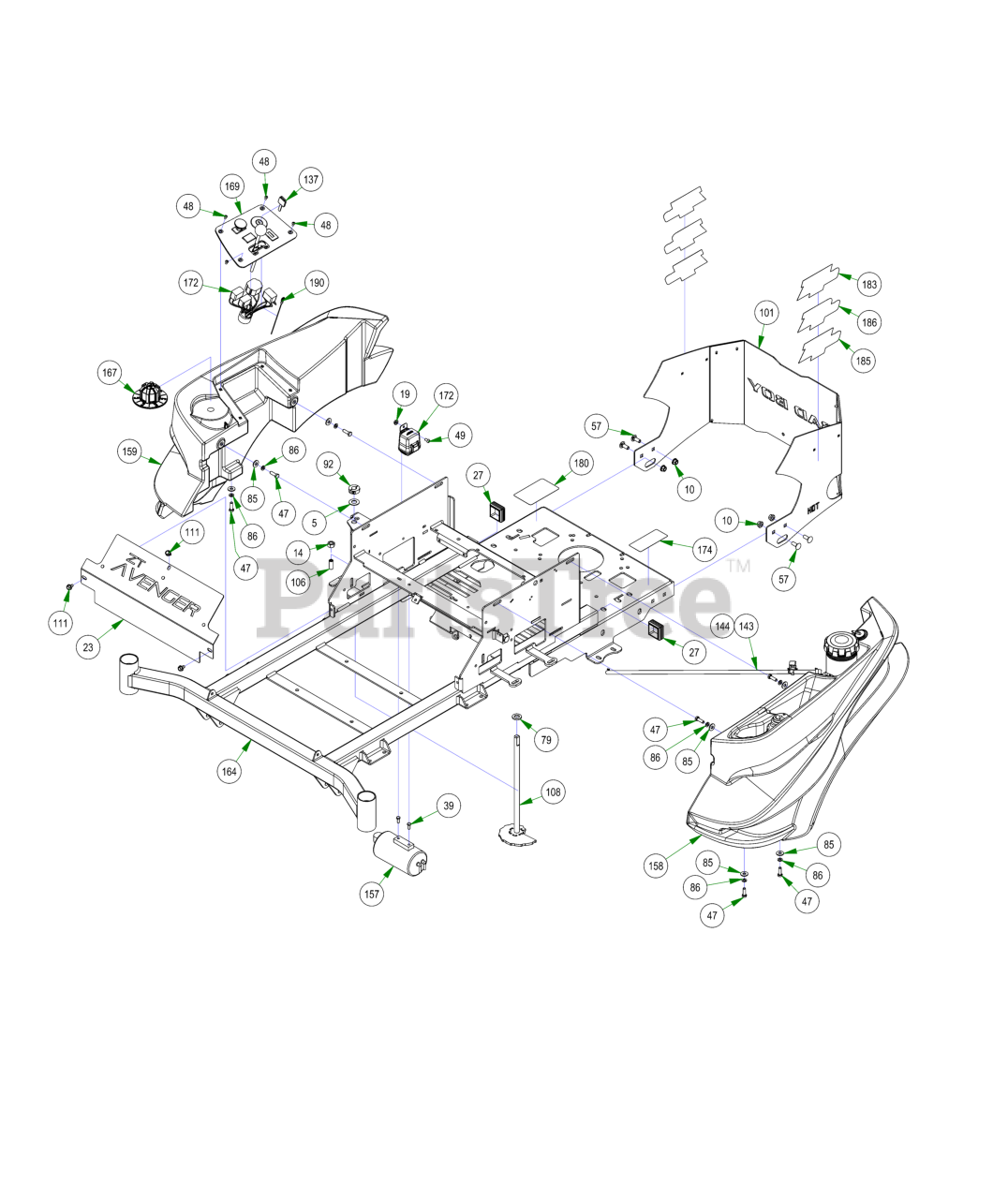

FUEL TANK & REAR COVER Parts Diagram

  • Title

5

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 014-3319-23

2023 ZT Avenger Cooler Cover Assembly

$79.99

$

Usually ships in 4-7 days

0

27

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

39

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

47

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

48

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 9

0

49

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, only 4 left!

0

57

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

79

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

85

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

86

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

92

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

101

Bad Boy 026-0224-00

2022 ZT Avenger Rear Cover Assembly

$163.99

$

Usually ships in 4-7 days

0

106

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

108

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

111

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

137

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

143

Bad Boy 051-0001-23

15" Fuel Line Assembly

$

$

Currently unavailable

144

Bad Boy 051-2014-23

37" Fuel Line Assembly

$

$

Currently unavailable

157

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

158

Bad Boy 067-2060-50

Left Fuel Tank

$387.99

$

In Stock, only 2 left!

0

159

Bad Boy 067-2070-50

Right Side Console

$249.99

$

Usually ships in 4-7 days

0

164

Bad Boy 070-2301-00

2023 MZ-Avenger 54-60 Frame - Painted

$

$

Currently unavailable

167

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

169

Bad Boy 079-3560-23

2023 Control Panel Assembly

$

$

Currently unavailable

172

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

174

Bad Boy 091-0015-23

2023 EPA Build Date Punch Decal

$1.49

$

Usually ships in 4-7 days

0

180

Bad Boy 091-3017-00

Pump Belt Route Decal-Pump Plate

$5.49

$

Usually ships in 4-7 days

0

183

Bad Boy 091-4060-00

725cc ZT Decal

$9.49

$

Usually ships in 4-7 days

0

185

Bad Boy 091-4077-00

ZT Avenger 724cc Back Plate Decal

$

$

Not available

186

Bad Boy 091-4078-00

ZT Avenger 726cc Back Plate Decal

$5.99

$

Usually ships in 4-7 days

0

190

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy

$7.99

$

Usually ships in 4-7 days

0

143.3

Bad Boy 051-2014-04

Fuel Line 4" Section with Clamps

$

$

Currently unavailable

144.3

Bad Boy 051-2014-04

Fuel Line 4" Section with Clamps

$

$

Currently unavailable

158.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

158.2

Bad Boy 067-0011-00

Pick-Up

$24.99

$

In Stock, only 2 left!

0

158.3

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 19

0

158.4

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

158.5

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 3 left!

0

143.3.1

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

143.3.2

Bad Boy 051-8067-00

4" 1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

144.3.1

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

144.3.2

Bad Boy 051-8067-00

4" 1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0
