ZT Avenger - Bad Boy Zero-Turn Mower (2022) FRONT FORK Parts Diagram

Zero-Turn Mower

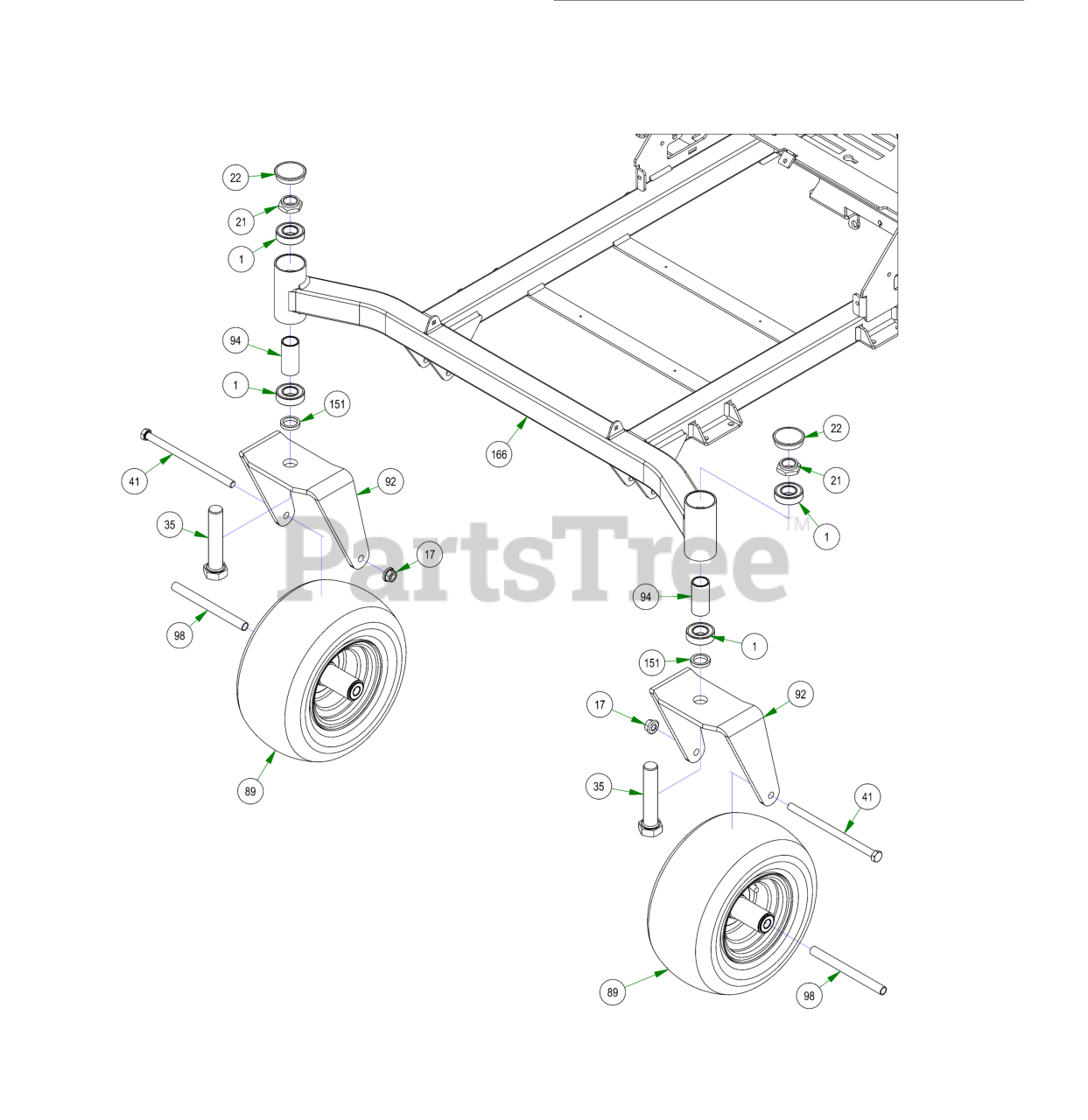

FRONT FORK Parts Diagram

  • Title
1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

22

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 15

0

35

Bad Boy 018-0005-00

1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW

$7.99

$

In Stock, only 4 left!

0

41

Bad Boy 018-0040-00

1/2-13 X 8-1/2 HEX CAP SCREW (GR.5) ZINC

$7.49

$

In Stock, Qty 15

0

89

Bad Boy 022-0007-00

12x6x6 Front Tire & Black Wheel Assembly (Representation Only)

$159.99

$

In Stock, only 4 left!

0

92

Bad Boy 023-0003-00

2017 ZT Front Fork

$41.99

$

In Stock, only 3 left!

0

94

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

98

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

151

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 9

0

166

Bad Boy 070-5422-00

2022 MZ/ZT 54"-60" Frame

$

$

Currently unavailable
