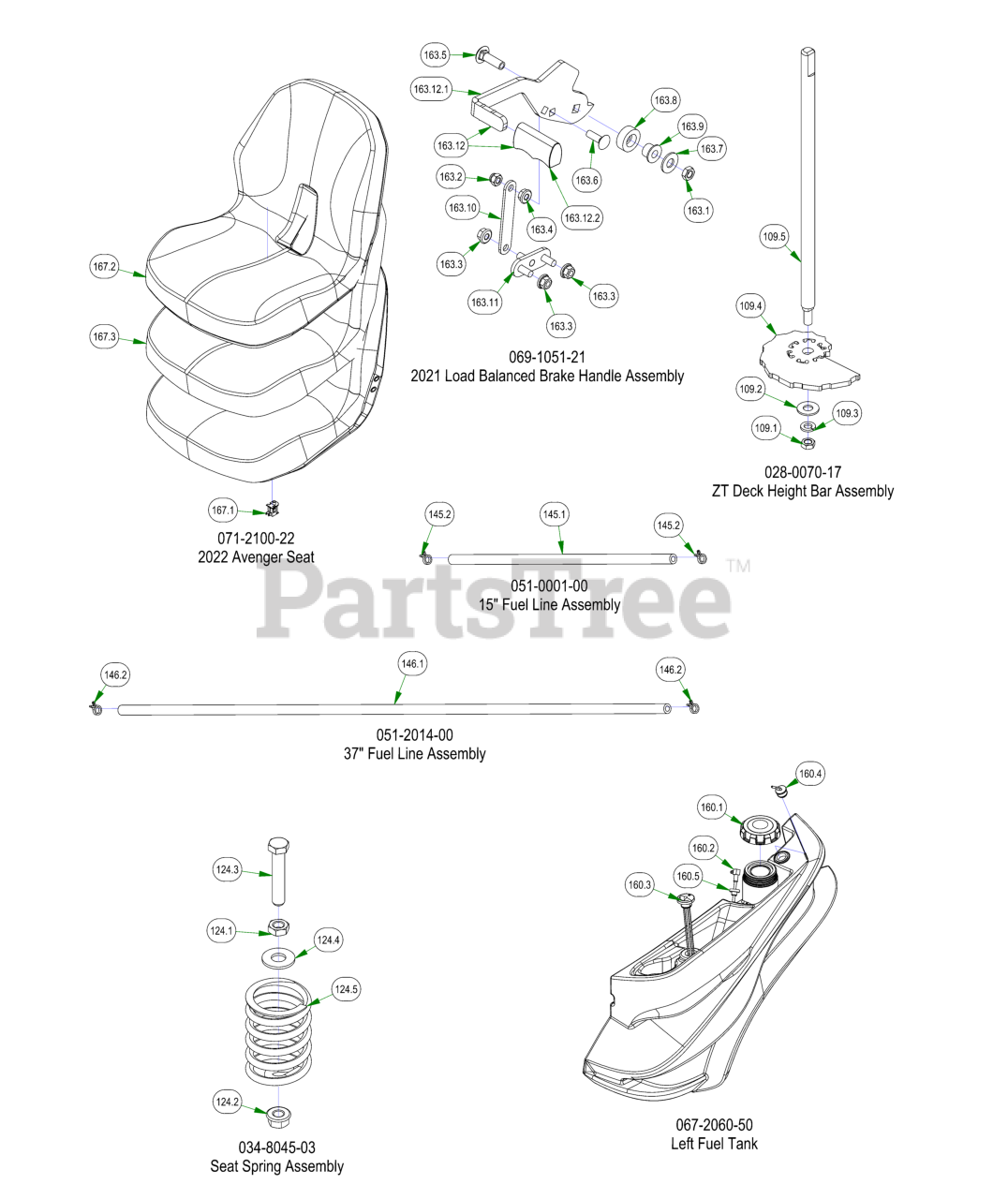

FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title

83

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

91

Bad Boy 022-2015-00

ZT Tire and Rim Assembly 22 x 11 - 10

$331.99

$

Usually ships in 4-7 days

0

109

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

124

Bad Boy 034-8045-03

Seat Spring Assembly

$34.99

$

Usually ships in 4-7 days

0

145

Bad Boy 051-0001-00

15" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

146

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

160

Bad Boy 067-2060-50

Left Fuel Tank

$387.99

$

In Stock, only 2 left!

0

163

Bad Boy 069-1051-21

2021 Load Balanced Brake Handle Assembly

$75.99

$

Usually ships in 4-7 days

0

167

Bad Boy 071-2100-22

2022 Avenger Seat

$604.99

$

Usually ships in 4-7 days

0

109.1

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

109.2

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

109.3

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

109.4

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

109.5

Bad Boy 028-0014-00

2017 Deck Height Dial Rod ZT

$33.99

$

Usually ships in 4-7 days

0

124.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

124.2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

124.3

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

124.4

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

124.5

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

145.1

Bad Boy 051-8067-00

1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

145.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

146.1

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

146.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

160.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

160.2

Bad Boy 067-0011-00

Pick-Up

$24.99

$

In Stock, only 2 left!

0

160.3

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 20+

0

160.4

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

160.5

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 3 left!

0

163.1

Bad Boy 013-0012-00

3/8-16 HEX JAM 2-WAY REVERSIBLE CENTER LOCKNUT ZINC

$3.49

$

In Stock, Qty 5

0

163.2

Bad Boy 013-8042-00

5/16-18 NYLON INSERT CAP LOCKNUT ZINC (BLK CAP)

$1.49

$

Usually ships in 4-7 days

0

163.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

163.4

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

163.5

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

163.6

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

163.7

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

163.8

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

163.9

Bad Boy 032-5053-00

.377 ID X .625 OD X .500 HGT X .880 FLNG DIA X .060 FLNG THK

$3.49

$

In Stock, only 2 left!

0

167.1

Bad Boy 071-1004-00

Seat Switch

$

$

Not available

167.2

Bad Boy 071-2108-00

Avenger Seat Cover

$136.99

$

Usually ships in 4-7 days

0

167.3

Bad Boy 071-2110-00

Water Proofing Protection

$

$

Currently unavailable

163.10

Bad Boy 039-0170-00

Brake Cable Extension Plate

$11.99

$

Usually ships in 4-7 days

0

163.11

Bad Boy 039-0171-00

Brake Load Balancer Lower Weldment

$11.99

$

Usually ships in 4-7 days

0

163.12

Bad Boy 069-1051-00

Load Balanced Brake Handle with Grip

$68.99

$

Usually ships in 4-7 days

0

163.12.1

Bad Boy 069-3000-00

Switch Relocation Brake Handle

$

$

Currently unavailable

163.12.2

Bad Boy 069-3010-00

Brake Handle Rubber

$19.99

$

Usually ships in 4-7 days

0
