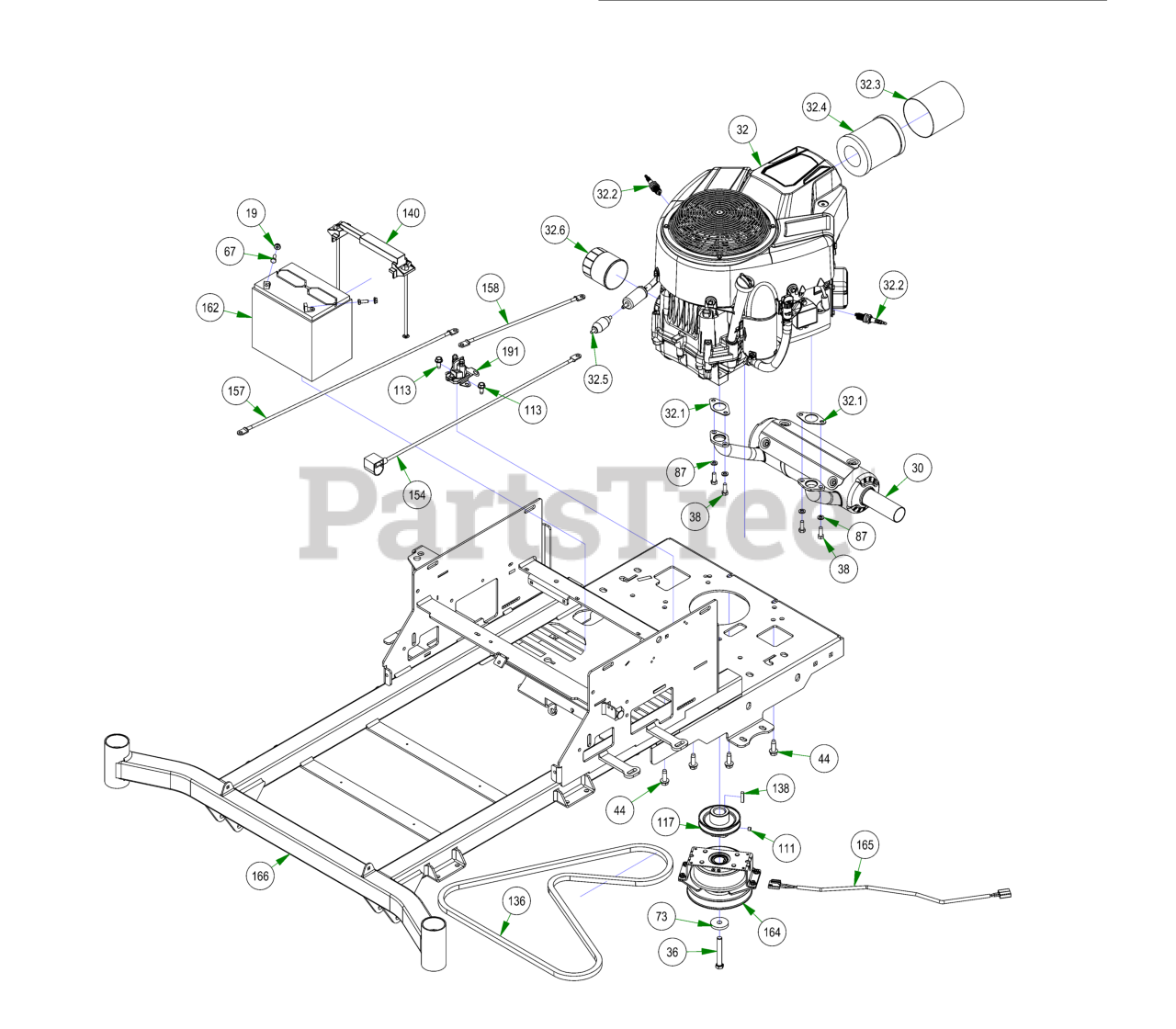

ZT Avenger - Bad Boy Zero-Turn Mower (2022) ENGINE - BRIGGS 25hp Cxi Parts Diagram

Zero-Turn Mower

ENGINE - BRIGGS 25hp Cxi Parts Diagram

  • Title

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

30

Bad Boy 015-0057-00

2017 Compact Outlaw Exhaust 810 Vanguard

$193.99

$

Usually ships in 4-7 days

0

32

Bad Boy 015-0512-00

Vanguard 25hp CXI with out Oil Filter 1" Shaft ZT Avenger

$

$

Not available

36

Bad Boy 018-0007-21

7/16-20x3” Hex Bolt GR 8 W/ Patch

$3.49

$

Usually ships in 4-7 days

0

38

Bad Boy 018-0017-00

Torx Bolt-Exhaust

$6.49

$

Usually ships in 4-7 days

0

44

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS

$1.99

$

In Stock, Qty 11

0

67

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

73

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

87

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

111

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

113

Bad Boy 030-7042-00

5/16-18 X 3/4HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

117

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 4 left!

0

136

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

138

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

140

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

154

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

157

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

158

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

162

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

164

Bad Boy 070-0055-00

Clutch

$319.99

$

Usually ships in 4-7 days

0

165

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

166

Bad Boy 070-5422-00

2022 MZ/ZT 54"-60" Frame

$

$

Currently unavailable

191

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 12

0

32.1

Bad Boy 015-0077-01

Exhaust Gasket

$7.99

$

In Stock, only 2 left!

0

32.2

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

32.3

Bad Boy 063-1000-00

pre-Cleaner for Vanguard CXI Engine

$13.99

$

In Stock, only 3 left!

0

32.4

Bad Boy 063-1005-00

Air Filter for Vanguard CXI Engine

$

$

Not available

32.5

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

32.6

Bad Boy 063-8018-00

Oil Filter

$22.99

$

In Stock, Qty 19

0
