ZT Avenger - Bad Boy Zero-Turn Mower (2021) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

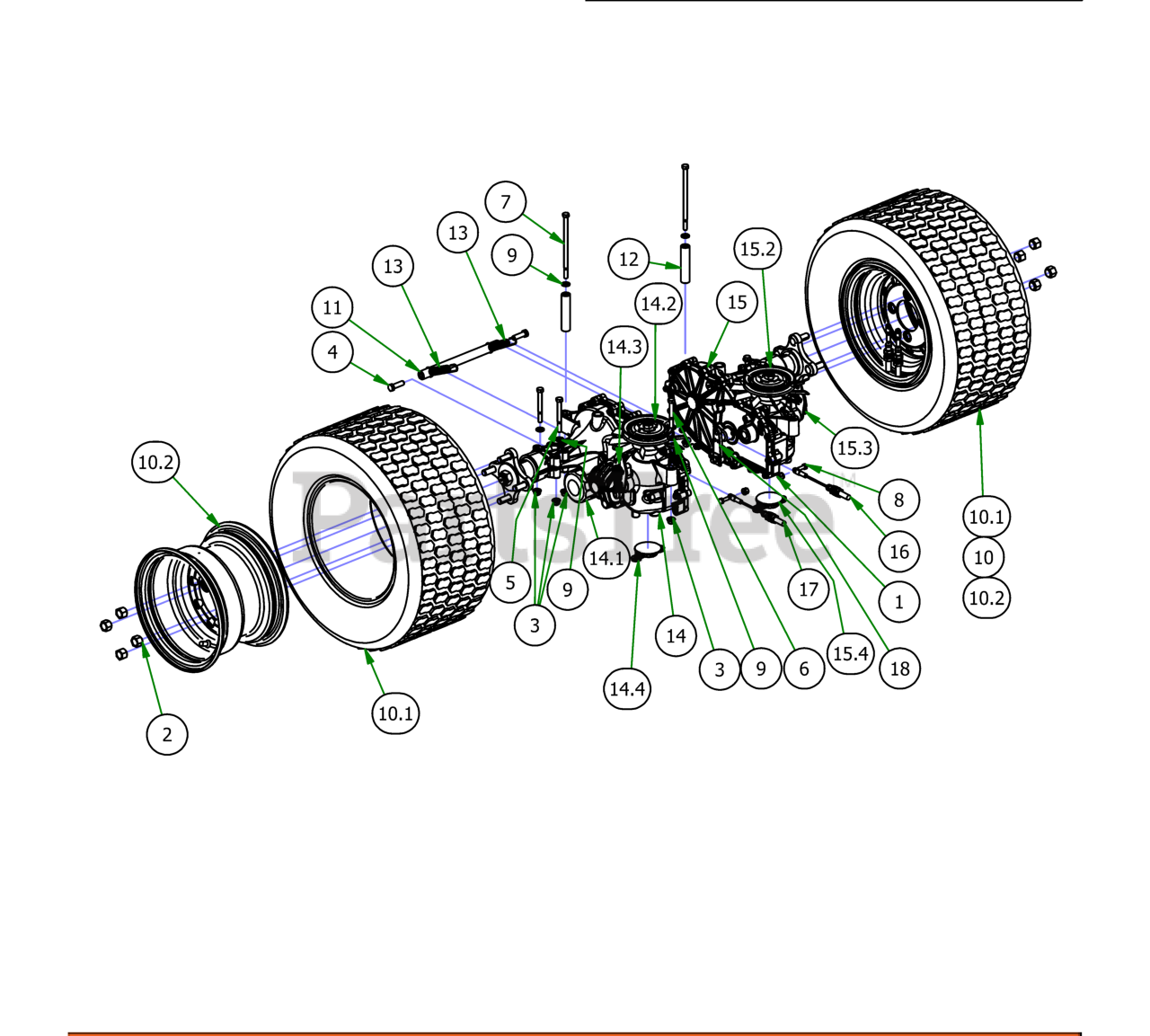

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

3

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

4

Bad Boy 018-3000-00

3/8'' x2'' Hex Bolt

$1.49

$

In Stock, Qty 8

0

5

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-5355-00

5/16" x 6" Bolt

$2.99

$

In Stock, only 3 left!

0

8

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 3 left!

0

9

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 022-0008-00

ZT Tire and Rim Assembly 22 x 11 - 10

$303.99

$

Usually ships in 4-7 days

0

11

Bad Boy 025-0017-00

2017 Transaxle Spacer-ZT

$14.99

$

In Stock, Qty 6

0

12

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

13

Bad Boy 034-1026-00

Brake Return Spring

$15.99

$

In Stock, only 3 left!

0

14

Bad Boy 050-5050-02

2021 RH 2800 Transaxle

$797.99

$

Usually ships in 4-7 days

0

15

Bad Boy 050-5060-02

2021 LH 2800 Transaxle

$797.99

$

Usually ships in 4-7 days

0

16

Bad Boy 064-3050-21

2021 Load Balanced Brake Cable 1

$60.99

$

In Stock, only 4 left!

0

17

Bad Boy 064-3051-21

2021 Load Balanced Brake Cable 2

$60.99

$

Usually ships in 4-7 days

0

10.1

Bad Boy 022-0012-00

ZT Tire Only 22x11-10

$166.99

$

Usually ships in 4-7 days

0

10.2

Bad Boy 022-0011-00

ZT Wheel Only 22x11-10

$105.99

$

Usually ships in 4-7 days

0

14.1

Bad Boy 063-1050-00

Filter

$24.99

$

In Stock, Qty 20+

0

14.2

Bad Boy 050-2070-00

Fan/Pulley Kit for ZT

$90.99

$

In Stock, only 4 left!

0

14.3

Bad Boy 034-9080-00

Transaxle Spring

$15.99

$

In Stock, Qty 7

0

14.4

Bad Boy 050-2071-00

ZT Transaxle Charge Plate/With O'Ring

$104.99

$

Usually ships in 4-7 days

0

15.1

Bad Boy 063-1050-00

Filter

$24.99

$

In Stock, Qty 20+

0

15.2

Bad Boy 050-2075-00

Fan/Pulley Kit for ZT

$75.99

$

In Stock, Qty 8

0

15.3

Bad Boy 034-9080-00

Transaxle Spring

$15.99

$

In Stock, Qty 7

0

15.4

Bad Boy 050-2071-00

ZT Transaxle Charge Plate/With O'Ring

$104.99

$

Usually ships in 4-7 days

0
