ZT Avenger - Bad Boy Zero-Turn Mower (2021) TANKS & REAR COVER (CONT.) Parts Diagram

Zero-Turn Mower

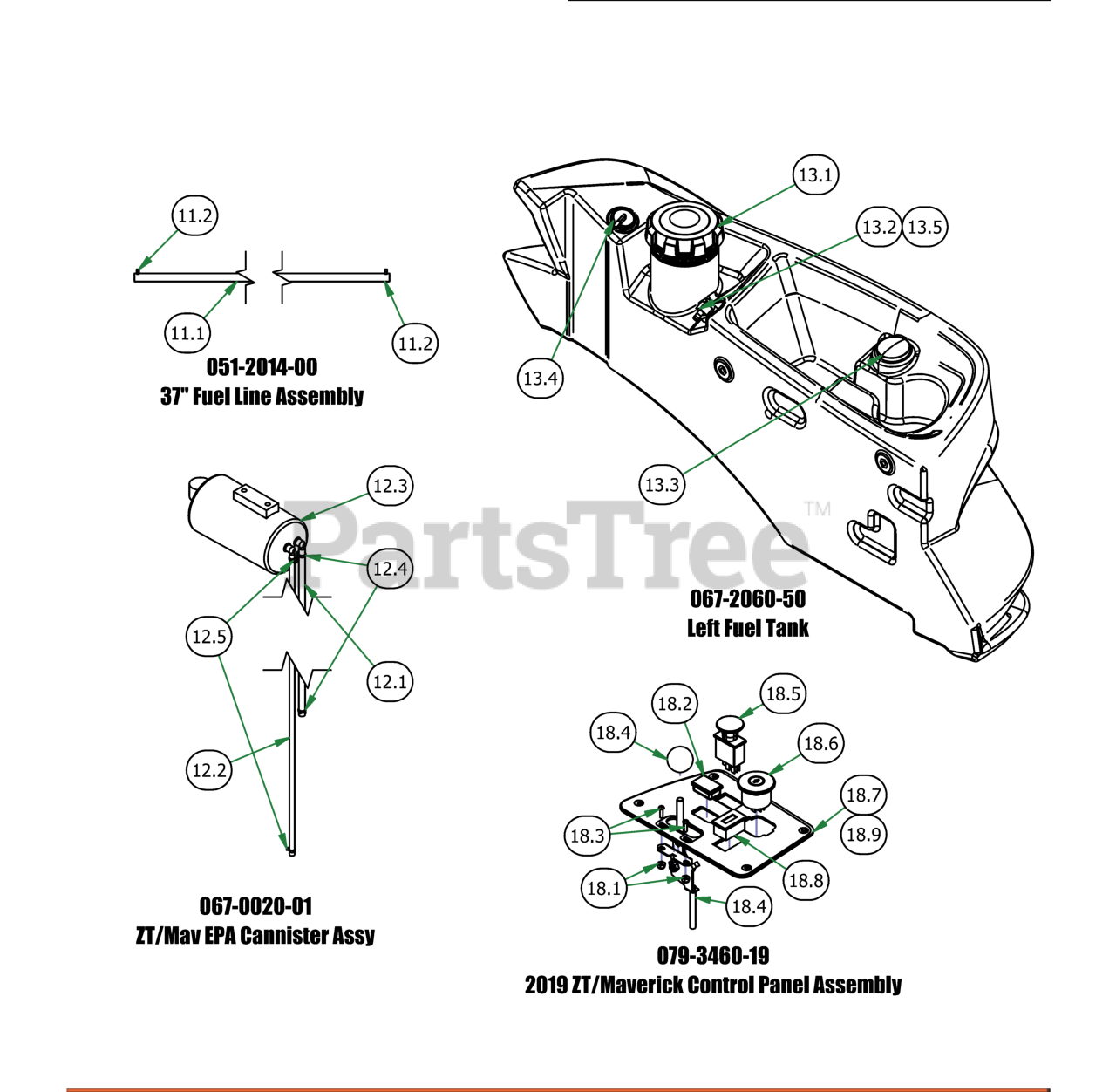

TANKS & REAR COVER (CONT.) Parts Diagram

  • Title

11.1

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

11.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

12.1

Bad Boy 051-2020-01

1/4" Vinyl Tubing, 46" Long

$13.99

$

Usually ships in 4-7 days

0

12.2

Bad Boy 051-2025-02

3/16" Vinyl Tubing, 55" Long

$13.99

$

Usually ships in 4-7 days

0

12.3

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 3 left!

0

12.4

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

12.5

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

13.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

13.2

Bad Boy 067-0011-00

Pick-Up

$24.99

$

In Stock, only 2 left!

0

13.3

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 19

0

13.4

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

13.5

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 3 left!

0

18.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

18.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

18.4

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

18.5

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

18.6

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

18.7

Bad Boy 079-3460-00

Control Panel

$25.99

$

Usually ships in 4-7 days

0

18.8

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

18.9

Bad Boy 091-0338-18

2018 MZ/Magnum/ZT/Maverick Control Panel Decal

$15.99

$

Usually ships in 4-7 days

0

18.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bold

$0.99

$

In Stock, Qty 5

0
