ZT Avenger - Bad Boy Zero-Turn Mower (2021) FRONT FORK ASSEMBLY Parts Diagram

Zero-Turn Mower

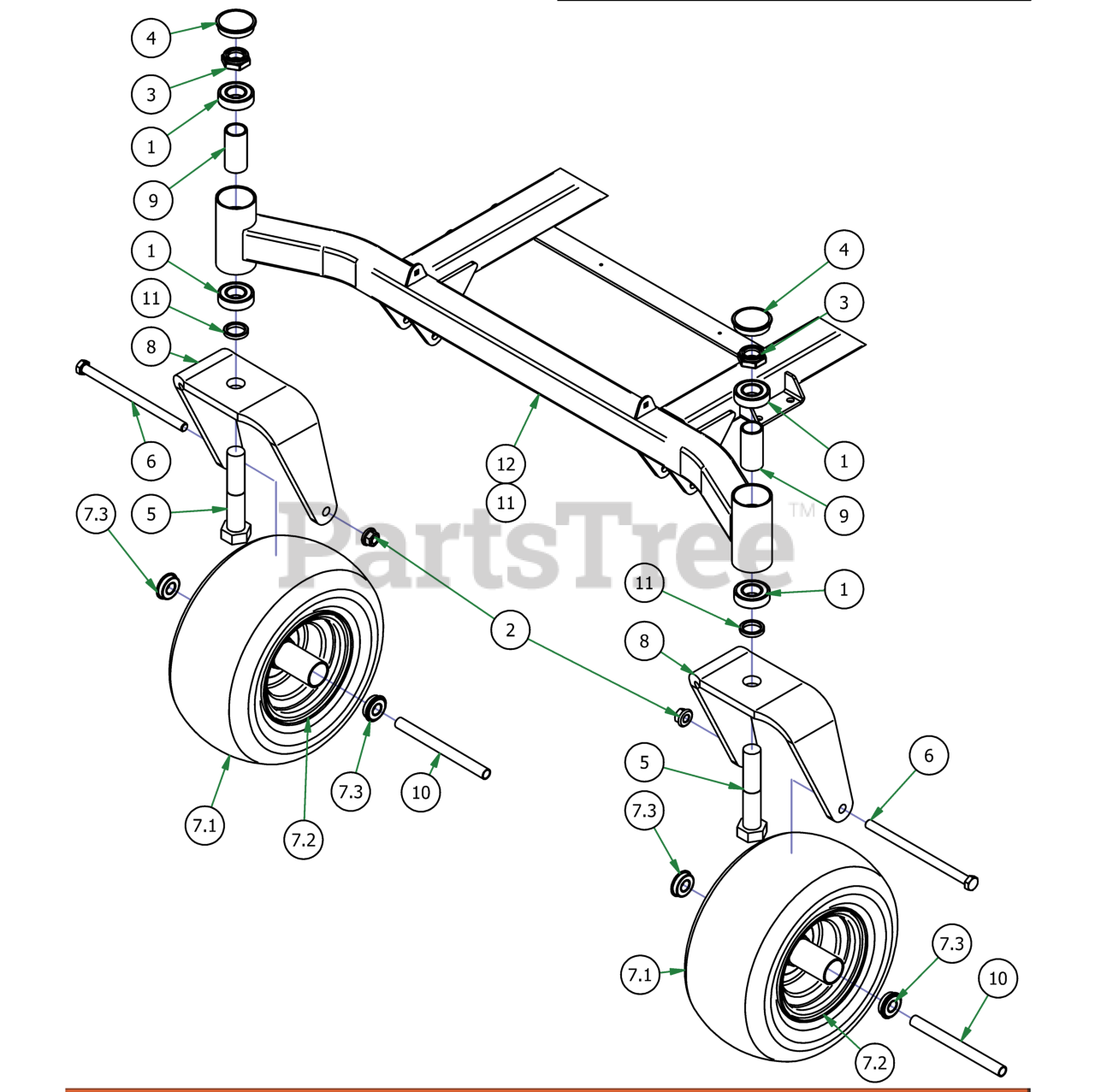

FRONT FORK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

4

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 15

0

5

Bad Boy 018-0005-00

1-14 x 5 Hex Bolt Grade 8 Zinc Yellow

$7.99

$

In Stock, only 4 left!

0

6

Bad Boy 018-0040-00

1/2" x 8 1/2 GR 5 Hex Bolt

$7.49

$

In Stock, Qty 15

0

7

Bad Boy 022-0007-00

12x6-6 Black Tire and Wheel Assembly

$159.99

$

In Stock, only 4 left!

0

8

Bad Boy 023-0003-00

2017 ZT Front Fork

$41.99

$

In Stock, only 3 left!

0

9

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

10

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

11

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

12

Bad Boy 070-5420-00

2017 MZ/ZT 54"-60" Frame

$

$

Not available

7.1

Bad Boy 022-0010-00

12 x 6 - 6 Front Tire

$83.99

$

In Stock, only 2 left!

0

7.2

Bad Boy 022-0009-00

Front Tire Rim

$90.99

$

Usually ships in 4-7 days

0

7.3

Bad Boy 022-7009-00

Ball Bearing w/Retainer, 99502H-NR, .625 Bore x 1.375 OD x .4375 Width

$14.99

$

In Stock, Qty 20+

0
