ZT Avenger - Bad Boy Zero-Turn Mower (2021) DECK HEIGHT CONTROL ASSEMBLY (CONT.) Parts Diagram

Zero-Turn Mower

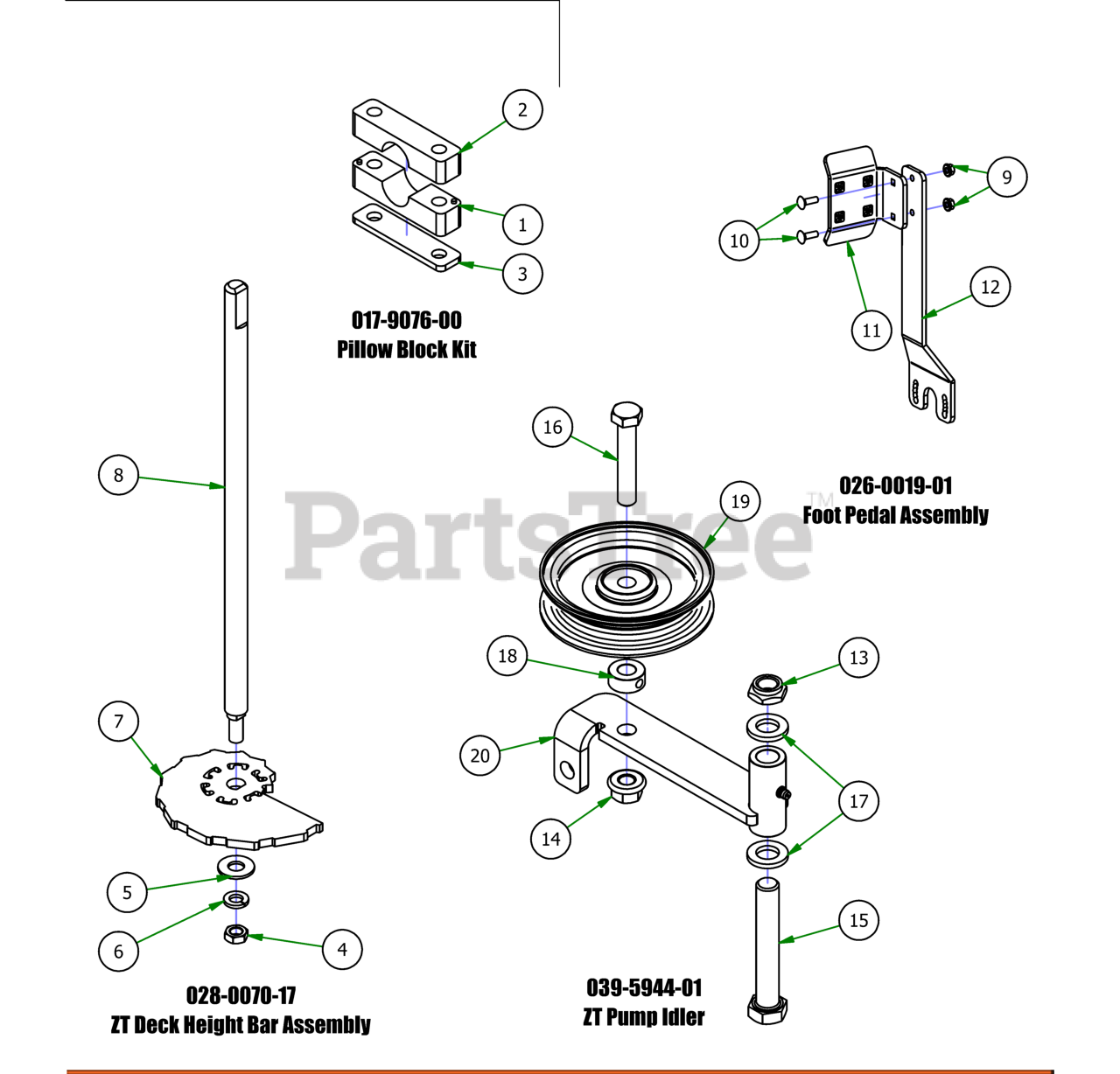

DECK HEIGHT CONTROL ASSEMBLY (CONT.) Parts Diagram

  • Title

1

Bad Boy 017-9077-00

Pillow Block MZ male

$22.99

$

Usually ships in 4-7 days

0

2

Bad Boy 017-9078-00

Pillow Block MZ female

$22.99

$

Usually ships in 0 days

0

3

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

5

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

6

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

7

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

8

Bad Boy 028-0014-00

2017 Deck Height Dial Rod ZT

$33.99

$

Usually ships in 4-7 days

0

9

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

10

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

11

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

12

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

14

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

16

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

17

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

18

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

19

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

20

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, only 3 left!

0
