ZT Avenger - Bad Boy Zero-Turn Mower (2021) 54" DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

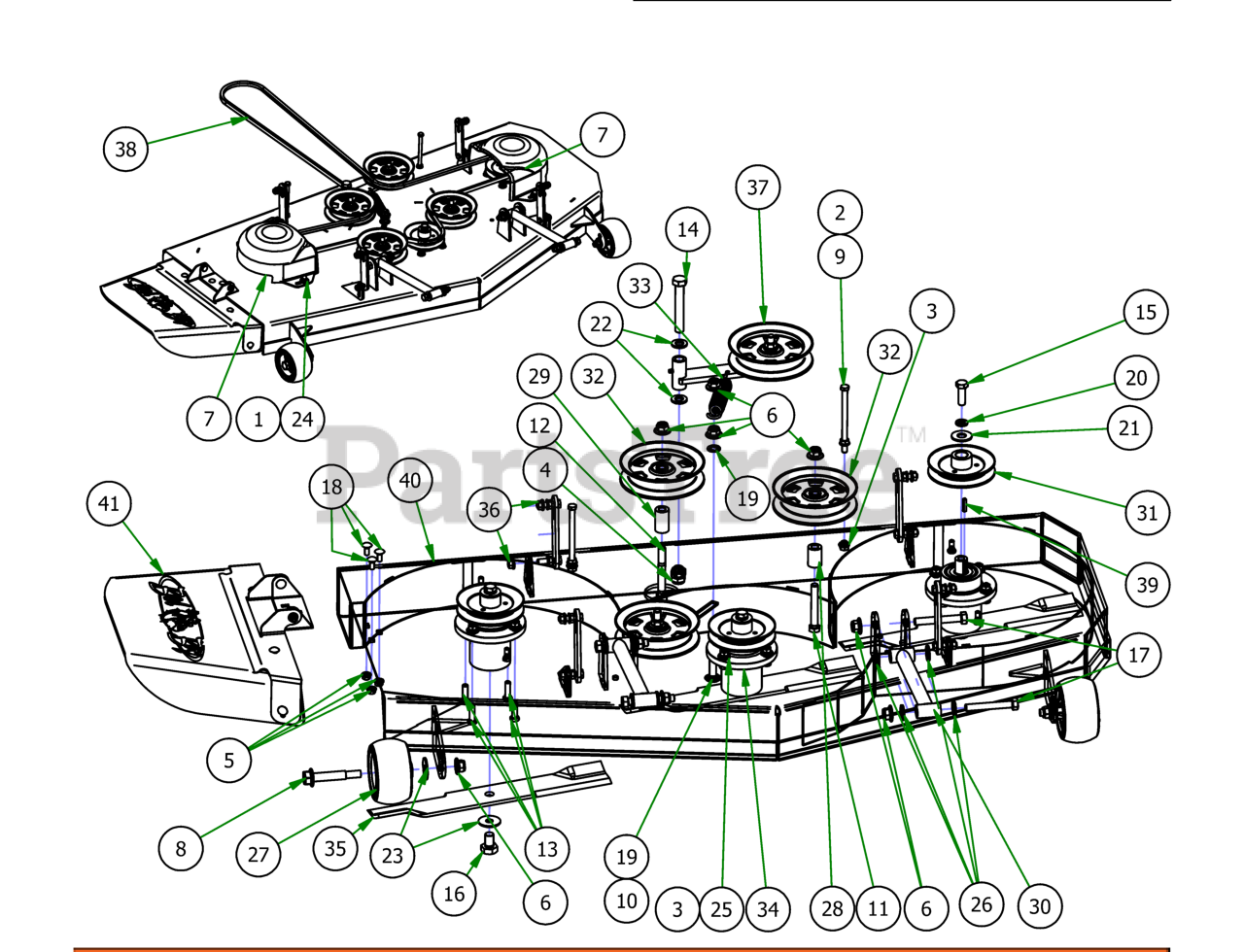

54" DECK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-0004-00

Acorn nut-pulley Cover

$3.49

$

In Stock, Qty 8

0

2

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 014-4000-00

Pulley Cover

$30.99

$

In Stock, only 4 left!

0

8

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-0065-00

3/8-16 X 5-1/4 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, Qty 6

0

12

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, Qty 6

0

13

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

14

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, Qty 8

0

15

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 20+

0

16

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 1 left!

0

18

Bad Boy 018-8062-00

5/16-18 x 3/4 Carriage Bolt

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 019-0007-00

.517 Square Hole Round Washer

$1.49

$

In Stock, only 2 left!

0

20

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

21

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

23

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

24

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, Qty 6

0

25

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

26

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

27

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

28

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

29

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

30

Bad Boy 028-0004-00

MZ/ZT Deck Locator

$

$

Currently unavailable

31

Bad Boy 033-4890-00

54 MZ Spindle Pulley

$33.99

$

In Stock, Qty 13

0

32

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

33

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

34

Bad Boy 037-2000-00

Spindle Assembly-MZ

$232.99

$

In Stock, Qty 20+

0

35

Bad Boy 038-0001-00

54" Fusion Blade for ZT/Mav/Outlaw/Revolt

$24.99

$

In Stock, Qty 20+

0

36

Bad Boy 039-2127-17

Deck Hanger Assembly

$16.99

$

In Stock, only 3 left!

0

37

Bad Boy 039-6945-18

2017 54"/48" Deck Idler Assembly

$75.99

$

In Stock, only 2 left!

0

38

Bad Boy 041-1560-00

B155.75 Deck Belt

$94.99

$

In Stock, Qty 20+

0

39

Bad Boy 042-0010-00

3/16 X 1 SQ MACHINERY KEY 1018 STL ZINC

$4.99

$

In Stock, Qty 19

0

40

Bad Boy 060-2417-00

2017 54" MZ Magnum Deck

$683.99

$

Usually ships in 4-7 days

0

41

Bad Boy 210-6015-98

MZ Discharge Chute Assembly

$166.99

$

In Stock, only 4 left!

0
