ZT 60 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kawasaki Control Equipment Parts Diagram

60" Zero-Turn Mower

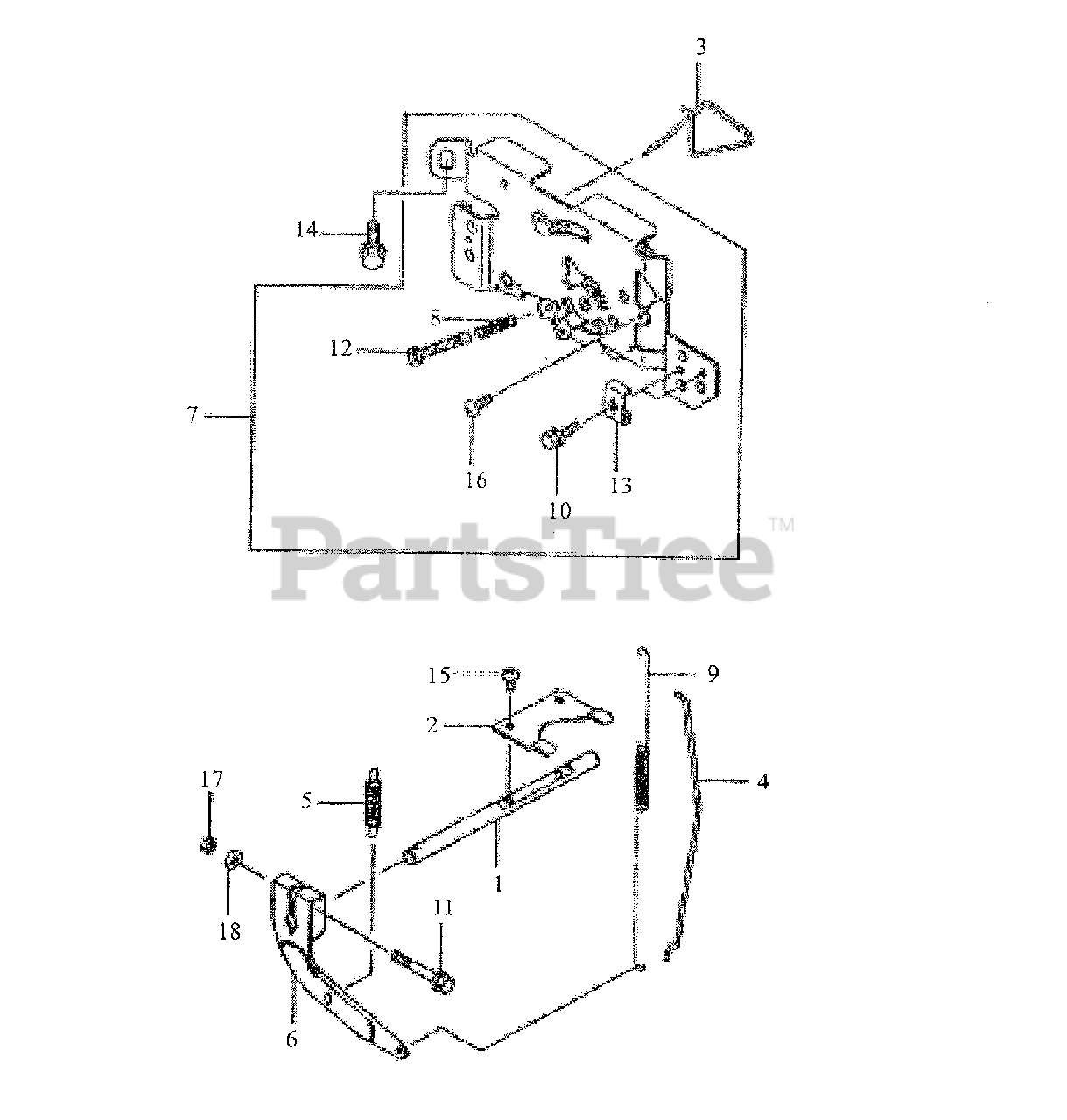

Kawasaki Control Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7011

Shaft

$12.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-13271-7018

Plate
(Superseded to KM-13271-7032)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-16169-7003

Link-Choke
(Superseded to KM-16169-0009)

$3.49

$

In Stock, only 4 left!

0

4

Cub Cadet KM-16171-7004

Link
(Superseded to KM-16171-0040)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KM-39129-7004

Spring-Governor

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-49103-7002

Arm-Governor
(Superseded to KM-49103-7004)

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-49113-7007

Panel-Comp-Control
(Superseded to KM-49113-7017)

$27.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, only 2 left!

0

9

Cub Cadet KM-92145-7009

Spring
(Superseded to KM-92145-7034)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92150-2182

Bolt, 5 x 18 mm

$0.99

$

In Stock, Qty 10

0

11

Cub Cadet KM-92151-7006

Bolt, 6 x 30mm

$

$

Not available

12

Cub Cadet KM-92151-7014

Bolt 5 x 30 mm

$1.49

$

In Stock, Qty 5

0

13

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, only 3 left!

0

14

Cub Cadet KM-130G0612

Bolt Flange
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-214B0408

Screw pan
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 5

0

16

Cub Cadet KM-220B0412

Screw

$

$

Not available

17

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 16

0

18

Cub Cadet KM-411B0600

Washer-Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0
