ZT 60 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Hydro Pump Assembly Parts Diagram

60" Zero-Turn Mower

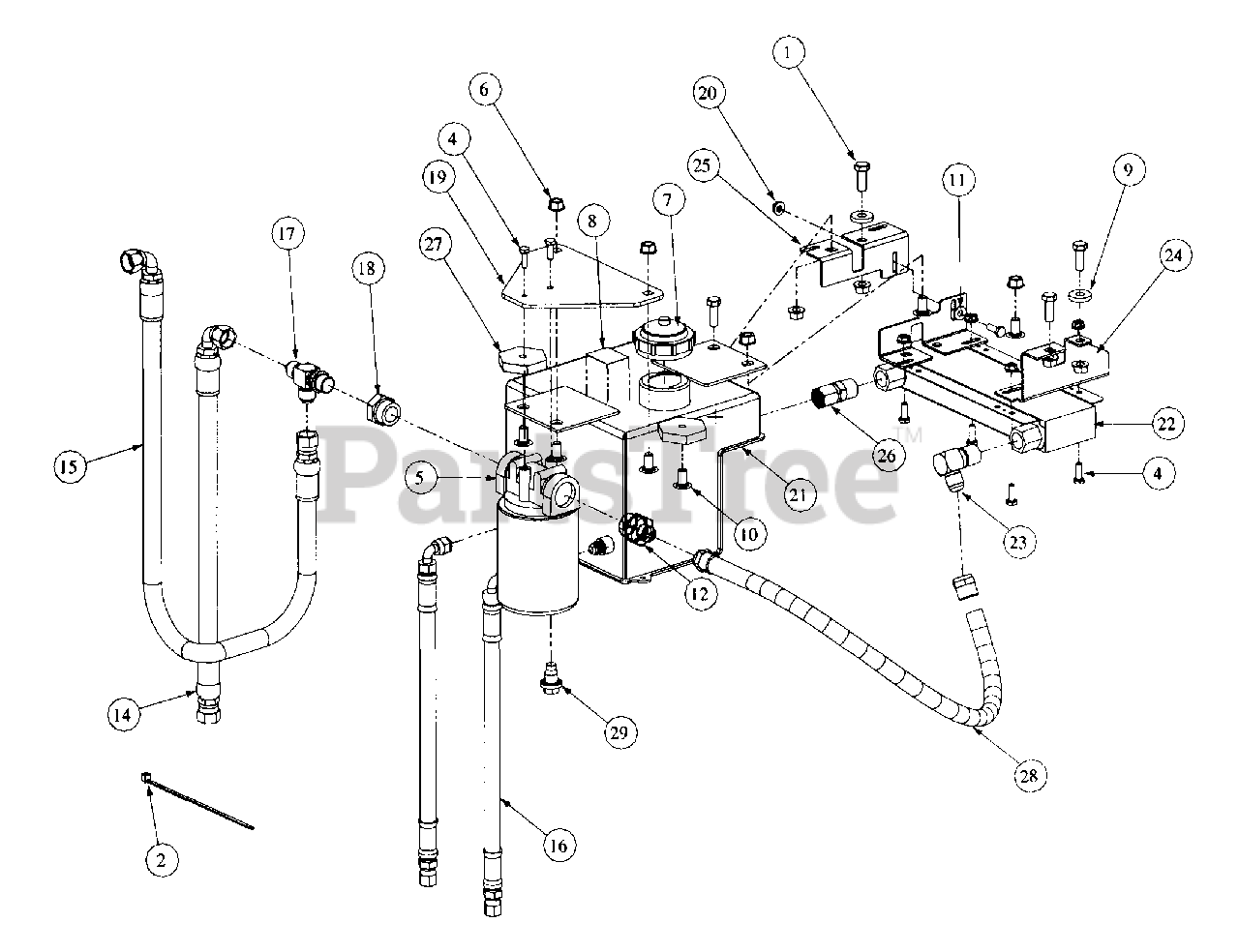

Hydro Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, 1

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012470

Cable Tie, 3/16 x .05 x 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

?3

Cub Cadet 00012529

Sleeve, 1.25 Reel Return Line (Feet)

$

$

Not available

4

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00017665

Filter Head, 3/4
(Superseded to 00017665P)

Note: Includes:

$

$

Not available

Cub Cadet 01004166

Filter Element, 33 micron

$50.99

$

In Stock, only 4 left!

0

6

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00031994

Decal Oil Only, 20W50

$

$

Not available

9

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75 LG
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01000600

Flatwasher, 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000647

Straight Connector, 1/2 x 3/4

$

$

Not available

?13

Lubricant Hydro Gallons

$

$

Not available

14

Cub Cadet 01001740

Hydraulic Hose Filter, Right

$

$

Not available

15

Cub Cadet 01001741

Hydraulic Hose Filter, Left

$

$

Not available

16

Cub Cadet 01001742

Hydraulic Hose, Pump to Tank

$

$

Not available

17

Cub Cadet 01001743

Tee Fitting, 1/2 x 1/2 x 3/4

$

$

Not available

18

Cub Cadet 01001974

Adapter, 1/2 x 3/4

$

$

Not available

19

Cub Cadet 01004912

Mount Plate Oil Filter
(Superseded to 01001650)

$

$

Not available

20

Cub Cadet 01002766

Hexflange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 01004914

Hydraulic Tank Assembly

$

$

Not available

22

Cub Cadet 01002968

Heat Exchange, 1.5 x 11 x 2.77 LG

$

$

Currently unavailable

23

Cub Cadet 01002971

Elbow Fitting, 1/2 NTPF x 1/2

$

$

Not available

24

Cub Cadet 01004915

Mount Bracket, RH Heat Exchange

$

$

Not available

25

Cub Cadet 01004916

Mount Bracket, LH Heat Exchange

$

$

Not available

26

Cub Cadet 01002974

Swivel Connector Fitting, 1/2 NPTF x 1/2

$

$

Not available

27

Cub Cadet 01003820

Spacer, 2.000 Hex x .41 LG

$

$

Not available

28

Cub Cadet 01004160

Hose Assembly, Oil Cooler to Filter

$

$

Not available

29

Cub Cadet 01004192

Oil Pan Drain Plug, w/Seal
(Superseded to 738-0940)

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Drive System Fluid Plus, Quart
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3121

Drive System Fluid Plus, Gallon

$77.99

$

In Stock, only 2 left!

0

$

$

Not available
