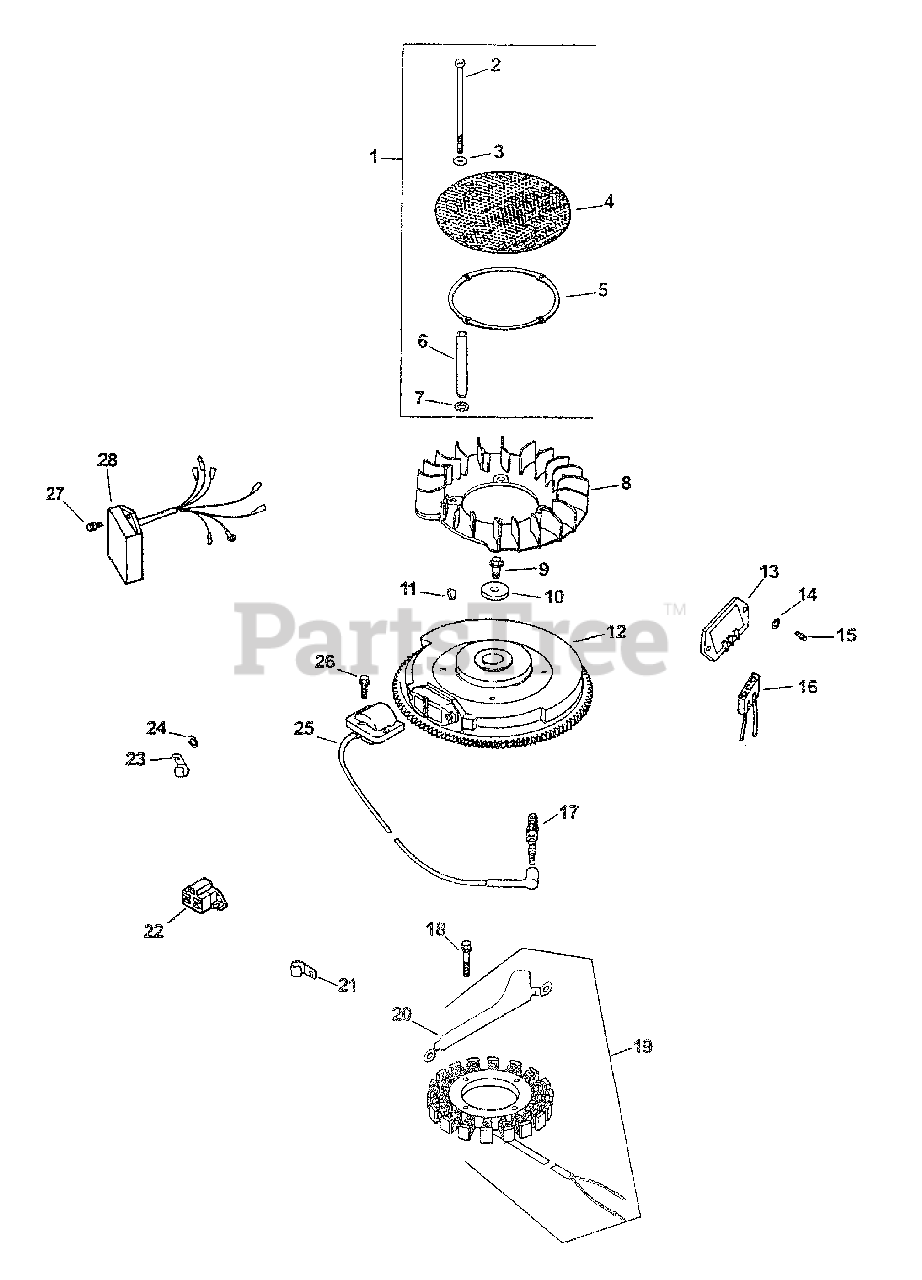

ZT 54 (53AB5B8K100) - Cub Cadet 54" Zero-Turn Mower Kohler Ignition / Charging Parts Diagram

54" Zero-Turn Mower

Kohler Ignition / Charging Parts Diagram

  • Title

1

Cub Cadet KH-24-755-79

Kit, Chopper Screen

$

$

Not available

2

Cub Cadet KH-M-603100

Screw, Hex Cap

$

$

Not available

3

Cub Cadet KH-X-25-53

Washer, Plain 1/4"

$

$

Not available

4

Cub Cadet KH-24-162-25

Screen, Grass
(Superseded to KH-24-162-41-S)

$24.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-24-141-06

Ring, Support
(Superseded to KH-25-141-08-S)

$5.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-112-14

Spacer, Grass Screen

$

$

Not available

7

Cub Cadet KH-24-468-11

Washer, Spring 10 mm

$

$

Not available

8

Cub Cadet KH-24-157-03

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-086-14

Screw, Hex Flange
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet KH-12-468-03

Washer, Plain 3/8"

$

$

Not available

11

Cub Cadet KH-X-42-15

Key

$

$

Not available

12

Cub Cadet KH-24-025-08-S

Flywheel
(Superseded to KH-24-025-57-S)

$372.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-403-03

Rectifier - Regulator
(Superseded to KH-41-403-10-S)

$

$

Not available

14

Cub Cadet KH-X-25-92

Washer, Plain 3/16"

$

$

Not available

15

Cub Cadet KH-24-086-18

Screw, Phillips Head 11-16 x 7/8

$

$

Not available

16

Cub Cadet KH-236602-S

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

17

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-M-548025-S

Screw, Hex Cap
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

19

Cub Cadet KH-54-755-09-S

Kit, 15 Amp Stator
(Superseded to KH-237878)

$

$

Not available

20

Cub Cadet KH-24-126-71

Bracket, Stator Wire
(Superseded to KH-24-126-139-S)

$15.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

22

Cub Cadet KH-25-155-06

Connector (5 Contact)

$

$

Not available

23

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

24

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

25

Cub Cadet KH-24-584-15

Module, Ignition
(Superseded to KH-24-584-36-S)

$102.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-M-561025

Screw, Thread forming

$

$

Not available

27

Cub Cadet KH-M-448010

Screw, Hex Flange

$

$

Not available

28

Cub Cadet KH-24-584-10-S

Module, Speed Advance

$

$

Not available

Cub Cadet KH-12-454-03-S

Tie, Wire

Note: Not Shown

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-28

Lead, Black (4" - 18 Gauge)
(Superseded to KH-24-518-12-S)

Note: Not Shown

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-22-11

Washer, Plain 1/4"

Note: Not Shown

$

$

Not available

Cub Cadet KH-25-086-43

Screw, Set

Note: Not Shown

$

$

Not available

Cub Cadet KH-54-755-02-S

Kit, Wiring Harness

Note: Not Shown

$150.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-15-452-01-S

Terminal

Note: Not Shown

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-468-1-S

Tie, Cable

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-176-50

Harness, Wiring
(Superseded to KH-24-176-150-S)

Note: Not Shown

$44.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-09

Lead, Green (19-1/2" - 18 Gauge)

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-176-41

Lead, Duplex

Note: Not Shown

$

$

Not available
