ZT-54 (17AF2ACK897) - Columbia 54" Zero-Turn Mower (2013) Label Map Columbia ZT54 Parts Diagram

54" Zero-Turn Mower

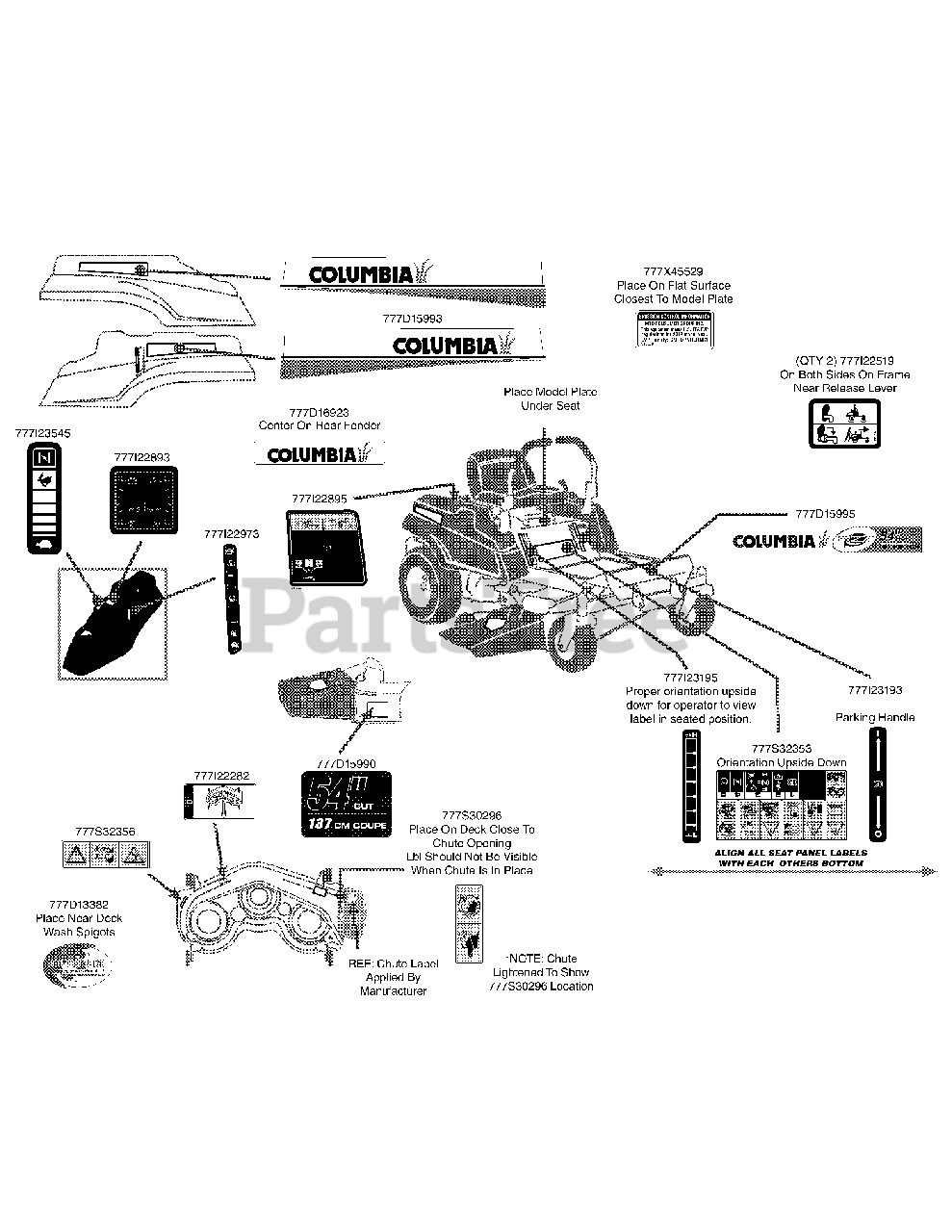

Label Map Columbia ZT54 Parts Diagram

  • Title
777D15994

MTD 777D15994

LABEL-COLUMBIA RZT LH POD

$

$

Not available

777D15993

MTD 777D15993

LABEL-COLUMBIA RZT RH POD

$

$

Not available

777D16923

MTD 777D16923

LABEL-COLUMBIA FENDER

$

$

Not available

777I23545

MTD 777I23545

LABEL-THROT/CHOKE LH POD CAN

$

$

Not available

777I22893

MTD 777I22893

LABEL-HOUR METER LH POD
(Superseded to 777I25143)

$17.99

$

Usually ships in 3-6 days

0

777I22973

MTD 777I22973

LABEL-FUEL LEVEL LH POD

$4.49

$

Usually ships in 3-6 days

0

777D13382

MTD 777D13382

LABEL-DECK WASH

$

$

Not available

777S32356

MTD 777S32356

LABEL:RIDER SAFETY

$5.99

$

Usually ships in 3-6 days

0

777I22282

MTD 977I22282

LABEL-BELT ROUTE

$20.99

$

In Stock, only 4 left!

0

777D15990

MTD 777D15990

LABEL-54"CUT/137 CM

$

$

Not available

777S30296

MTD 777S30296

LABEL:RIDER DECK:

$6.49

$

Usually ships in 3-6 days

0

777I23195

MTD 777I23195

LABEL-HANDLE HEIGHT

$

$

Not available

777S32353

MTD 777S32353

LABEL-RDR SAFETY

$

$

Not available

777I23193

MTD 777I23193

LABEL-PARK BRAKE

$

$

Not available

777D15995

MTD 777D15995

LABEL-COLUMBIA 54" FRNT FRAME

$

$

Not available

777I22519

MTD 777I22519

LABEL-TRANSMSN RELEASE

$

$

Not available

777X45529

MTD 777X45529

LABEL-RDR EMISSIONS

$

$

Not available
