ZT-54 (17AF2ACK897) - Columbia 54" Zero-Turn Mower (2013) Front Axle & Wheels 50 & 54-Inch Parts Diagram

54" Zero-Turn Mower

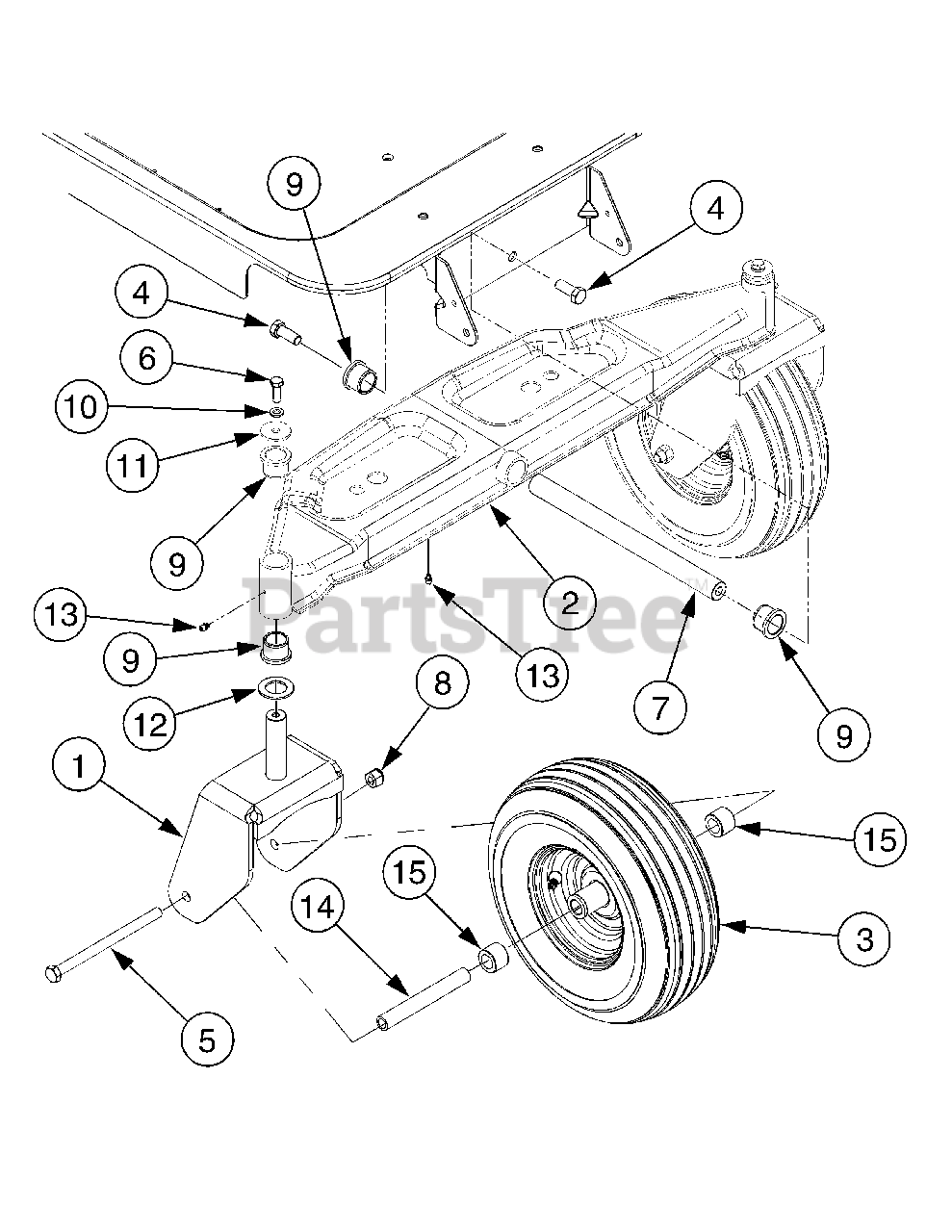

Front Axle & Wheels 50 & 54-Inch Parts Diagram

  • Title

1

MTD 603-04370A

Bracket, Caster Wheel

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04370A-0638

Caster Wheel Yoke, Red - MTD/TROY-BILT RED (0638)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-4021

Caster Wheel Yoke, Yellow - CUB YELLOW 2 (4021)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-0606

Caster Wheel Yoke - MAJESTIC ORANGE (0606)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-0650

Caster Wheel Yoke, Red - RED METALLIC (0650)

$97.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-0691

Caster Wheel Yoke - BLACK JACK (0691)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-4015

Caster Wheel Yoke - FIRE RED (4015)

$97.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-4038

Caster Wheel Yoke - DAY ORANGE (4038)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-0709

Caster Wheel Yoke - MASTERCRAFT GREEN (0709)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-0716

YOKE-CASTER WHEEL - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

MTD 603-04370A-4044

YOKE-CASTER WHEEL - CRAFTSMAN RED (4044)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

2

MTD 603-04385A

Axle, Front Pivot

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04385A-0606

AXLE ASM-FRONT PIV - MAJESTIC ORANGE (0606)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-0638

Front Axle Pivot Assembly, Red - MTD/TROY-BILT RED (0638)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-0650

AXLE ASM-FRONT PIV - RED METALLIC (0650)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-0691

AXLE ASM-FRONT PIV - BLACK JACK (0691)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-0709

AXLE ASM-FRONT PIV - MASTERCRAFT GREEN (0709)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-4015

AXLE ASM-FRONT PIV - FIRE RED (4015)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-4038

AXLE ASM-FRONT PIV - DAY ORANGE (4038)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-4044

AXLE ASM-FRONT PIV - CRAFTSMAN RED (4044)

$453.99

$

Usually ships in 3-6 days

0

MTD 603-04385A-4021

Front Axle Pivot Assembly - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

MTD 634-04321A-0911

Wheel Assembly 13 x 5-6

$

$

Not available

3

MTD 734-04255A-0901

Tire 13 x 5-6
(Superseded to 734-04255A-0906)

Note: (not shown)

$82.99

$

In Stock, Qty 6

0

3

MTD 741-0516B

Flange Bearing

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

3

MTD 741-0990B

Flange Bearing w/grease fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

4

MTD 710-04186

Hex Lock Screw 1/2-13 x 1.25 Gr. 5

$7.49

$

In Stock, only 1 left!

0

5

MTD 710-04652

Hex Cap Screw 1/2-20 x 7.25 Gr. 5
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

6

MTD 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

MTD 911-04228

Axle Shaft

$77.99

$

In Stock, only 1 left!

0

8

MTD 912-3058

Hex In sert Lock Nut 1/2-13 Gr.B

$5.99

$

In Stock, Qty 16

0

9

MTD 731-05500

Flange Bearing 1.0 x 1,246

$10.99

$

In Stock, Qty 20+

0

10

MTD 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

11

MTD 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

12

MTD 736-0250

Flat Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

14

MTD 750-04775A

Spacer .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

15

MTD 750-04792

Hub .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0
