ZT-54 (17AF2ACK897) - Columbia 54" Zero-Turn Mower (2012) Mower Deck 54-Inch Parts Diagram

54" Zero-Turn Mower

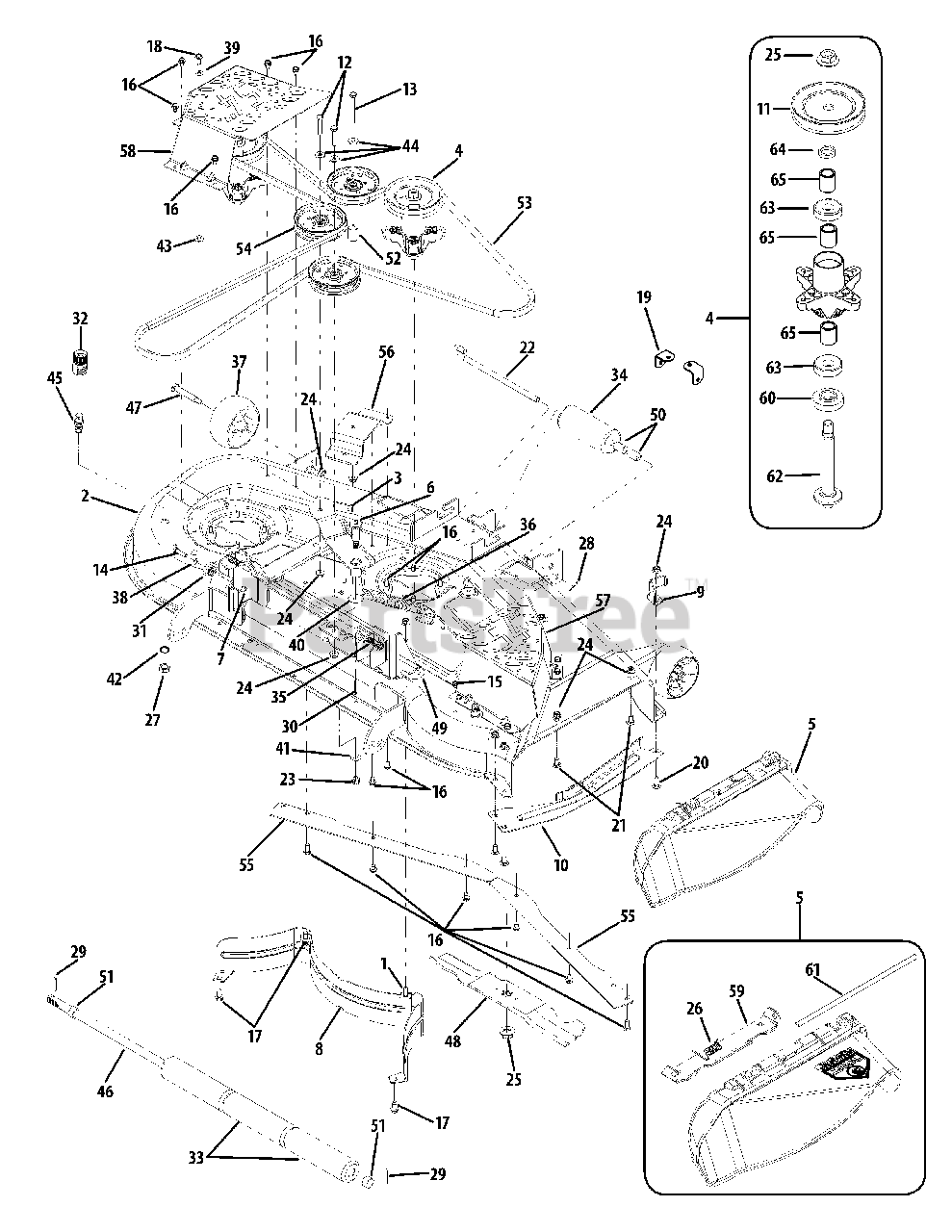

Mower Deck 54-Inch Parts Diagram

  • Title

1

MTD 710-3168

Carriage Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

2

MTD 903-04603-0606

Deck Housing
(Superseded to 903-04603A-0691)

$

$

Not available

3

MTD 603-04386A-0606

Idler Assembly
(Superseded to 603-04386A-0637)

$95.99

$

In Stock, Qty 5

0

4

MTD 918-04608A

Spindle Assembly

$153.99

$

In Stock, Qty 16

0

5

MTD 631-04092B

Discharge Chute Assembly (Aus.)
(Superseded to 631-04092C)

$60.99

$

Usually ships in 3-6 days

0

6

MTD 638-04012A

Shoulder Bolt Assembly

$21.99

$

In Stock, Qty 5

0

7

MTD 683-0254B-0606

Deck Hanger Bracket
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

8

MTD 703-2093C-0637

Rear Inner Baffle

$96.99

$

In Stock, only 2 left!

0

9

MTD 703-3279-0606

Stop Bracket
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

10

MTD 703-3511A-0637

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

11

MTD 756-04216

V-Type Pulley, 5.39

$33.99

$

In Stock, only 1 left!

0

12

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

13

MTD 710-0521

Hex Cap Screw, 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

14

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0623

Hex Washer Screw, 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

18

MTD 710-0650

Hex Washer Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

19

MTD 703-05970-0637

Frame Support Bracket

$

$

Not available

20

MTD 710-04095

Hex Screw, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

21

MTD 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

22

MTD 711-1737

Roller Pin, .5 x 10.06

$25.99

$

In Stock, Qty 6

0

23

MTD 712-0290

Hex Lock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

24

MTD 712-04065

Hex Insert Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

MTD 732-04372

Torsion Spring, .44 ID x 2.00

$10.99

$

In Stock, Qty 9

0

27

MTD 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

28

MTD 914-0111

Cotter Pin, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

29

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

30

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

31

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

32

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

33

MTD 731-05825

Deck Roller, 7.895

$36.99

$

In Stock, Qty 5

0

34

MTD 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

35

MTD 732-04652

Compression Spring, .535 x 1.751

$6.99

$

Usually ships in 3-6 days

0

36

MTD 732-04609

Extension Spring, .94 x .04609

$16.99

$

In Stock, only 1 left!

0

37

MTD 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

38

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

39

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

40

MTD 936-0406

Flat Washer, .442 x 1.39 x .06

$6.99

$

In Stock, Qty 11

0

41

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

42

MTD 936-0760

Lock Washer

$4.49

$

In Stock, Qty 13

0

43

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

44

MTD 736-3072

Flat Washer, .38 x .93 x .110

$4.49

$

In Stock, Qty 20+

0

45

MTD 737-04003D

Deck Wash Nozzle

$23.99

$

In Stock, Qty 6

0

46

MTD 738-04260

Shaft, .75 x 26.893

$86.99

$

Usually ships in 3-6 days

0

47

MTD 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

48

MTD 942-0677B

Blade, 18.5

$30.99

$

In Stock, Qty 20+

0

49

MTD 747-1116

Deck Hanger Rod

$12.99

$

In Stock, Qty 6

0

50

MTD 950-0151

Spacer, .55 x .75 x 1.125

$10.99

$

In Stock, Qty 20+

0

51

MTD 950-0212

Spacer, .82 x 1.0 x.53
(Superseded to 750-0212)

$

$

Not available

52

MTD 750-04597

Spacer, .38 x .9 x 1.313

$

$

Not available

53

MTD 954-04138A

V-Belt

$87.99

$

In Stock, Qty 6

0

54

MTD 756-04129B

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

55

MTD 783-04690B-0637

Deck Skirt

$42.99

$

In Stock, only 3 left!

0

56

MTD 783-04726-0637

Stationary Idler Bracket

$36.99

$

Usually ships in 3-6 days

0

57

MTD 783-1470A-0606

Belt Cover, RH
(Superseded to 783-1470A)

$86.99

$

Usually ships in 3-6 days

0

58

MTD 783-1471-0606

Belt Cover, LH
(Superseded to 783-1471A-0637)

$80.99

$

Usually ships in 3-6 days

0

59

MTD 783-05030

Chute Mounting Bracket

$29.99

$

In Stock, Qty 5

0

60

MTD 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

61

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

62

MTD 738-1197

Spindle Shaft, 6.95

$41.99

$

In Stock, Qty 15

0

63

MTD 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

64

MTD 748-0160A

Spacer, .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

65

MTD 750-1000

Spacer, .80 x 1.10 x 1.32

$4.49

$

In Stock, Qty 7
