ZT-54 (17AF2ACK897) - Columbia 54" Zero-Turn Mower (2012) Frame & Drive Idler Assembly Parts Diagram

54" Zero-Turn Mower

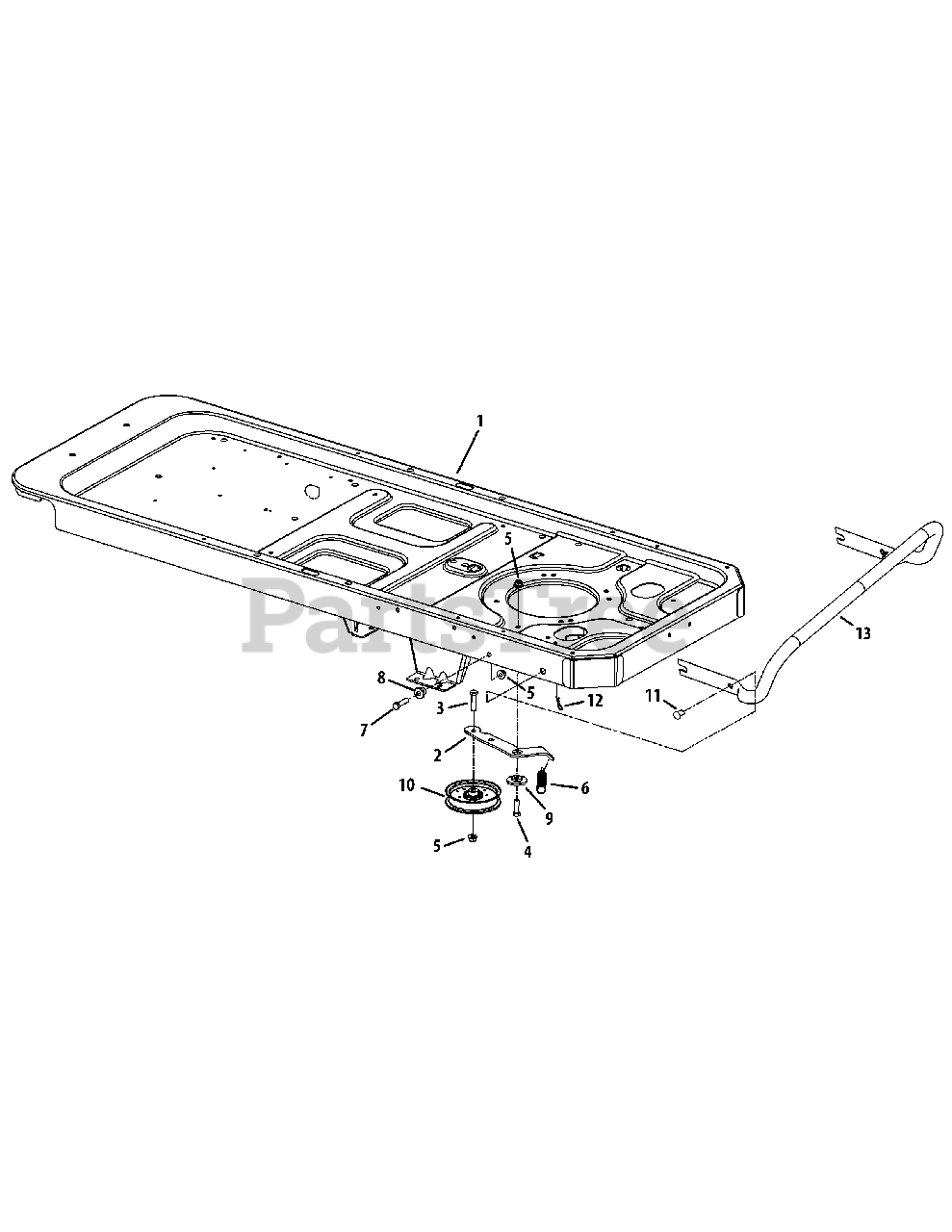

Frame & Drive Idler Assembly Parts Diagram

  • Title

1

MTD 603-04680A-0606

Frame Assembly

$

$

Not available

2

MTD 703-05829

Drive Idler Arm

Variations

MTD 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

MTD 710-0520

Hex Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

4

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04065

Flange Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 732-0626

Extension Spring, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

MTD 710-05097

Hex Screw, 3/8-16 x 1.5, GR2

$4.99

$

Usually ships in 3-6 days

0

8

MTD 738-04058

Shoulder Spacer, .39 x 1.0 x .7

$4.49

$

In Stock, only 1 left!

0

9

MTD 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

MTD 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

11

MTD 911-0332

Clevis Pin, .50 Dia. x .78 Lg.

Note: If Equipped

$16.99

$

In Stock, Qty 14

0

12

MTD 914-04023

Cotter Pin, .080 x 1.5625
(Superseded to 714-04023)

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

13

MTD 749-04358-0637

Bumper

Note: If Equipped

$

$

Not available
