ZT-5000 (17AD2ACP790) - White Outdoor 50" Zero-Turn Mower (2007) Front Axle & Wheels Model ZT-5000 Parts Diagram

50" Zero-Turn Mower

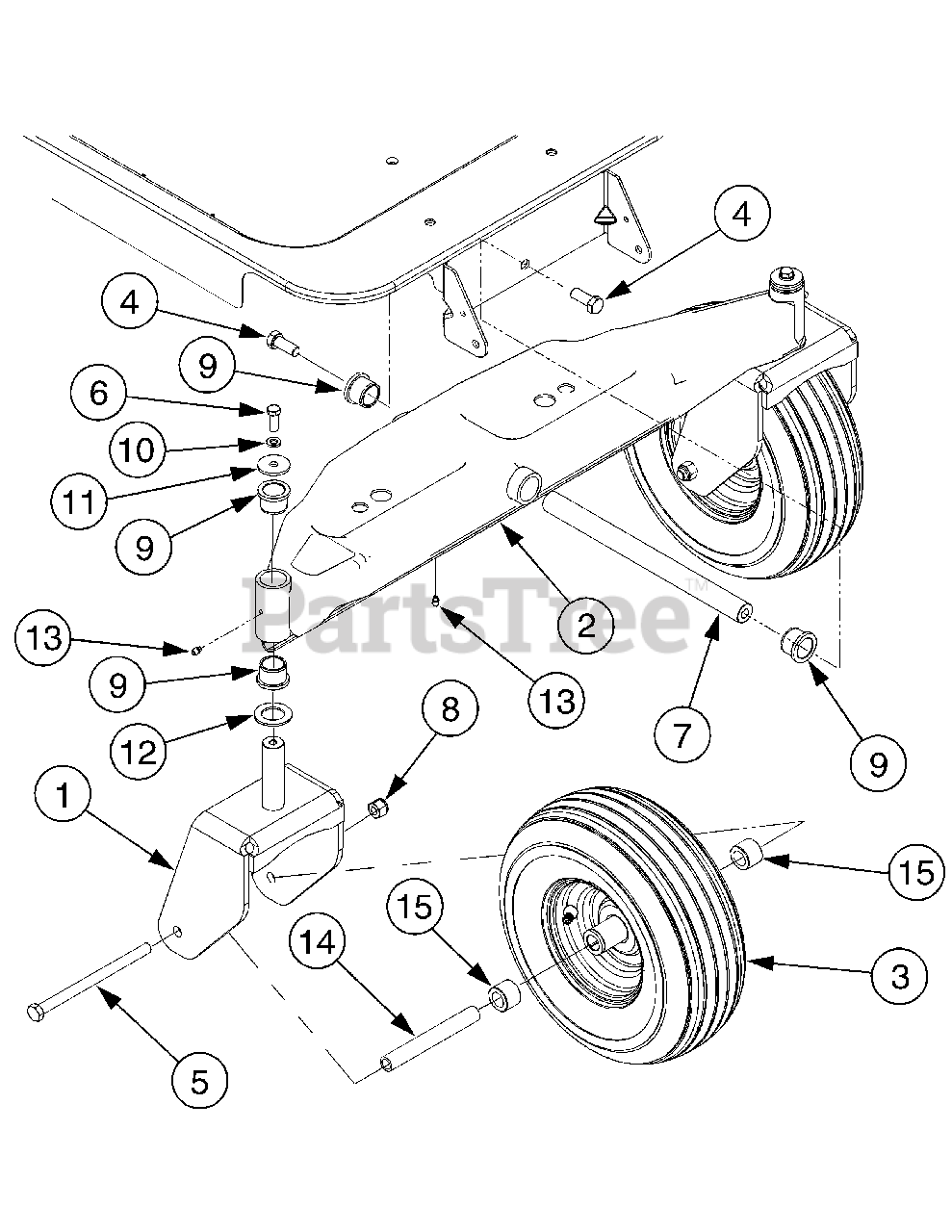

Front Axle & Wheels Model ZT-5000 Parts Diagram

  • Title

1

White Outdoor 603-04370

Bracket, Castor Wheel
(Superseded to 603-04370A)

Variations

White Outdoor 603-04370-0638

Caster Wheel Yoke, Red - MTD/TROY-BILT RED (0638)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-4021

Caster Wheel Yoke, Yellow - CUB YELLOW 2 (4021)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-0606

YOKE ASM-CASTER - MAJESTIC ORANGE (0606)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-0650

Caster Wheel Yoke, Red - RED METALLIC (0650)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-0691

YOKE ASM-CASTER - BLACK JACK (0691)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-4015

YOKE ASM-CASTER - FIRE RED (4015)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-4038

YOKE ASM-CASTER - DAY ORANGE (4038)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-0709

YOKE ASM-CASTER - MASTERCRAFT GREEN (0709)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-0716

YOKE ASM-CASTER - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04370-4044

YOKE ASM-CASTER - CRAFTSMAN RED (4044)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

2

White Outdoor 603-04385

Axle, Front Pivot
(Superseded to 603-04385A)

Variations

White Outdoor 603-04385-0638

Front Axle Pivot Assembly, Red - MTD/TROY-BILT RED (0638)

$453.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04385-0650

AXLE ASSY-FRONT PIVOT - RED METALLIC (0650)

$453.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04385-4015

AXLE ASSY-FRONT PIVOT - FIRE RED (4015)

$453.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04385-0716

Front Axle Pivot Assembly - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 603-04385-4021

Front Axle Pivot Assembly - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

White Outdoor 634-04323A

Wheel Assembly, 13 x 5-6
(Superseded to 634-04321A-0911)

$

$

Not available

3

White Outdoor 734-04255

Tire, 13 x 5-6
(Superseded to 734-04255A)

Note: not shown

$

$

Not available

4

White Outdoor 710-04186

Screw, Hex Lock, 1/2-13 x 1.25 GR5

$7.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-04652

Screw, Hex Cap, 1/2-20 x 7.25 Gr5
(Superseded to 710-11661)

$6.49

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-04228

Shaft, Axle
(Superseded to 911-04228)

$77.99

$

In Stock, only 1 left!

0

8

MTD 712-3058

Nut, Hex Insert Lock, 1/2-13 GRB
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 16

0

9

White Outdoor 731-05500

Bearing, Flange, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.49

$

In Stock, Qty 13

0

12

White Outdoor 736-0250

Washer, Flat, 1.0 x 1.75 x .10

$4.49

$

In Stock, only 2 left!

0

13

White Outdoor 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

15

White Outdoor 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0
