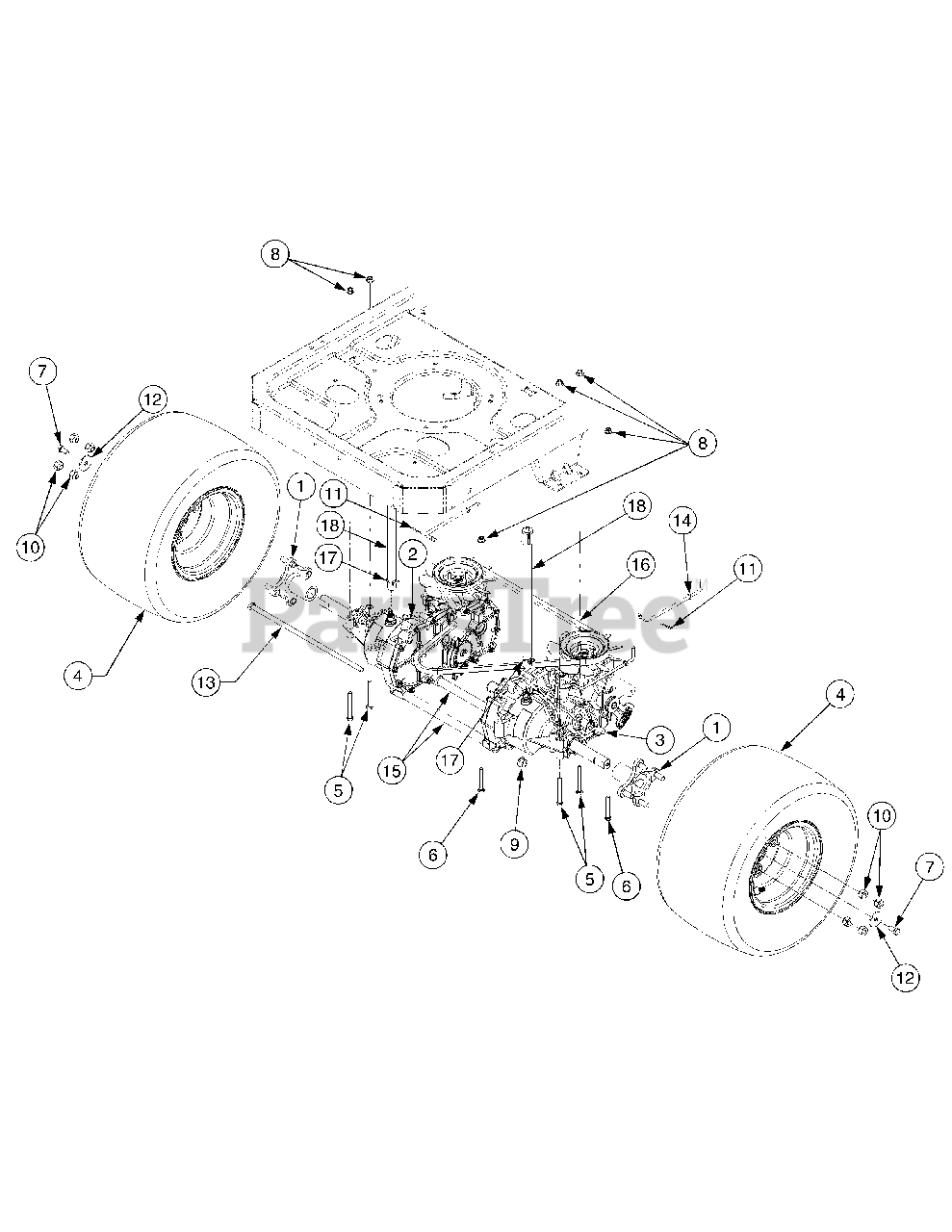

ZT-5000 (17AD2ACP790) - White Outdoor 50" Zero-Turn Mower (2007) Drive Parts Diagram

50" Zero-Turn Mower

Drive Parts Diagram

  • Title

1

White Outdoor 918-04317

Hub, Wheel

$116.99

$

Usually ships in 3-6 days

0

1

White Outdoor 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

Note: not shown

$6.49

$

In Stock, only 4 left!

0

2

White Outdoor 618-04431

Transmission Assembly
(Superseded to 918-04431B)

Note: LH -Before Mfg. Date A267

$1719.99

$

Usually ships in 3-6 days

0

2

White Outdoor 618-04431A

Transmission Assembly
(Superseded to 918-04431B)

Note: LH -Mfg. Date A267 & After - Replaces 618-04431

$1719.99

$

Usually ships in 3-6 days

0

White Outdoor 732-04448

Neutral Return Spring

Note: must have the same color neutral return spring on RH & LH transmission, not shown

$10.99

$

In Stock, Qty 20+

0

3

White Outdoor 618-04432

Transmission Assembly
(Superseded to 918-04432B)

Note: RH -Before Mfg. Date A267

$1805.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-04432A

Transmission Assembly
(Superseded to 918-04432B)

Note: RH -Mfg.Date A267 & After - Replaces 618-04432

$1805.99

$

Usually ships in 3-6 days

0

White Outdoor 732-04448

Neutral Return Spring

Note: must have the same color neutral return spring on RH & LH transmission, not shown

$10.99

$

In Stock, Qty 20+

0

4

White Outdoor 634-04294

ZT4200 Wheel Ass’y, 18 x 6.5 x 8

$279.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-04246

ZT4200 Tire, 18 x 6.5 x 8

Note: not shown

Variations

White Outdoor 734-04246-0901

Tire, 18 X 8.5-8 Sq - Carlisle (0901)

$85.99

$

In Stock, only 2 left!

0

White Outdoor 734-04246-0906

TIRE-18X8.5-8 SQ S - Kenda (0906)

$85.99

$

In Stock, only 2 left!

0

$132.99

$

Usually ships in 3-6 days

0

4

White Outdoor 603-04173

ZT4200 Rim Assembly

Note: not shown

Variations

White Outdoor 603-04173-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04173-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04173-0674

Rim Assembly, Rear - YARDMAN YELLOW (0674)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04173-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

In Stock, only 2 left!

0

4

White Outdoor 734-0255

Valve Assembly
(Superseded to 934-0255)

Note: not shown

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 634-04171

ZT5000 Wheel Ass’y, 18 x 9.5 x 8
(Superseded to 634-04128-0911)

$

$

Not available

4

White Outdoor 734-1729

ZT5000 Tire, 18 x 9.5 x 8

Note: not shown

Variations

White Outdoor 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

White Outdoor 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

4

White Outdoor 603-04175

ZT5000 Rim Assembly

Note: not shown

Variations

White Outdoor 603-04175-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$88.99

$

In Stock, only 1 left!

0

White Outdoor 603-04175-4042

RIM ASSY-REAR - CRAFTSMAN GRAY (4042)

$88.99

$

In Stock, only 1 left!

0

White Outdoor 603-04175-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$

$

Not available

$72.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-0255

Valve Assembly
(Superseded to 934-0255)

Note: not shown

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0176

Screw, Hex Cap, 5/16-18 x 2.75 GR5

$4.49

$

In Stock, only 2 left!

0

6

White Outdoor 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

7

White Outdoor 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75 GR5

$6.99

$

In Stock, only 1 left!

0

8

White Outdoor 712-04063

Nut, Hx Flnge Insert Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0459

Nut, Hex Flange Lock, 7/16-20 GrB .

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, Qty 6

0

11

White Outdoor 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

12

White Outdoor 736-0227

Washer, Flat, .39 x 1.5 .134

$6.49

$

In Stock, Qty 13

0

13

White Outdoor 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

White Outdoor 747-04217C

Rod, Bypass
(Superseded to 747-04217C-0637)

Variations

White Outdoor 747-04217C-0637

Bypass Rod - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

White Outdoor 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

White Outdoor 754-04043

V-Belt, Type A Sec x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

17

White Outdoor 726-04059

Clamp, Hose

$

$

Not available

18

White Outdoor 751-10474

Hose, Breather

$38.99

$

Usually ships in 3-6 days

0

White Outdoor 737-3120

Drive System Fluid
(Superseded to 490-000-C051)

Note: not shown

$21.99

$

In Stock, Qty 10

0
