ZT-50 (17BA5A7P790) - White Outdoor 50" Zero-Turn Mower (2005) Frame Parts Diagram

50" Zero-Turn Mower

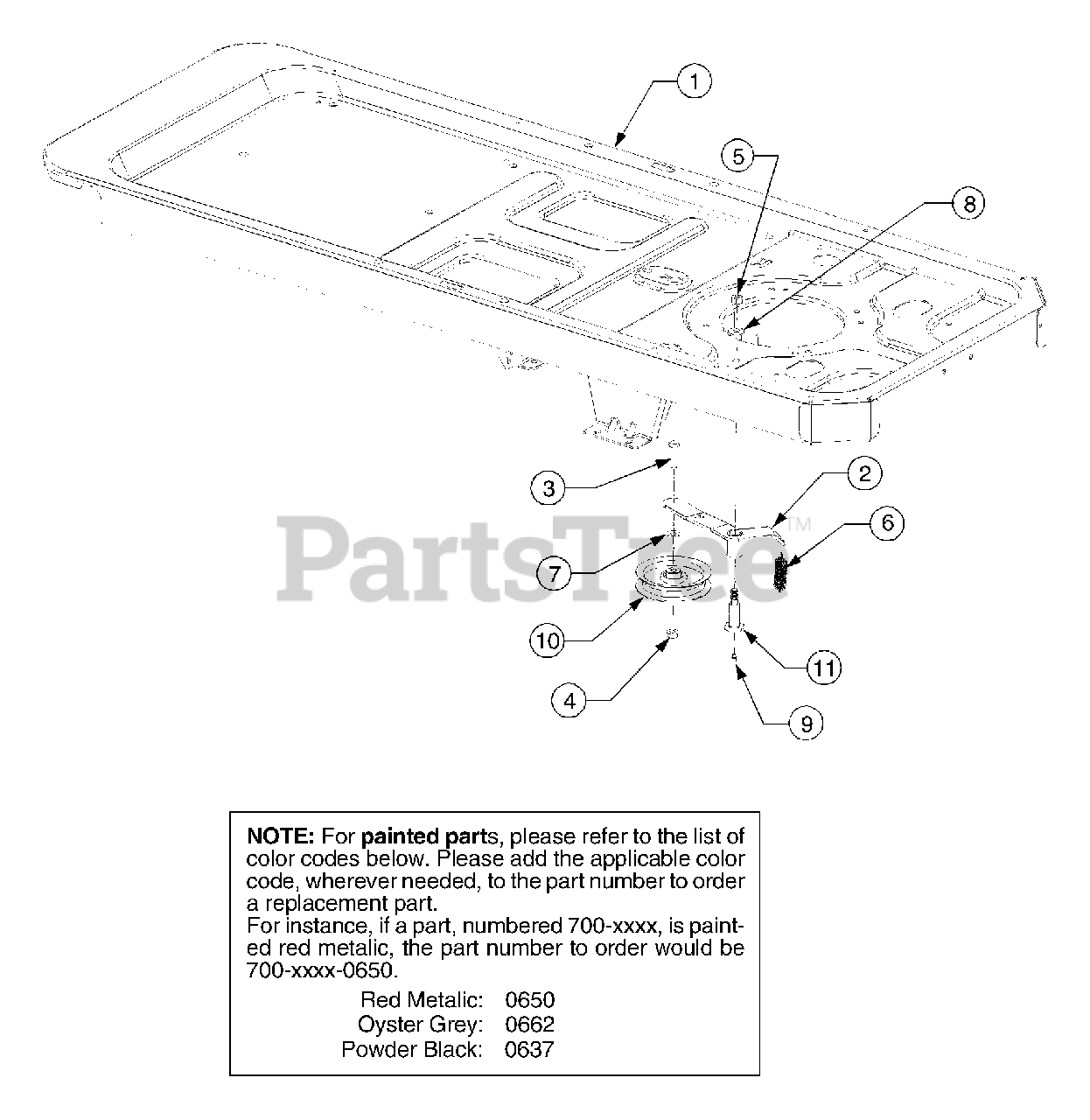

Frame Parts Diagram

  • Title

1

White Outdoor 603-04303

Frame Assembly
(Superseded to 603-04680A)

Variations

White Outdoor 603-04303-0650

FRAME-ASSY RZT - RED METALLIC (0650)

$

$

Not available

White Outdoor 603-04303-0716

FRAME-ASSY RZT - CUB YELLOW-99 (0716)

$

$

Not available

$839.99

$

Usually ships in 3-6 days

0

White Outdoor 777D03399

Graphic, White

$

$

Not available

2

White Outdoor 603-04147A

Idler Arm, Drive
(Superseded to 603-04147A-0637)

Variations

White Outdoor 603-04147A-0637

Idler Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

4

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0290

Nut, Hex Lock, 7/16-14 GRA

$4.99

$

In Stock, Qty 11

0

6

White Outdoor 732-0626

Spring, Extension, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

White Outdoor 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0322

Washer, Flat, .45 x 1.25 x .164 HT

$9.49

$

In Stock, Qty 8

0

9

White Outdoor 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 738-3005A

Screw, Shoulder, .68 x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

11

White Outdoor 756-1229

Pulley, Idler, 4.08 Dia.

$47.99

$

In Stock, only 3 left!

0
