ZT-50 (17AK2ACP290) - White Outdoor 50" Zero-Turn Mower (2008) Seat Adjustment Parts Diagram

50" Zero-Turn Mower

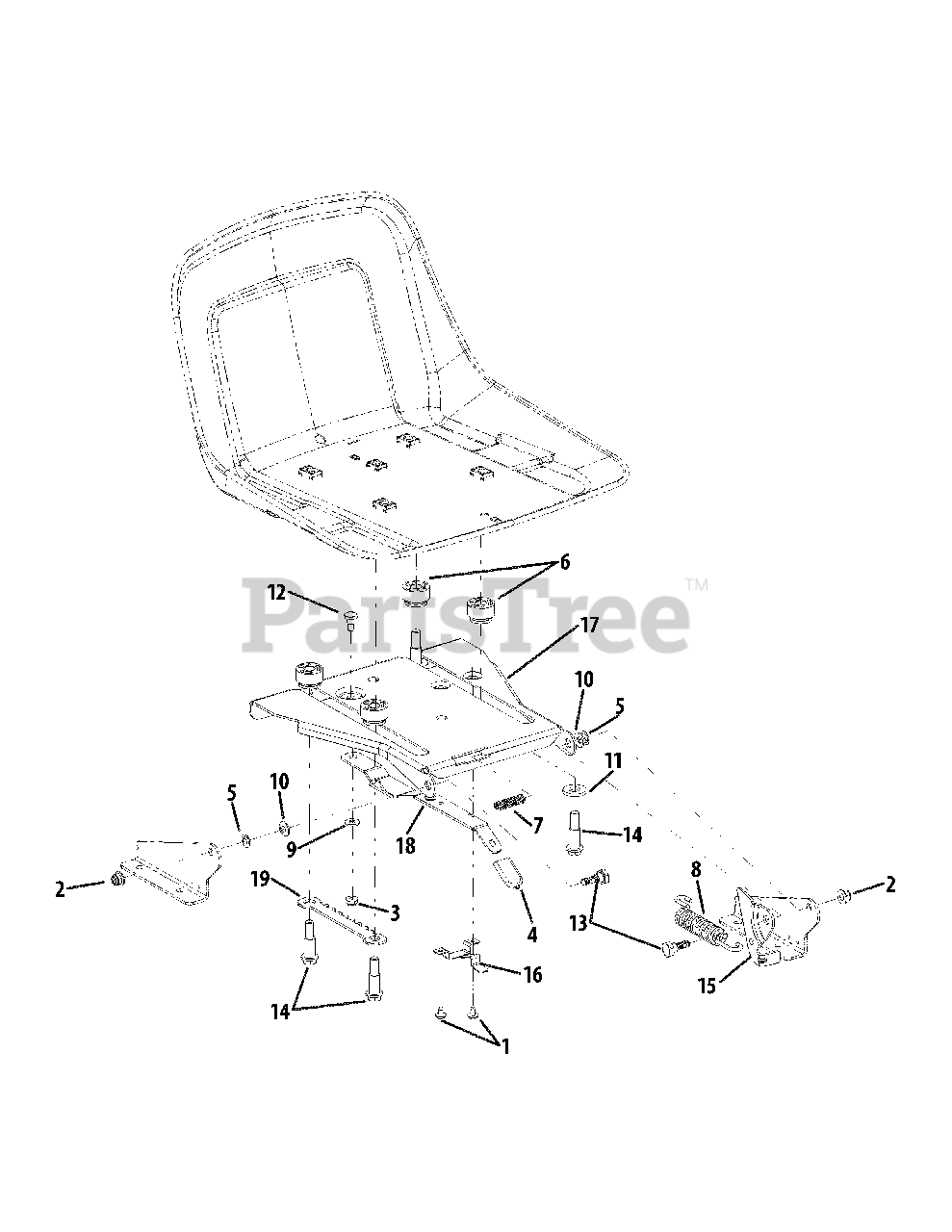

Seat Adjustment Parts Diagram

  • Title
1

White Outdoor 710-1268

Hex Hd. Wshr Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 720-0309A

Seat Adjustment Grip

$9.49

$

Usually ships in 3-6 days

0

5

White Outdoor 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 731-04074

Seat Adjustment Spacer

$7.49

$

In Stock, Qty 20+

0

7

White Outdoor 732-0499

Compression Spring, .41 x 1.50

$9.49

$

In Stock, only 1 left!

0

8

White Outdoor 732-1184

Extension Spring, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

12

White Outdoor 738-0137A

Shoulder Screw, .340 x .285 x 1/4-20

$10.99

$

In Stock, Qty 10

0

13

White Outdoor 738-0296

Shoulder Screw, .437 x .268 x 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 738-0966A

Shoulder Bolt, .50 x .925 x 3/8 -16

$4.99

$

In Stock, Qty 19

0

15

White Outdoor 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

16

White Outdoor 783-0611

Seat Adjustment Stop

$10.99

$

In Stock, only 3 left!

0

17

White Outdoor 783-0738D

Seat Pivot Bracket

Variations

White Outdoor 783-0738D-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0738D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0738D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0738D-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0738D-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0738D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0738D-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

White Outdoor 783-0738D-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 783-0738D-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

18

White Outdoor 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

White Outdoor 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

19

White Outdoor 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0
