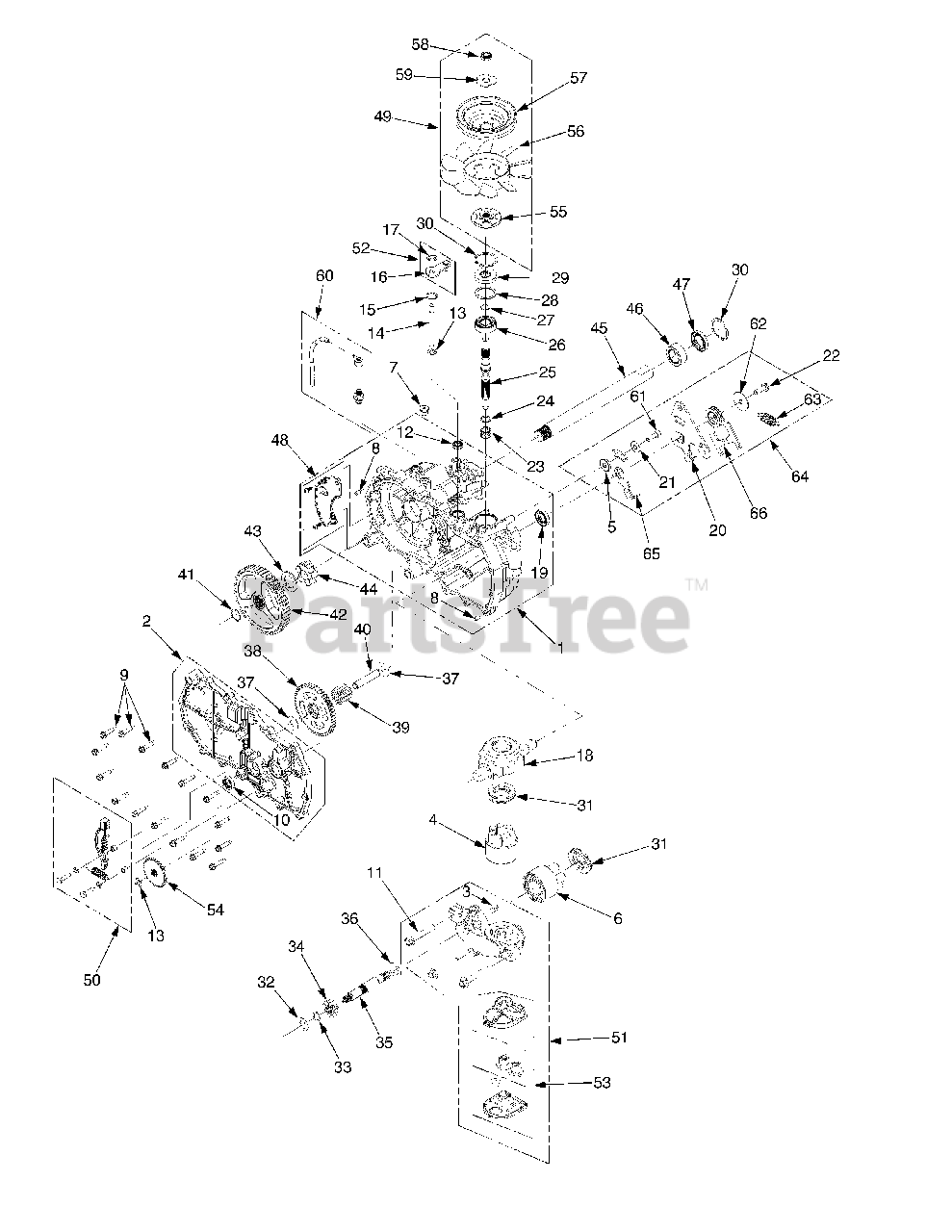

Transmission-LH Parts Diagram

  • Title

1

MTD HG-70862L

Housing Ass’y, Main LH

$364.99

$

Usually ships in 3-6 days

0

2

MTD HG-70863L

Side Assembly LH

$159.99

$

Usually ships in 3-6 days

0

3

MTD HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

4

MTD HG-70723

Block Kit - 7 Piston

$228.99

$

Usually ships in 3-6 days

0

5

MTD HG-52527

Spacer, .32 x 1.005 x .179
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

6

MTD HG-70331

Block Assembly, Cylinder

$188.99

$

Usually ships in 3-6 days

0

7

MTD HG-9005110-5600

Straight Thread Pipe

$20.99

$

Usually ships in 3-6 days

0

8

MTD HG-9004800-2506

Std. Handle Pin

$4.49

$

Usually ships in 3-6 days

0

9

MTD HG-53246

Hex Flange Screw

$3.99

$

Usually ships in 3-6 days

0

10

MTD HG-70719

Oil Seal .625 x 1.0 x .25

$14.99

$

Usually ships in 3-6 days

0

11

MTD HG-50016

Screw

$4.99

$

Usually ships in 3-6 days

0

12

MTD HG-51626

Seal, Lip
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

13

MTD HG-51628

Retaing Ring .375 Ext.

$4.49

$

In Stock, Qty 5

0

14

MTD HG-51625

Rod, Bypass

$16.99

$

Usually ships in 3-6 days

0

15

MTD HG-51627

Retaining Ring .75 Int.

$4.49

$

Usually ships in 3-6 days

0

16

MTD HG-51910

Arm, Bypass

$14.99

$

Usually ships in 3-6 days

0

17

MTD HG-51630

Retaining Ring

$3.99

$

In Stock, only 1 left!

0

18

MTD HG-51048

Swashplate, trunnion

$88.99

$

Usually ships in 3-6 days

0

19

MTD HG-51140

Seal, Lip

$9.99

$

Usually ships in 3-6 days

0

20

MTD HG-51842

Control Arm LH

$14.99

$

In Stock, only 1 left!

0

21

MTD 736-0371

Washer 7/16 x 7/8 x .060

$4.49

$

In Stock, only 3 left!

0

22

MTD HG-51812

Screw, 5/16-24 x 1.0

$4.49

$

Usually ships in 3-6 days

0

23

MTD HG-2003014

Block Washer

$4.99

$

Usually ships in 3-6 days

0

24

MTD HG-2003017

Block Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

25

MTD HG-51062

Input Shaft
(Superseded to HG-51062P)

$134.99

$

Usually ships in 3-6 days

0

26

MTD HG-50315

Ball Bearing

$18.99

$

Usually ships in 3-6 days

0

27

MTD HG-2000022

Retaining Ring

$4.49

$

Usually ships in 3-6 days

0

28

MTD HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

29

MTD HG-51161

Lip Seal

$11.99

$

Usually ships in 3-6 days

0

30

MTD HG-50329

Retaining Ring

$11.99

$

Usually ships in 3-6 days

0

31

MTD HG-50551P

Thrust Washer

$29.99

$

Usually ships in 3-6 days

0

32

MTD HG-44371

Flat Washer 5/8 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

33

MTD HG-44145

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

34

MTD HG-51130

Gear, Pinion, 13T

$9.49

$

Usually ships in 3-6 days

0

35

MTD HG-51632

Shaft, Motor

$

$

Not available

36

MTD HG-51069

Motor Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

37

MTD HG-50132

Washer, HT

$4.49

$

Usually ships in 3-6 days

0

38

MTD HG-51129

Gear, 10T/48T

$53.99

$

Usually ships in 3-6 days

0

39

MTD HG-51043

Gear, 10T Jackshaft

$28.99

$

Usually ships in 3-6 days

0

40

MTD HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

41

MTD HG-52531

Retaining Ring

$3.49

$

In Stock, only 1 left!

0

42

MTD HG-52541

Gear, Bull, 52T

$61.99

$

Usually ships in 3-6 days

0

43

MTD HG-52532

Washer, 1.018 x 1.57 x .105

$2.99

$

Usually ships in 3-6 days

0

44

MTD HG-52542

Sleeve Bearing

$6.49

$

Usually ships in 3-6 days

0

45

MTD HG-52545

Shaft, Axle, 1.0 x 11.7

$91.99

$

Usually ships in 3-6 days

0

46

MTD HG-51517

Bearing, Sleeve

$11.99

$

Usually ships in 3-6 days

0

47

MTD HG-51518

Seal, Lip

$12.99

$

Usually ships in 3-6 days

0

48

MTD HG-70868L

Plate Kit, Expansion

$21.99

$

Usually ships in 3-6 days

0

49

MTD HG-72134

Kit, Fan Pulley

$63.99

$

In Stock, Qty 6

0

50

MTD HG-71356

Kit, Brake Arm

$22.99

$

Usually ships in 3-6 days

0

51

MTD HG-71529

Kit, Center section

$232.99

$

In Stock, only 3 left!

0

52

MTD HG-71006

Kit, Bypass Arm RH

$19.99

$

Usually ships in 3-6 days

0

53

MTD HG-71497

Filter Assembly

$19.99

$

Usually ships in 3-6 days

0

54

MTD HG-51635

Disc, Brake Cog

$17.99

$

Usually ships in 3-6 days

0

55

MTD HG-52366

Hub, Pulley

$

$

Not available

56

MTD HG-53050

Fan, 7" 10 Blade

$21.99

$

In Stock, only 2 left!

0

57

MTD HG-52364

Pulley, 4.5
(Superseded to HG-53804)

$

$

Not available

58

MTD 912-0346

Hex Ins. L-Nut 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 8

0

59

MTD HG-51523

OD Slotted Washer

$3.99

$

In Stock, Qty 8

0

60

MTD HG-71510

Breather Kit

$22.99

$

In Stock, only 2 left!

0

61

MTD HG-71341

Screw, Patch 5/16-24 x 1

$9.49

$

Usually ships in 3-6 days

0

62

MTD HG-51950

Washer, .343 x 1.5 x .062
(Superseded to HG-54244)

$6.49

$

Usually ships in 3-6 days

0

63

MTD 732-04448

Extension Spring

$10.99

$

In Stock, Qty 20+

0

64

MTD HG-71592

Kit, Return Ass’y LH

$48.99

$

In Stock, only 2 left!

0

65

MTD HG-51946

Neutral Arm RH

$13.99

$

In Stock, only 2 left!

0

66

MTD HG-52432

Scissors Arm Kit

$24.99

$

Usually ships in 3-6 days
