ZT-50 (17AF2ACP897) - Columbia 50" Zero-Turn Mower (2013) Rear Drive & Wheels 50-Inch Parts Diagram

50" Zero-Turn Mower

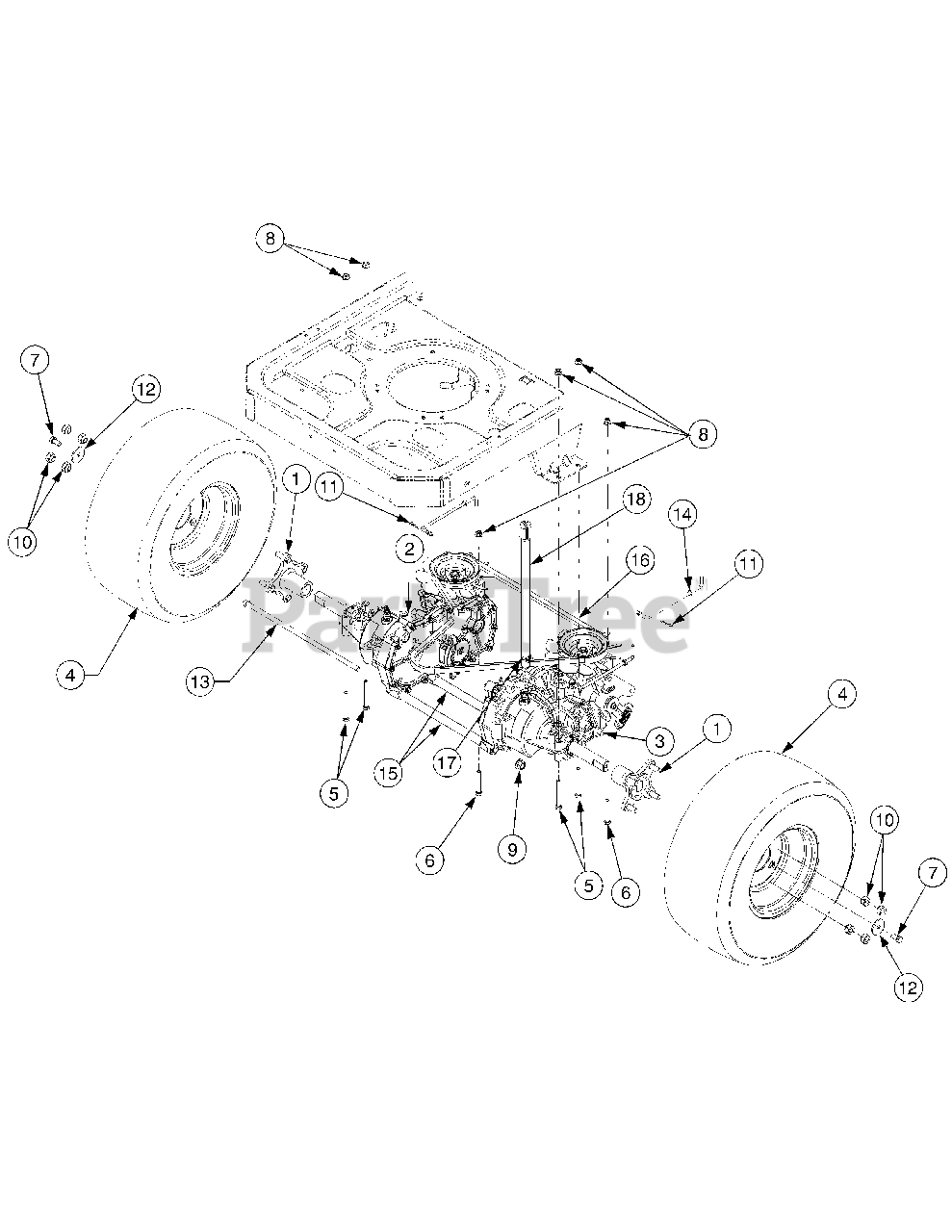

Rear Drive & Wheels 50-Inch Parts Diagram

  • Title
1

MTD 918-04317

Wheel Hub

$116.99

$

In Stock, only 1 left!

0

2

MTD 918-04431B

Transmission Ass'y, LH

$1719.99

$

Usually ships in 3-6 days

0

3

MTD 918-04432B

Transmission Ass'y, RH

$1805.99

$

Usually ships in 3-6 days

0

4

MTD 634-04128-0911

Complete Wheel 18 x 9.8-8
(Superseded to 634-04128-0916)

Note: (Carlisle)

$

$

Not available

4

MTD 634-04128-0916

Complete Wheel 18 x 9.8-8
(Superseded to 634-04128-0911)

Note: (Deli)

$

$

Not available

4

MTD 603-04175-0662

Rim Only

Note: (not shown)

$

$

Not available

4

MTD 934-0255

Valve

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1729-0901

Tire Only Carlisle
(Superseded to 734-1729-0906)

$

$

Not available

4

MTD 734-1729-0906

Tire Only Deli
(Superseded to 734-1729-0901)

$

$

Not available

5

MTD 710-0176

Hex Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-0395

Hex Bolt 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-3119

Hex Cap Lock Screw. 3/8-16 x .75 Gr. 5

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3050

Lub Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

11

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

MTD 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

13

MTD 738-04192B

Rod, .405 x 14.0

$21.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C-0637

Rod, Bypass

$21.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

MTD 954-04043B

V-Belt, Type A Sec x 57.7

$42.99

$

In Stock, Qty 20+

0
