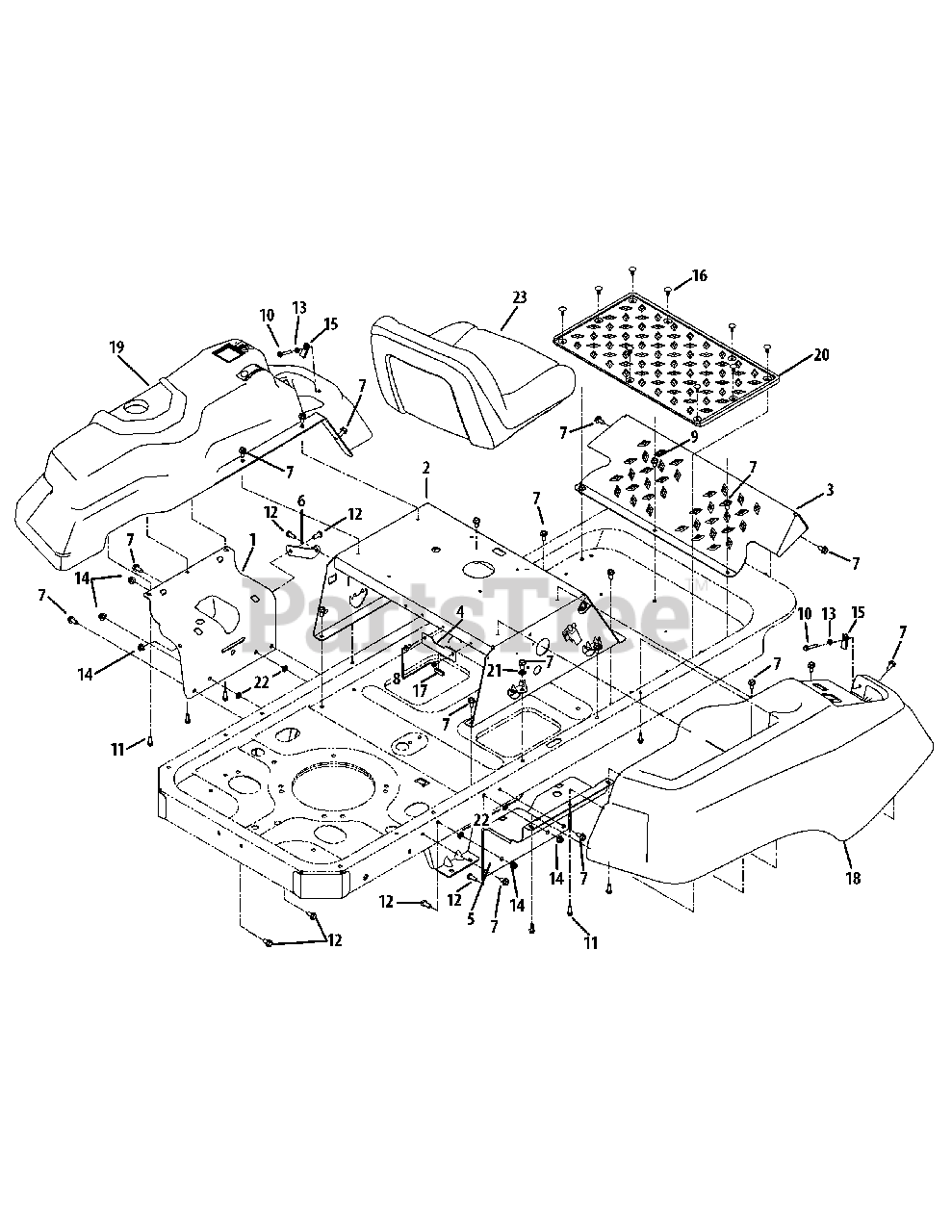

ZT-50 (17AF2ACP897) - Columbia 50" Zero-Turn Mower (2013) Operators Platform Parts Diagram

50" Zero-Turn Mower

Operators Platform Parts Diagram

  • Title

1

MTD 603-04564

Console Mtg. Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04564-0606

BRACKET-LH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04564-0637

BRACKET-LH CONSOLE - POWDER BLACK (0637)

$

$

Not available

MTD 603-04564-0638

BRACKET-LH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04564-0650

BRACKET-LH CONSOLE - RED METALLIC (0650)

$

$

Not available

MTD 603-04564-0691

BRACKET-LH CONSOLE - BLACK JACK (0691)

$

$

Not available

MTD 603-04564-4015

BRACKET-LH CONSOLE - FIRE RED (4015)

$

$

Not available

MTD 603-04564-4021

BRACKET-LH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04564-4033

BRACKET-LH CONSOLE - FLINT MICA (4033)

$

$

Not available

MTD 603-04564-4038

BRACKET-LH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

2

MTD 603-04946

Seat Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04946-0606

FRAME ASM-SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04946-0637

FRAME ASM-SEAT - POWDER BLACK (0637)

$

$

Not available

MTD 603-04946-0638

FRAME ASM-SEAT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04946-0650

FRAME ASM-SEAT - RED METALLIC (0650)

$

$

Not available

MTD 603-04946-0691

FRAME ASM-SEAT - BLACK JACK (0691)

$

$

Not available

MTD 603-04946-0709

FRAME ASM-SEAT - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04946-4015

FRAME ASM-SEAT - FIRE RED (4015)

$

$

Not available

MTD 603-04946-4021

FRAME ASM-SEAT - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04946-4033

FRAME ASM-SEAT - FLINT MICA (4033)

$

$

Not available

MTD 603-04946-4038

FRAME ASM-SEAT - DAY ORANGE (4038)

$

$

Not available

$

$

3

MTD 703-05373B

Foot Rest Bracket

Variations

MTD 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

MTD 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

MTD 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

MTD 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

MTD 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

MTD 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

MTD 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

MTD 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

4

MTD 703-05894-0637

Battery Hold Down Bracket

$29.99

$

In Stock, only 2 left!

0

5

MTD 703-06451

Console Mtg. Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-06451-4021

BRACKET-RH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 703-06451-0606

BRACKET-RH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-06451-0637

BRACKET-RH CONSOLE - POWDER BLACK (0637)

$

$

Not available

MTD 703-06451-0638

BRACKET-RH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-06451-0650

BRACKET-RH CONSOLE - RED METALLIC (0650)

$

$

Not available

MTD 703-06451-0691

BRACKET-RH CONSOLE - BLACK JACK (0691)

$

$

Not available

MTD 703-06451-4015

BRACKET-RH CONSOLE - FIRE RED (4015)

$

$

Not available

MTD 703-06451-4033

BRACKET-RH CONSOLE - FLINT MICA (4033)

$

$

Not available

MTD 703-06451-4038

BRACKET-RH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

6

MTD 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

7

MTD 710-04484

Hex Washer Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0895

Hex Tapp Screw 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

12

MTD 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

MTD 912-0298

Hex Jam Nut 1/4-20

$6.49

$

Usually ships in 3-6 days

0

14

MTD 712-04063

Hex L-Flg.Nut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04092

U-Type Speed Nut 1/4-20

$5.99

$

In Stock, only 2 left!

0

16

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

17

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

18

MTD 731-06233

Console, RH

$

$

Not available

19

MTD 731-06263B

Console, LH

$117.99

$

Usually ships in 3-6 days

0

20

MTD 735-04082C

Foot Pat

$50.99

$

Usually ships in 3-6 days

0

21

MTD 736-0148

Ext. Tooth Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

22

MTD 726-0201

Push Speed Nut

$6.99

$

Usually ships in 3-6 days

0

23

MTD 757-04098

High Back Seat
(Superseded to 757-05231)

$285.99

$

Usually ships in 3-6 days

0

23

MTD 757-04131

Seat (Columbia)
(Superseded to 757-05237)

$283.99

$

In Stock, only 1 left!

0
