ZT-50 (17AF2ACP897) - Columbia 50" Zero-Turn Mower (2012) Seat Adjustment Parts Diagram

50" Zero-Turn Mower

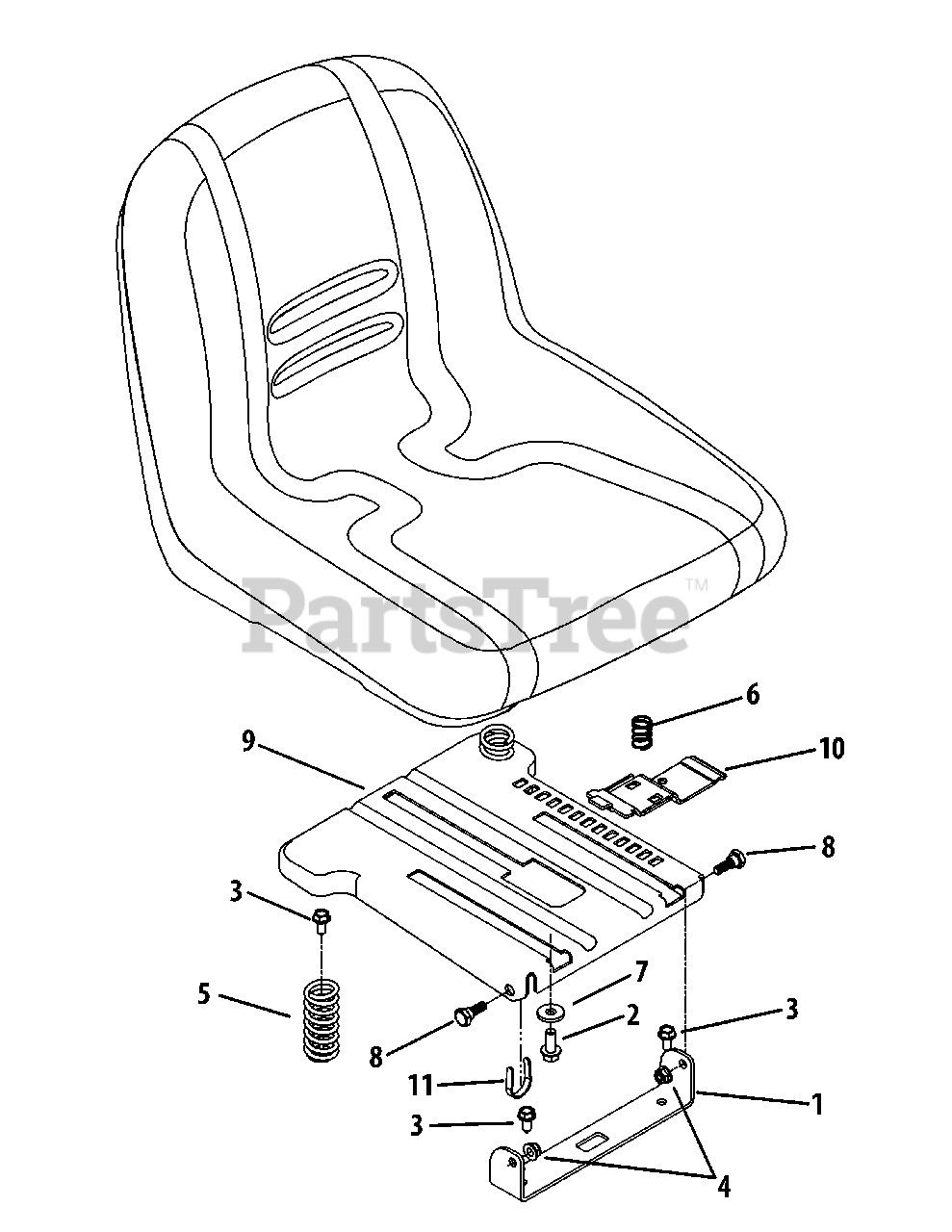

Seat Adjustment Parts Diagram

  • Title

1

MTD 703-08734-0606

Seat Bracket

$26.99

$

Usually ships in 3-6 days

0

2

MTD 710-04482

Hex Flange Bolt, 3/8-16 x .875

Note: Seat stop bolt

$4.49

$

In Stock, Qty 12

0

3

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

5

MTD 732-04849

Compression Spring

$13.99

$

In Stock, only 2 left!

0

6

MTD 732-04563

Compression Spring

$5.49

$

In Stock, Qty 20+

0

7

MTD 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

8

MTD 938-0296

Shoulder Screw, .437 x .268 x 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

9

MTD 783-06049-0606

Seat Mount Bracket

$68.99

$

Usually ships in 3-6 days

0

10

MTD 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0

11

MTD 783-06448

Clip

$5.99

$

In Stock, only 3 left!

0
