ZT-50 (17AA557P790) - White Outdoor 50" Zero-Turn Mower (2006) Engine Accessories 50 inch deck Parts Diagram

50" Zero-Turn Mower

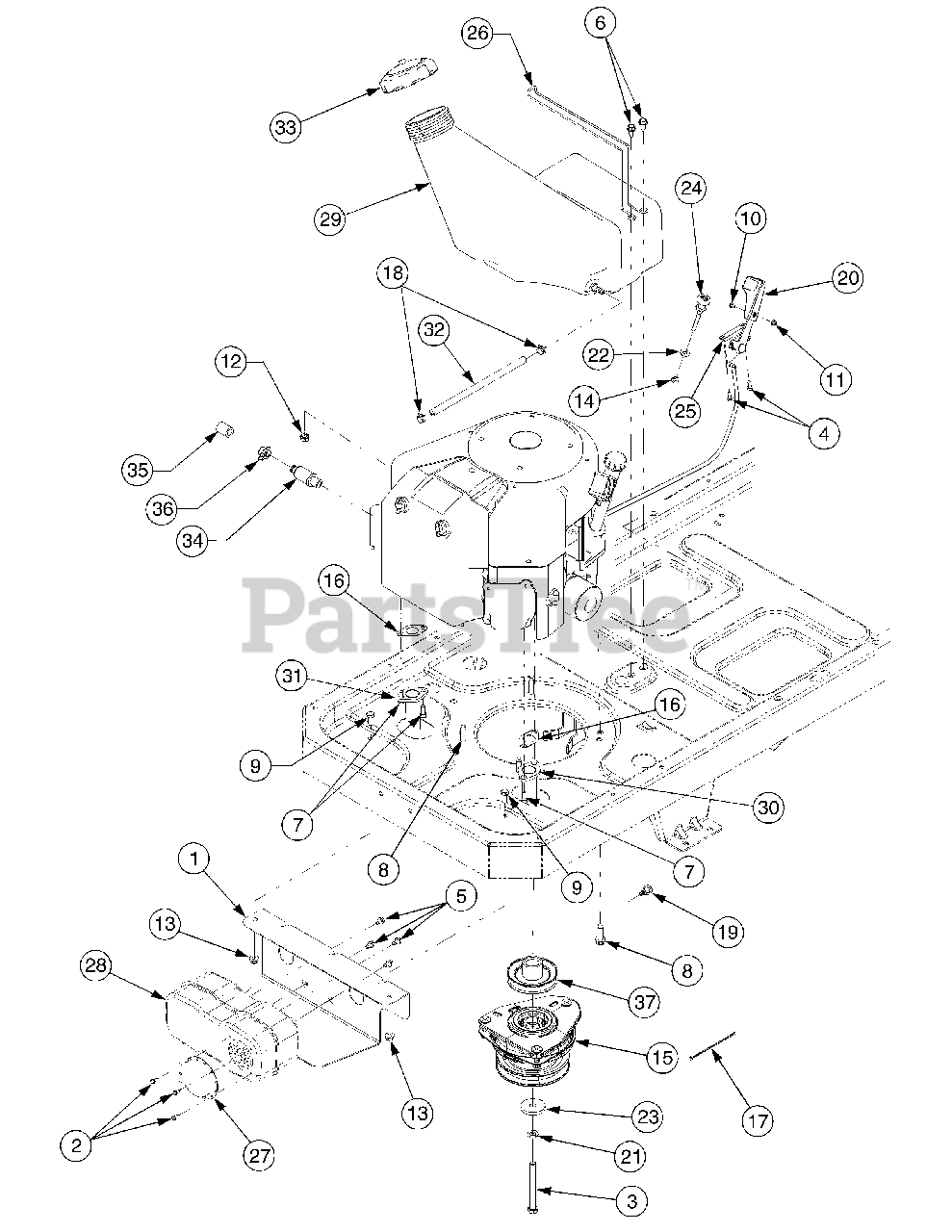

Engine Accessories 50 inch deck Parts Diagram

  • Title

1

White Outdoor 703-05441A

Bracket, Muffler Mounting

$52.99

$

In Stock, only 2 left!

0

2

White Outdoor 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

5

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

11

White Outdoor 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 10

0

12

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-04063

Nut, Hex Insert Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 717-04183

Clutch Assembly, Electric PTO
(Superseded to 917-04622)

$600.99

$

In Stock, only 1 left!

0

16

White Outdoor 721-0460

Gasket, Exhaust
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

17

White Outdoor 726-0197

Tie, Cable

$3.99

$

In Stock, only 1 left!

0

18

White Outdoor 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 726-3055

Clip, Cable Retainer

$6.99

$

Usually ships in 3-6 days

0

20

White Outdoor 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

22

White Outdoor 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

24

White Outdoor 746-04235

Cable, Choke, 47 Lg

$48.99

$

Usually ships in 3-6 days

0

25

White Outdoor 746-1086

Cable, Throttle, 39.0 Lg
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

26

White Outdoor 747-04228A

Wire, Tank Mounting

$

$

Not available

27

White Outdoor 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 4 left!

0

28

White Outdoor 751-0616B

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

29

White Outdoor 751-10057C

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

30

White Outdoor 751-10284

Pipe, Exhaust RH

$80.99

$

In Stock, only 1 left!

0

31

White Outdoor 751-10285

Pipe, Exhaust LH

$

$

Not available

32

MTD 751-10349

Hose, Fuel Line 14in

$9.49

$

Usually ships in 3-6 days

0

33

White Outdoor 751-3124C

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

34

White Outdoor 751-3140

Valve, Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

35

White Outdoor 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

36

White Outdoor 751-3142

Cap, Oil Drain Valve

$4.49

$

In Stock, Qty 14

0

37

White Outdoor 756-0978A

Pulley, Drive
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0
