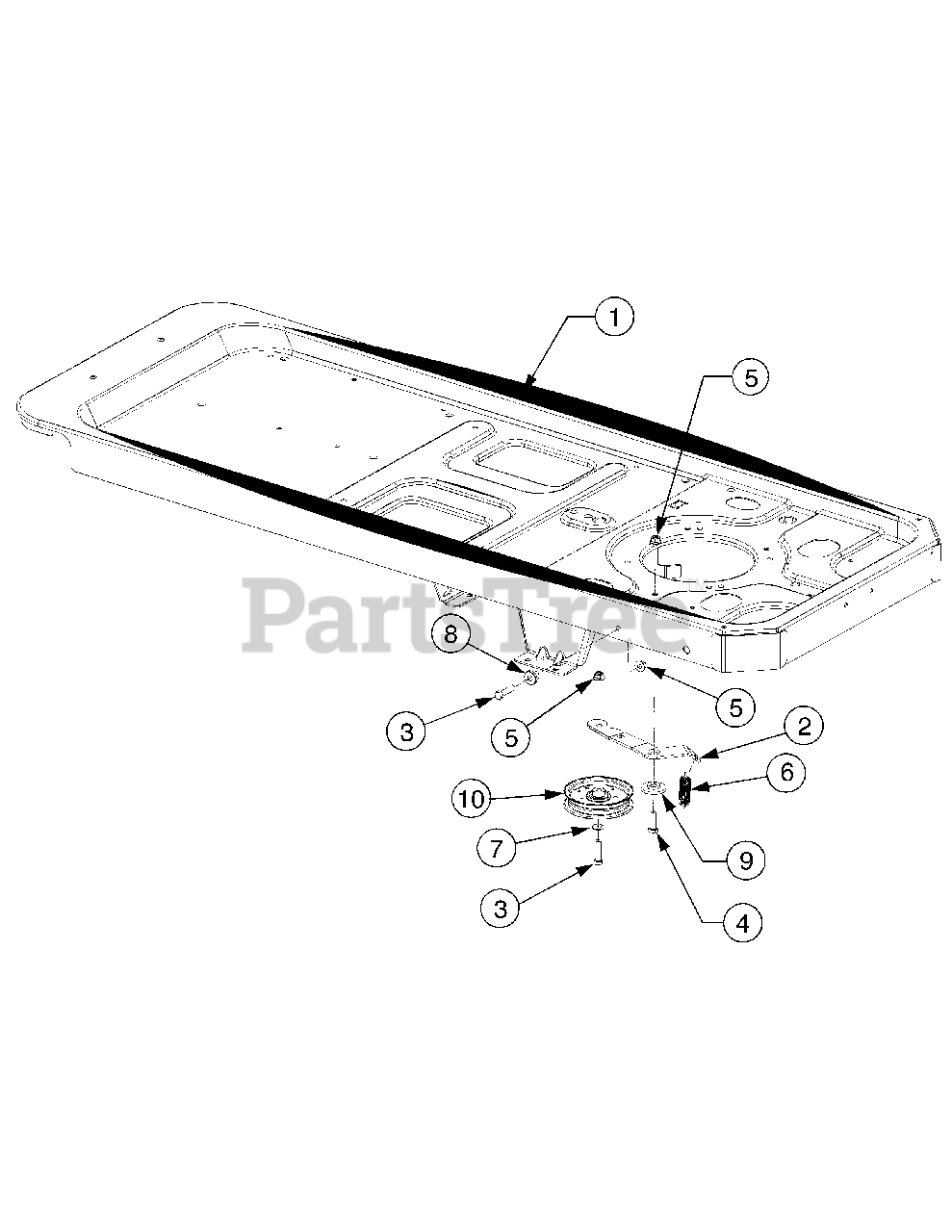

ZT-4200 (17AC2ACG790) - White Outdoor 42" Zero-Turn Mower (2007) Frame Parts Diagram

42" Zero-Turn Mower

Frame Parts Diagram

  • Title

1

White Outdoor 603-04303C

Frame Assembly
(Superseded to 603-04680A)

Variations

White Outdoor 603-04303C-0606

FRAME ASSY-RZT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 603-04303C-0638

FRAME-ASSY RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 603-04303C-0650

FRAME-ASSY RZT - RED METALLIC (0650)

$

$

Not available

White Outdoor 603-04303C-0674

FRAME-RZT - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 603-04303C-0716

FRAME ASSY-RZT - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 603-04303C-4015

FRAME-ASSY RZT - FIRE RED (4015)

$

$

Not available

White Outdoor 603-04303C-4021

FRAME ASSY-RZT - CUB YELLOW 2 (4021)

$

$

Not available

$839.99

$

Usually ships in 3-6 days

0

1

White Outdoor 777I22489

Graphic, Release Lever

Note: not shown

$

$

Not available

1

White Outdoor 777D10797

Graphic, White Outdoor

Note: not shown

$

$

Not available

2

White Outdoor 703-05829

Idler Arm, Drive

Variations

White Outdoor 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

White Outdoor 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

4

White Outdoor 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 9

0

5

White Outdoor 712-04065

Nut, Hx Insert Flnge Lck, 3/-16 GrF

$3.99

$

In Stock, Qty 15

0

6

White Outdoor 732-0626

Spring, Extension, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

White Outdoor 736-0300

Washer, Flat, .408 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 738-04058

Spacer, Shoulder, .39 x 1.0 x .7

$4.49

$

Usually ships in 3-6 days

0

9

White Outdoor 738-04162A

Spacer, Shoulder, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

White Outdoor 756-04129

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0
