ZT-4200 (17AC2ACG790) - White Outdoor 42" Zero-Turn Mower (2007) Engine Connections Model ZT-4200 Parts Diagram

42" Zero-Turn Mower

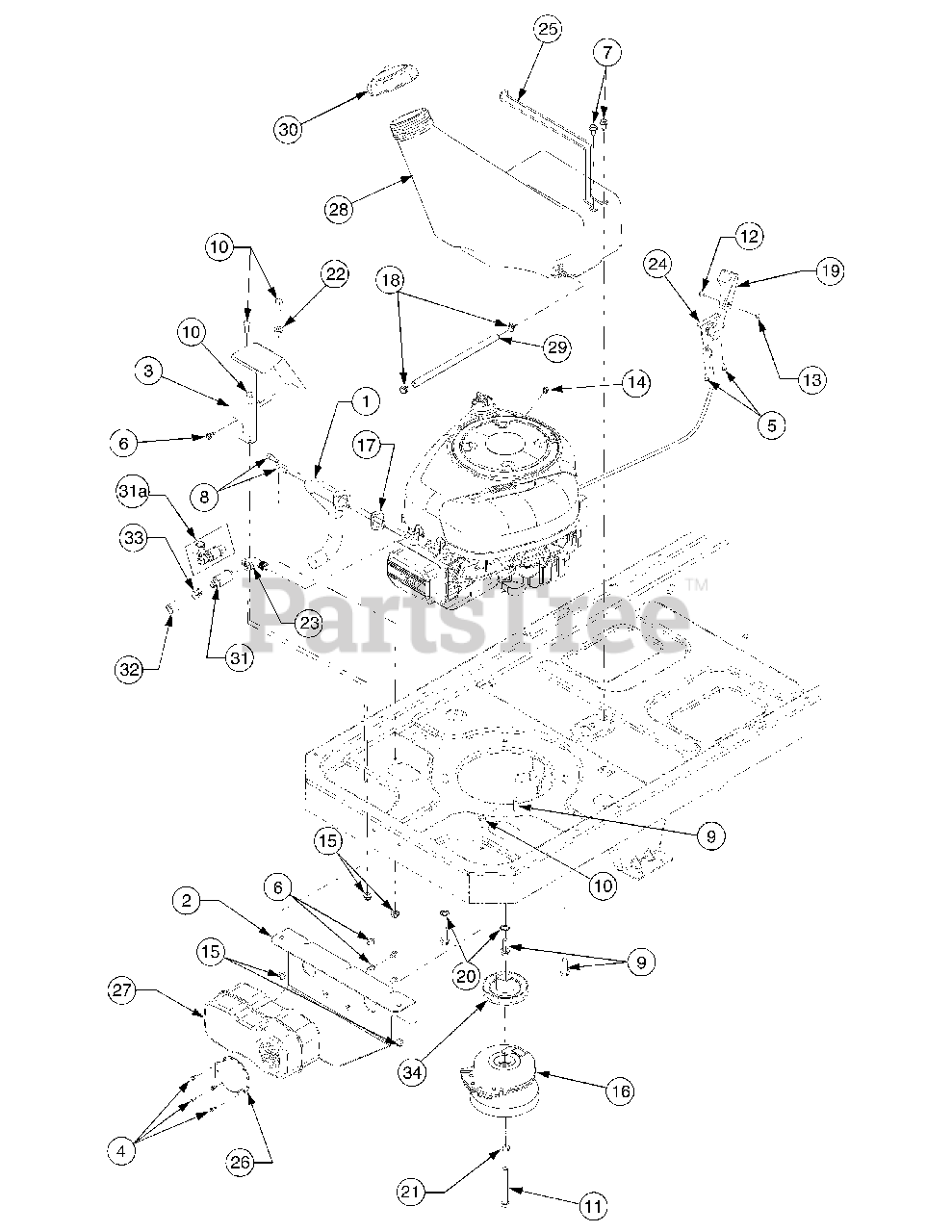

Engine Connections Model ZT-4200 Parts Diagram

  • Title

1

White Outdoor 603-04176A

Tube, Exhaust

$103.99

$

Usually ships in 3-6 days

0

2

White Outdoor 703-05441A

Bracket, Muffler Mounting

$52.99

$

In Stock, only 2 left!

0

3

White Outdoor 703-05870

Shield, Muffler Tube Heat

$96.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

6

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-3157A

Screw, Hx Cap Lk., 7/16-20 x 3.25 GR5

$10.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

13

White Outdoor 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 10

0

14

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

15

White Outdoor 712-04063

Nut, Hx Insert Flange Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 717-04376

Clutch Assembly, Electric PTO
(Superseded to 917-04376A)

$525.99

$

In Stock, only 1 left!

0

17

White Outdoor 721-0208

Gasket, Exhaust (B&S- 272293)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

20

White Outdoor 736-0148

Washer, Ext. Tooth Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

22

White Outdoor 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 737-0125

Fitting, Elbow

$

$

Not available

24

White Outdoor 746-04161

Cable, Throttle, 39.0 Lg
(Superseded to 946-04161)

$49.99

$

In Stock, only 1 left!

0

25

White Outdoor 747-04228A

Wire, Tank Mounting

$

$

Not available

26

White Outdoor 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 3 left!

0

27

White Outdoor 751-0617B

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

28

White Outdoor 751-10057C

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

29

MTD 751-10349

Hose, Fuel Line 6.5in

$9.49

$

Usually ships in 3-6 days

0

30

White Outdoor 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

31

White Outdoor 751-3140

Valve, Oil Drain - Before Mfg. Code C097
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

31a

White Outdoor 751-10517

Valve, Oil Drain - Mfg. Code C097 and After
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

32

White Outdoor 751-3141-14

Hose, Oil Drain Extension

$11.99

$

In Stock, Qty 7

0

33

White Outdoor 751-3142

Cap, Oil Drain Valve - Before Mfg. Code C097

$4.49

$

In Stock, Qty 14

0

34

White Outdoor 756-0978B

Pulley, Drive

$66.99

$

In Stock, Qty 13

0
