ZT-42 (17BA5A4G790) - White Outdoor 42" Zero-Turn Mower (2005) Engine Accessories Parts Diagram

42" Zero-Turn Mower

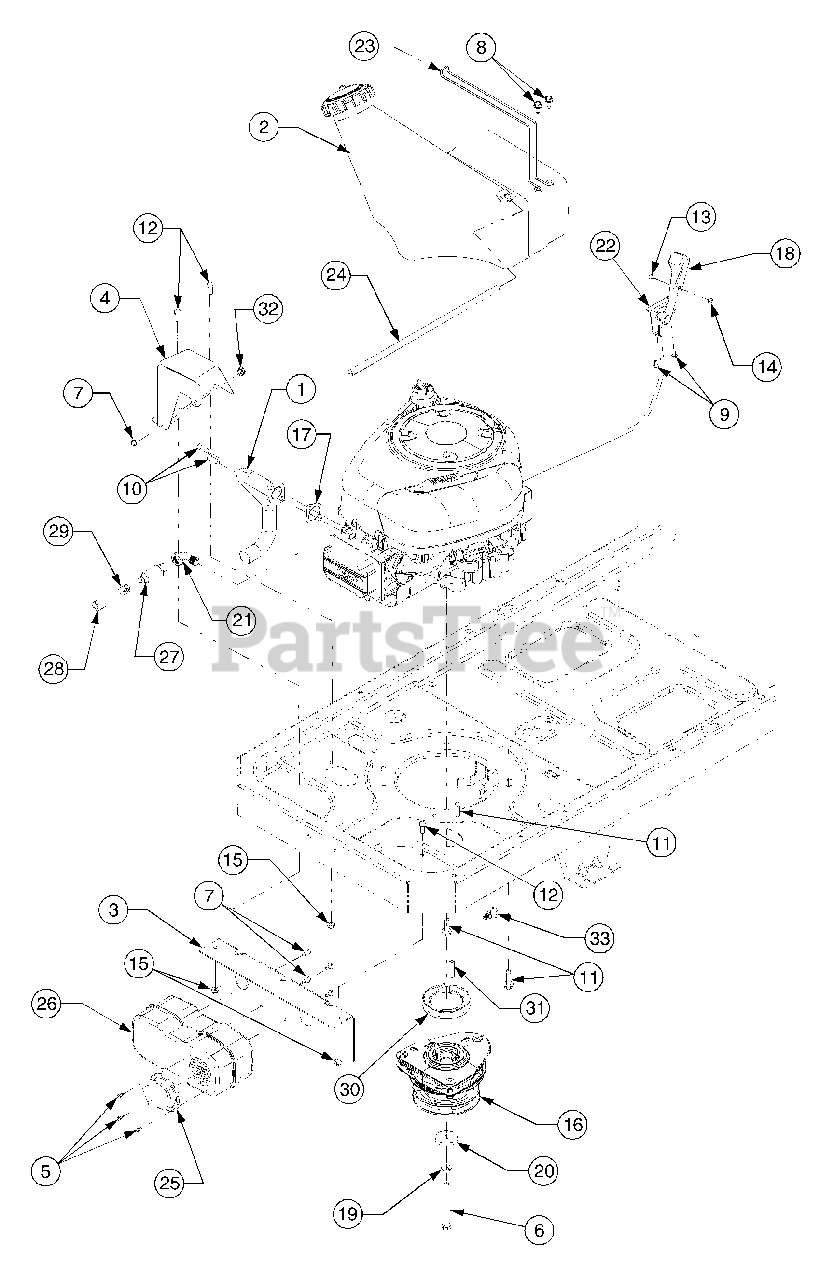

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 603-04176

Tube, Exhaust
(Superseded to 603-04176A)

$103.99

$

Usually ships in 3-6 days

0

2

White Outdoor 651-04058

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

Note: Not shown

$309.99

$

Usually ships in 3-6 days

0

2

White Outdoor 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 3 left!

0

3

White Outdoor 703-05441

Bracket, Muffler Mounting
(Superseded to 703-05441A)

$52.99

$

In Stock, only 3 left!

0

4

White Outdoor 703-05497

Shield, Muffler Tube Heat

$

$

Not available

5

White Outdoor 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 15

0

6

White Outdoor 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

7

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

10

White Outdoor 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

12

White Outdoor 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

14

White Outdoor 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 9

0

15

White Outdoor 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 717-04127

Clutch Assembly, Electric PTO, (GT1-JD08)
(Superseded to 917-04127)

$604.99

$

Usually ships in 3-6 days

0

16

White Outdoor 717-04183

Clutch Assembly, Electric PTO, (GT1A-MT-09)
(Superseded to 917-04622)

$600.99

$

In Stock, only 1 left!

0

17

White Outdoor 721-0208

Gasket, Exhaust (272293)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

20

White Outdoor 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

21

White Outdoor 737-0125

Fitting, Elbow

$

$

Not available

22

White Outdoor 746-04161

Cable, Throttle, 39.0 Lg
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

23

White Outdoor 747-04228

Wire, Tank Mounting
(Superseded to 747-04228A)

$

$

Not available

24

White Outdoor 751-0535-12

Hose, Fuel Line
(Superseded to 751-10349-13)

Note: Cut to approx. 9 inches

$17.99

$

In Stock, only 3 left!

0

24

White Outdoor 726-0205

Clamp, Hose

Note: Not shown

$3.99

$

In Stock, Qty 18

0

25

White Outdoor 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

26

White Outdoor 751-0617A

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 6

0

27

White Outdoor 751-3140

Valve, Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

28

White Outdoor 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

29

White Outdoor 751-3142

Cap, Oil Drain Valve

$4.49

$

In Stock, only 4 left!

0

30

White Outdoor 756-04102A

Pulley, Drive, 3.25 Dia.

$85.99

$

Usually ships in 3-6 days

0

31

White Outdoor 714-04037

Key, Square, 1/4 x 2.25, use with PTO Clutch 717-04127

$

$

Not available

31

White Outdoor 714-0118

Key, Square, 1/4 x 1.5, use with PTO Clutch 717-04183

$6.99

$

In Stock, only 4 left!

0

32

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

33

White Outdoor 726-3055

Clip, Cable Retainer

$6.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05845

Anti-rotation Bracket, units with Mfg Code B095G - E135G
(Superseded to 703-05845-0637)

Note: Not shown, use with 717-04183

Variations

White Outdoor 703-05845-0637

Anti-Rotation Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0
