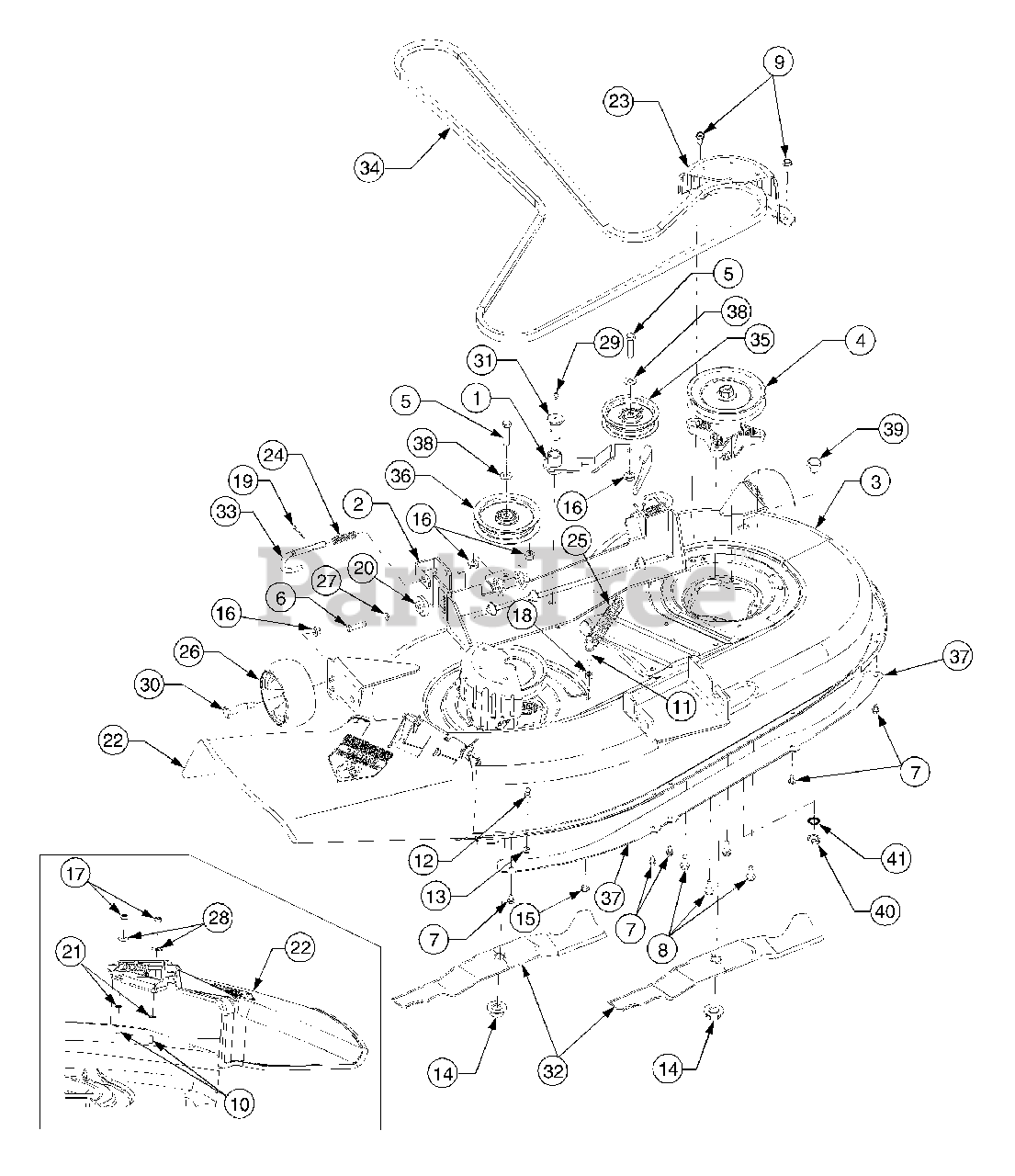

ZT-42 (17BA5A4G790) - White Outdoor 42" Zero-Turn Mower (2005) Deck Assembly Parts Diagram

42" Zero-Turn Mower

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 603-04155

Arm, Idler

Variations

White Outdoor 603-04155-0637

Deck Idler Arm, 42" - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-04155-0650

Deck Idler Arm, 42" - RED METALLIC (0650)

$

$

Not available

White Outdoor 603-04155-0716

Deck Idler Arm, 42" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

White Outdoor 603-04156

Bracket, Deck Lift

Variations

White Outdoor 603-04156-0606

Deck Lift Bracket, Black - MAJESTIC ORANGE (0606)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0638

BRACKET-DECK LIFT - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0650

BRACKET-DECK LIFT - RED METALLIC (0650)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0665

BRACKET-DECK LIFT - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0691

BRACKET-DECK LIFT - BLACK JACK (0691)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-4021

BRACKET-DECK LIFT - CUB YELLOW 2 (4021)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-4033

Deck Lift Bracket, Black - FLINT MICA (4033)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0716

BRACKET-DECK LIFT - CUB YELLOW-99 (0716)

$48.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-6 days

0

3

White Outdoor 603-04157

Housing, Deck
(Superseded to 903-04335C)

Variations

White Outdoor 603-04157-0650

DECK ASSY-42" RZT - RED METALLIC (0650)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04157-0716

DECK ASSY-42" RZT - CUB YELLOW-99 (0716)

$821.99

$

Usually ships in 3-6 days

0

$664.99

$

Usually ships in 3-6 days

0

White Outdoor 777S32599

Graphic, Danger

$9.99

$

Usually ships in 3-6 days

0

White Outdoor 777S30503

Graphic, Danger

$11.99

$

In Stock, only 2 left!

0

White Outdoor 777I22281

Graphic, Instruction
(Superseded to 977I22281)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 777D07777

Graphic, 42 inch cut, White

$

$

Not available

4

White Outdoor 618-0427

Spindle Assembly
(Superseded to 918-04197B)

$157.99

$

In Stock, only 2 left!

0

White Outdoor 756-1188

Pulley

$36.99

$

In Stock, Qty 8

0

5

White Outdoor 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0650

Screw, Hex Wash. Hd. Tapp 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x 75

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 14

0

12

White Outdoor 711-04069

Pin, Grass Catcher, 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-0324

Nut, Hex Insert Lock, 1/4-20 GR8

$3.99

$

In Stock, Qty 16

0

14

White Outdoor 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0431

Nut, Hex Flange, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0

18

White Outdoor 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 717-1553B

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 19

0

21

White Outdoor 726-0233

Nut, Push, .25 x .5

$4.49

$

In Stock, only 3 left!

0

22

White Outdoor 731-1032B

Chute Assembly, Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

White Outdoor 777S30284

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

23

White Outdoor 731-2231B

Cover, Belt

$46.99

$

In Stock, only 3 left!

0

24

White Outdoor 732-0306

Spring, Compression
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

25

White Outdoor 732-0459

Spring, Extension, .94 Dia. x 6.74
(Superseded to 732-0459C)

$18.99

$

Usually ships in 3-6 days

0

26

White Outdoor 734-04039

Wheel, Deck Ball, 5.0
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

27

White Outdoor 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 738-0373

Screw, Shoulder, .498 x 1.53:3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

31

White Outdoor 738-3005A

Screw, Shoulder, .68 x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

32

White Outdoor 942-04087

Blade, Hi-Lift, 21.23
(Superseded to 742-04087-0637)

$48.99

$

In Stock, only 4 left!

0

32

White Outdoor 942-0616A

Blade, 3 in 1, 21.23

$31.99

$

In Stock, Qty 20+

0

33

White Outdoor 747-1116

Rod, Deck Hanger

$12.99

$

Usually ships in 3-6 days

0

34

White Outdoor 754-04045

Belt, V, Type A Sec x 109
(Superseded to 954-04045)

$56.99

$

In Stock, Qty 13

0

35

White Outdoor 756-0627B

Pulley, Idler, 3.5 Dia.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

36

White Outdoor 756-1229

Pulley, Idler, 4.06 Dia

$47.99

$

In Stock, only 3 left!

0

37

White Outdoor 783-1146A

Skirt, Deck
(Superseded to 753-0884)

Variations

White Outdoor 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

38

White Outdoor 736-3072

Washer, Flat, .38 x .93 x .11 HT

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 737-04003B

Nozzle, Deck Water
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

40

White Outdoor 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

41

White Outdoor 736-0760

Washer, Lock,

$4.49

$

In Stock, Qty 7

0
