ZT-42 (17AJ2ACG090) - White Outdoor 42" Zero-Turn Mower (2008) Mower Deck ZT42 Parts Diagram

42" Zero-Turn Mower

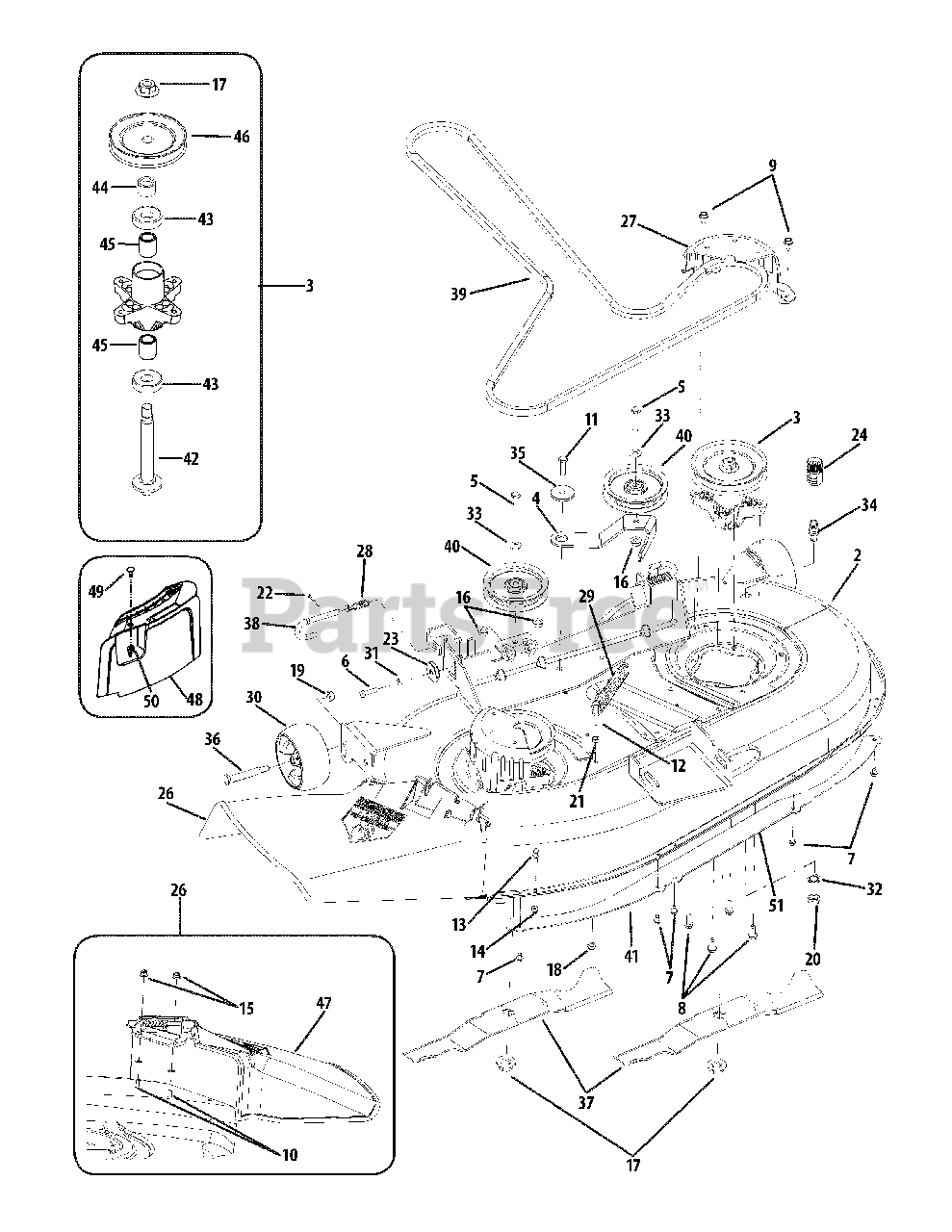

Mower Deck ZT42 Parts Diagram

  • Title

1

White Outdoor 603-04156

Deck Lift Bracket

Variations

White Outdoor 603-04156-0606

Deck Lift Bracket, Black - MAJESTIC ORANGE (0606)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0638

BRACKET-DECK LIFT - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0650

BRACKET-DECK LIFT - RED METALLIC (0650)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0665

BRACKET-DECK LIFT - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0691

BRACKET-DECK LIFT - BLACK JACK (0691)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-4021

BRACKET-DECK LIFT - CUB YELLOW 2 (4021)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-4033

Deck Lift Bracket, Black - FLINT MICA (4033)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 603-04156-0716

BRACKET-DECK LIFT - CUB YELLOW-99 (0716)

$48.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-6 days

0

2

White Outdoor 603-04335C

Deck Housing
(Superseded to 903-04335C)

Variations

White Outdoor 603-04335C-0606

Mower Deck Assembly, 42" RZT - MAJESTIC ORANGE (0606)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-0637

DECK ASSY-42" RZT - POWDER BLACK (0637)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-0638

DECK SHELL 42"-MTD RED - MTD/TROY-BILT RED (0638)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-0650

DECK ASSY-42" RZT - RED METALLIC (0650)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-0691

DECK ASSY-42" RZT - BLACK JACK (0691)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-0716

DECK ASSY-42" RZT - CUB YELLOW-99 (0716)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-4021

DECK ASSY-42" RZT - CUB YELLOW 2 (4021)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-4033

Mower Deck Assembly, 42" RZT - FLINT MICA (4033)

$821.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04335C-0665

DECK ASSY-42" RZT - YARDMAN GREEN (0665)

$821.99

$

Usually ships in 3-6 days

0

$664.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-0624

Spindle Assembly
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 6

0

4

White Outdoor 703-05824B

Idler Arm
(Superseded to 703-05824C-0691)

Variations

White Outdoor 703-05824B-0606

Idler Arm Bracket - MAJESTIC ORANGE (0606)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-0691

Idler Arm Bracket - BLACK JACK (0691)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-0716

Idler Arm Bracket - CUB YELLOW-99 (0716)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-4021

Idler Arm Bracket - CUB YELLOW 2 (4021)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-0638

BRACKET-IDLER ARM - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-0650

BRACKET IDLER ARM - RED METALLIC (0650)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-0665

BRACKET IDLER ARM - YARDMAN GREEN (0665)

$41.99

$

In Stock, Qty 18

0

White Outdoor 703-05824B-4033

Idler Arm Bracket - FLINT MICA (4033)

$41.99

$

In Stock, Qty 18

0

$41.99

$

In Stock, Qty 18

0

5

White Outdoor 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1260A

Hex Washer Head Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0726

Hex Washer Head Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

13

White Outdoor 711-04069

Grass Catcher Pin, 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-0324

Hex Insert Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

15

White Outdoor 712-04064

Hex Insert Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Hex Insert Flange Lock Nut, 3/8 -16

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0417A

Hex Flange Nut, 5/8 -18

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0429

Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

21

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

24

White Outdoor 721-04041

Water Nozzle Adapter
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

25

White Outdoor 726-0233

Push Nut, .25 x .5

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 731-1032B

Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

27

White Outdoor 731-2231B

Belt Cover

$46.99

$

In Stock, only 3 left!

0

28

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

29

White Outdoor 732-0459

Extension Spring, .94 Dia. x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 3 left!

0

30

White Outdoor 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0225

Lock Washer

$4.49

$

In Stock, only 2 left!

0

33

White Outdoor 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 737-04003C

Deck Water Nozzle
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

35

White Outdoor 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

36

White Outdoor 738-3056

Shoulder Screw, .5 x 2.5 x 3/8 -16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

37

White Outdoor 942-0616A

Blade, 3 in 1, 21.23

$31.99

$

In Stock, Qty 20+

0

38

White Outdoor 747-1116

Deck Hanger Rod

$12.99

$

In Stock, Qty 6

0

39

White Outdoor 754-04137

V-Belt Type A Sec x 114.1
(Superseded to 954-04137B)

$44.99

$

In Stock, only 2 left!

0

40

White Outdoor 756-04129

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

41

White Outdoor 783-1146A

Deck Skirt
(Superseded to 753-0884)

Variations

White Outdoor 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

42

White Outdoor 738-1010A

Spindle Shaft, 5.75

$46.99

$

In Stock, only 2 left!

0

43

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

44

White Outdoor 748-0433

Spacer, .820 x 1.15 x .73

$5.99

$

In Stock, Qty 5

0

45

White Outdoor 750-1000

Spacer, .8 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

46

White Outdoor 756-1227

Deck Pulley, 6.3 Dia
(Superseded to 956-1227)

$26.99

$

In Stock, only 4 left!

0

47

N/A

Chute Deflector

Note: Order Ref. No. 26

$

$

Not available

48

White Outdoor 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

49

White Outdoor 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 783-1146A

Deck Skirt
(Superseded to 753-0884)

Variations

White Outdoor 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0
