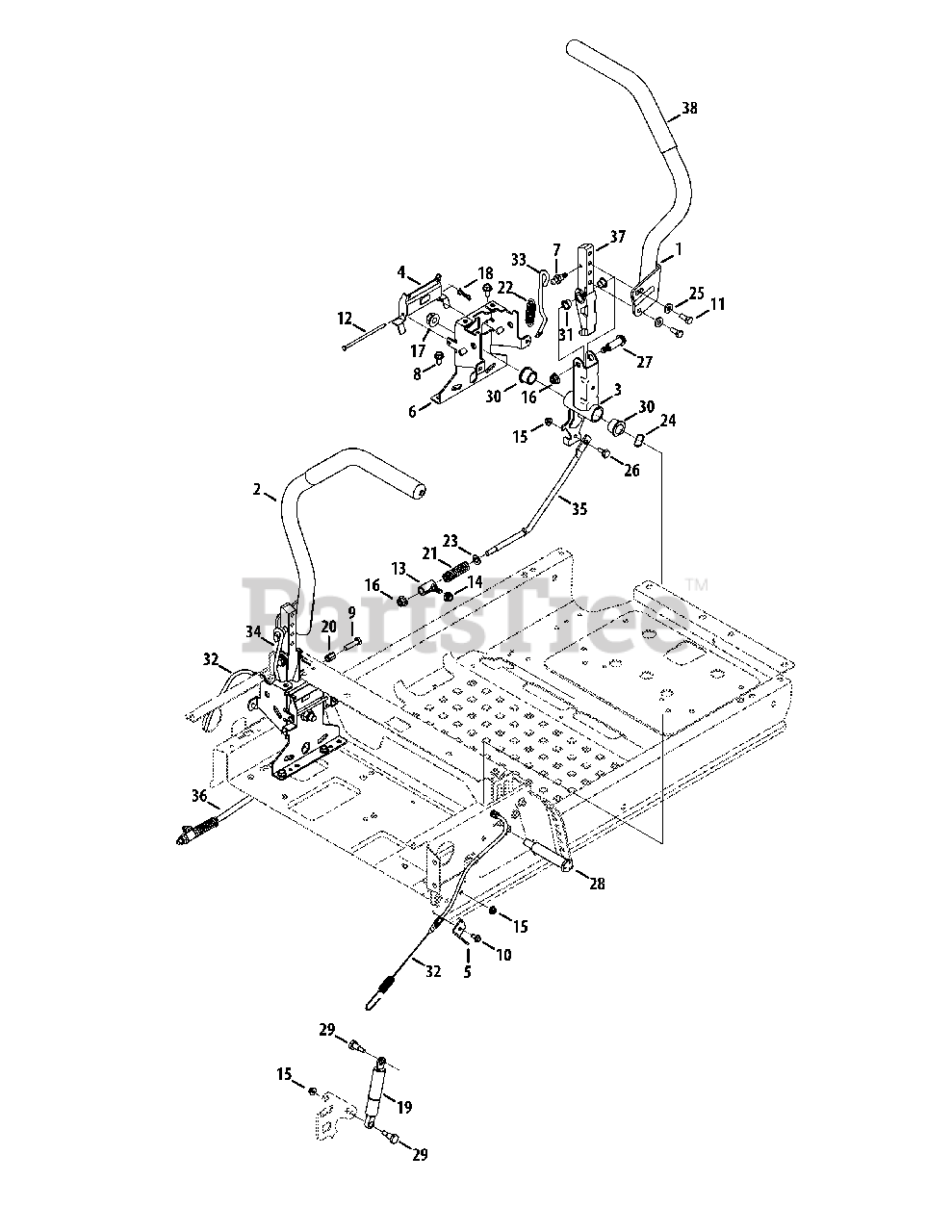

ZT-42 (17AFCACS897) - Columbia 42" Zero-Turn Mower (2013) Controls Parts Diagram

42" Zero-Turn Mower

Controls Parts Diagram

  • Title

1

MTD 603-05016A-0637

RH Lapbar Lever Assembly

$63.99

$

Usually ships in 3-6 days

0

2

MTD 603-05019A-0637

LH Labpar Lever Assembly

$63.99

$

Usually ships in 3-6 days

0

3

MTD 603-05033A-0637

Lapbar Pivot Bracket

$42.99

$

Usually ships in 3-6 days

0

4

MTD 703-09069-0637

Brake Lever Actuator

$6.49

$

Usually ships in 3-6 days

0

5

MTD 703-09220-0637

Brake Cable Bracket

$4.49

$

Usually ships in 3-6 days

0

6

MTD 703-09325-0637

Lapbar Pivot Support Bracket
(Superseded to 703-09325C-0637)

$32.99

$

Usually ships in 3-6 days

0

7

MTD 710-04471

Shoulder Ball Screw 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

8

MTD 710-04484

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0528

Hex Cap Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Hex Washer Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1880

Hex Head Screw 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

12

MTD 711-06068

Pin .188 x 4.1

$6.99

$

Usually ships in 3-6 days

0

13

MTD 711-06094A

Ferrule, 3/8 ID x .420 Shldr

$15.99

$

In Stock, only 1 left!

0

14

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04150

Flange Lock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

18

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

19

MTD 727-04400A

Dampener .87 OD x 7.06 Lg

$63.99

$

In Stock, only 1 left!

0

20

MTD 728-05012

Nut 5/16-18

$5.49

$

Usually ships in 3-6 days

0

21

MTD 732-05075

Compression Spring .45 x 3.215

$4.49

$

In Stock, only 2 left!

0

22

MTD 732-1162

Extension Spring .56 x 2.31 x .105

$8.99

$

In Stock, only 3 left!

0

23

MTD 936-0140

Flat Washer .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

24

MTD 736-0621

Washer, Wave .785 x 1.0 x .012

$17.99

$

In Stock, Qty 11

0

25

MTD 936-3008

Flat Washer .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

26

MTD 738-04419A

Shoulder Screw .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-05025

Shoulder Screw .498 Dia. x 1.296

$7.49

$

Usually ships in 3-6 days

0

28

MTD 738-05033

Shoulder Screw .75 x 3.25 x 1/2-13

$16.99

$

In Stock, only 3 left!

0

29

MTD 738-05034

Shoulder Screw .395 Dia. x .56

$7.49

$

In Stock, only 1 left!

0

30

MTD 741-04050

Bearing .75 x 1.00 x .73

$4.49

$

Usually ships in 3-6 days

0

31

MTD 741-0491

Flange Bearing .500 x .34

$5.49

$

In Stock, only 3 left!

0

32

MTD 946-05008

Parking Brake Cable

$35.99

$

In Stock, Qty 7

0

33

MTD 747-06085

Lapbar Detent Rod, RH

$6.49

$

Usually ships in 3-6 days

0

34

MTD 747-06086

Lapbar Detent Rod, LH

$6.49

$

Usually ships in 3-6 days

0

35

MTD 747-06149

Hydro Control Rod, RH
(Superseded to 747-06149A)

$15.99

$

Usually ships in 3-6 days

0

36

MTD 747-06160

Hydro Control Rod, LH
(Superseded to 747-06160A)

$15.99

$

Usually ships in 3-6 days

0

37

MTD 748-05000

Lower Arm

$69.99

$

Usually ships in 3-6 days

0

38

MTD 720-05008

Lapbar Grip, Long 1.125 x 12.00 Lg

$25.99

$

Usually ships in 3-6 days

0
