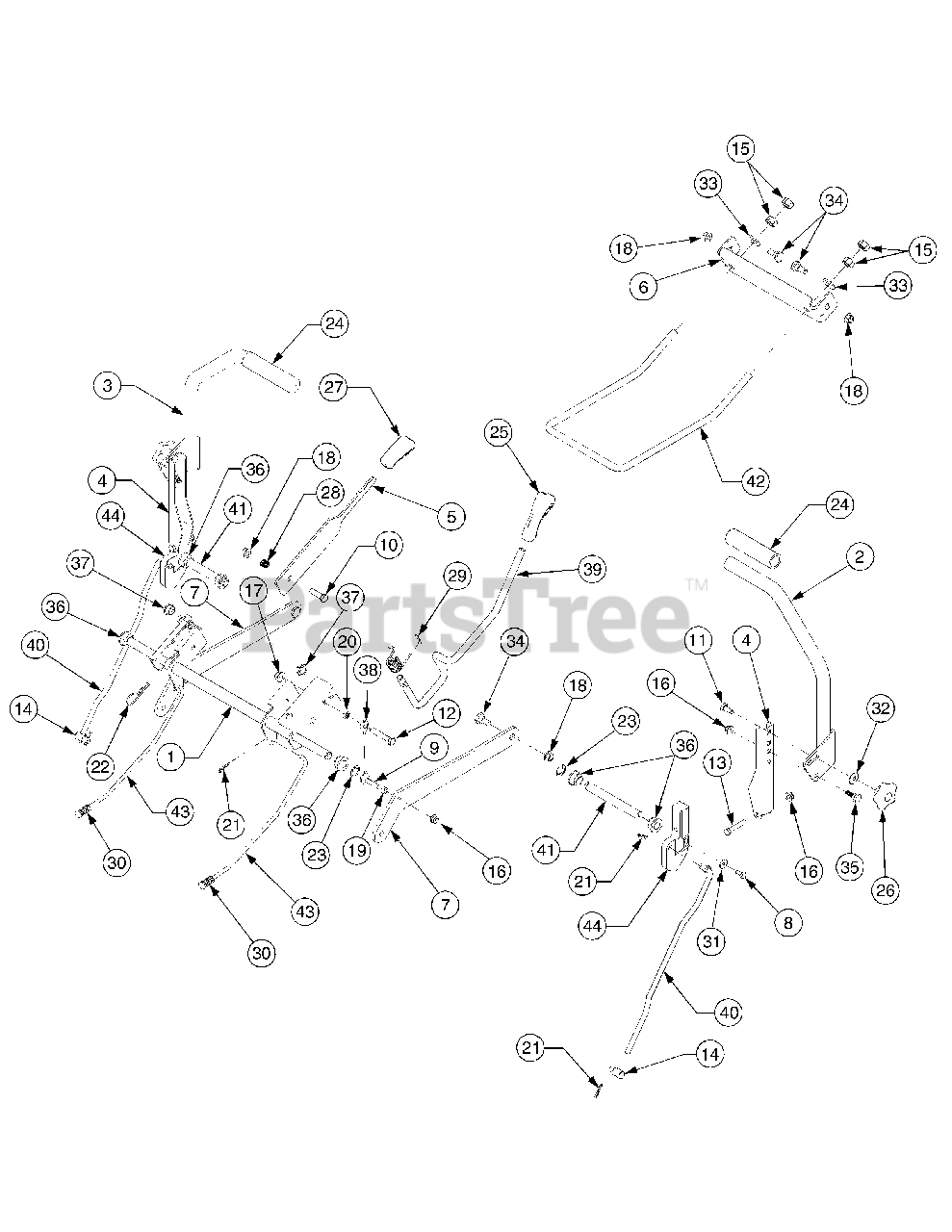

ZT-42 (17AA554G790) - White Outdoor 42" Zero-Turn Mower (2006) Controls Parts Diagram

42" Zero-Turn Mower

Controls Parts Diagram

  • Title

1

White Outdoor 603-04160A

Shaft Assembly, Deck Lift
(Superseded to 603-04160C-0637)

$161.99

$

Usually ships in 3-6 days

0

2

White Outdoor 603-04322

Lever, Lapbar, RH

Variations

White Outdoor 603-04322-0637

Right Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-04322-0662

HANDLE-RH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 603-04322-4021

HANDLE-RH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 603-04322-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 603-04322-0709

HANDLE-RH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 603-04322-4038

HANDLE-RH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$

$

3

White Outdoor 603-04324

Lever, Lapbar, LH

Variations

White Outdoor 603-04324-0637

Left Lapbar Handle - POWDER BLACK (0637)

$75.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04324-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

White Outdoor 603-04324-0662

HANDLE-LH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 603-04324-4021

HANDLE-LH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 603-04324-0709

HANDLE-LH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 603-04324-4038

HANDLE-LH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$65.99

$

Usually ships in 3-6 days

0

4

White Outdoor 703-05387A

Bracket, Lapbar Pivot
(Superseded to 703-05387B)

$28.99

$

In Stock, Qty 5

0

5

White Outdoor 703-05396

Handle, Brake
(Superseded to 703-05396A-0637)

Variations

White Outdoor 703-05396-0637

Brake Handle - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

6

White Outdoor 703-05414A

Bracket, Front Deck Hanger

Variations

White Outdoor 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

7

White Outdoor 703-05793

Arm, Deck Lift
(Superseded to 703-05793A)

Variations

White Outdoor 703-05793-0606

Deck Lift Arm - MAJESTIC ORANGE (0606)

$53.99

$

In Stock, Qty 7

0

White Outdoor 703-05793-0638

ARM-DECK LIFT - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, Qty 7

0

White Outdoor 703-05793-0674

ARM-DECK LIFT - YARDMAN YELLOW (0674)

$53.99

$

Usually ships in 3-6 days

0

White Outdoor 703-05793-0716

Deck Lift Arm - CUB YELLOW-99 (0716)

$53.99

$

In Stock, Qty 7

0

White Outdoor 703-05793-0650

ARM-DECK LIFT - RED METALLIC (0650)

$53.99

$

In Stock, Qty 7

0

White Outdoor 703-05793-0665

ARM-DECK LIFT - YARDMAN GREEN (0665)

$53.99

$

In Stock, Qty 7

0

$43.99

$

Usually ships in 3-6 days

0

8

White Outdoor 710-0433

Screw, Hex Lock, 1/4-20 x .62 GR5

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0805

Screw, Hex Cap, 5/16-18 x 1.5 GR5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3105

Bolt, Carriage, 5/16-18 x .875 (If equipped)

Note: use with 720-04072 knob

$6.49

$

In Stock, only 2 left!

0

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, Gr F, Nylon (If equipped)

Note: use with 710-3008 Hex Bolt 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

15

White Outdoor 712-0206

Nut, Hex Jam, 1/2-13 GR5

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-04063

Nut, Hx Flange Insert Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-04065

Nut, Hx Flange Insert Lck, 3/8-16GrF

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3007

Nut, Hex Jam, 5/16-18 GR5

$6.99

$

In Stock, only 2 left!

0

20

White Outdoor 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

21

White Outdoor 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-3020

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 716-0106

E-Ring , .625 Dia. Shaft

$4.49

$

In Stock, Qty 12

0

24

White Outdoor 720-0274

Grip, Hand

$11.99

$

In Stock, Qty 8

0

25

White Outdoor 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

26

White Outdoor 720-04072

Knob, Nut, 5/16-18 Nylon Lock (If equipped)
(Superseded to 720-04072A)

Note: use with Carriage Bolt, 5/16-18 x .875

$6.99

$

In Stock, Qty 20+

0

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5) (If equipped)

Note: use with Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0275

Washer, Flat, .344 x .688 x .065 (If equipped)

Note: use with Hex Bolt 5/16-18 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

27

White Outdoor 731-04735

Grip, Handle

$20.99

$

In Stock, only 1 left!

0

28

White Outdoor 732-0334

Spring, Compression

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

30

732-04350

Spring, Compression

$

$

Not available

31

White Outdoor 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0425

Washer, Bell, .325 x .93 x .045

$4.99

$

In Stock, Qty 13

0

33

White Outdoor 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

34

White Outdoor 738-0143

Screw, Shoulder, .498 x .340:3/8-16

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 738-0296

Screw, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

37

White Outdoor 741-3074

Bearing, Flange, .626 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 746-0970

Cable, Deck Lift, 5.05 Long

$12.99

$

In Stock, only 4 left!

0

39

White Outdoor 747-04224

Rod, Deck Lift Handle

$

$

Not available

40

White Outdoor 747-04225A

Rod, Lapbar Control

$42.99

$

In Stock, only 1 left!

0

41

White Outdoor 747-04226

Shaft, Control
(Superseded to 747-04226A)

$52.99

$

Usually ships in 3-6 days

0

42

White Outdoor 747-04401A

Rod, Deck Front Hanger

$58.99

$

In Stock, only 1 left!

0

43

White Outdoor 747-04491

Rod, Brake
(Superseded to 947-04065)

$39.99

$

In Stock, only 1 left!

0

44

White Outdoor 748-04052

Hub, Control

$70.99

$

Usually ships in 3-6 days

0
