ZT 4000 B 2748 (5900960) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount & Floor Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

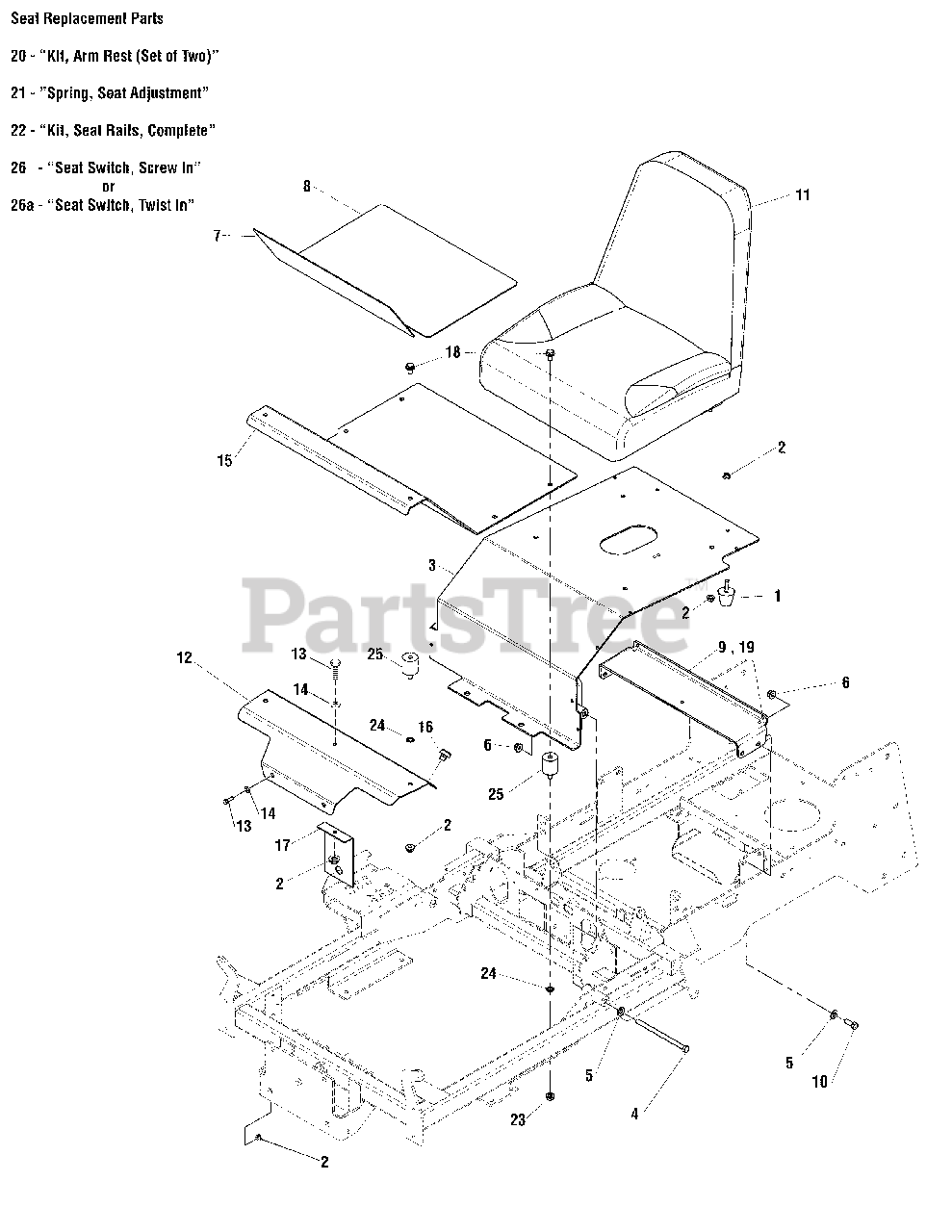

Seat Mount & Floor Group Parts Diagram

  • Title

1

Simplicity 5022612SM

BUMPER, RUBBER 5/16-18

$23.99

$

In Stock, only 2 left!

0

2

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 5403392CSM

WELD, SEAT PLATE - RED

$307.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025013X48SM

BOLT, 3/8-16 X 6" GD5 YZ

$5.99

$

In Stock, Qty 20+

0

5

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5101007SM

SAFETY WALK, 17.17 X 6.00

$32.99

$

Usually ships in 2-12 days

0

8

Simplicity 5100999SM

SAFETY WALK, 17.13 X 11.50

$29.99

$

Usually ships in 2-12 days

0

9

Simplicity 5402688CSM

WELD, SEAT SUPPORT - ORG

Note: (S/N: 2012635841 & Below)

$54.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5 YZ

$3.99

$

In Stock, Qty 6

0

11

Simplicity 5100909SM

SEAT, NO ARM REST

$551.99

$

Usually ships in 2-12 days

0

12

Simplicity 5403389CSM

PLATE, FLOOR PAN, FRONT - IS500Z

$57.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025292SM

WASHER, 5/16" GD.9 FLAT

$3.99

$

In Stock, Qty 17

0

15

Simplicity 5403390CSM

PLATE, FLOOR PAN, REAR - IS500Z

$153.99

$

Usually ships in 2-12 days

0

16

Simplicity 197546SM

MNT, VBRTN
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

17

Simplicity 5403403CSM

PLATE, SUPPORT, FRONT FLOOR

$19.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025481SM

BOLT, 5/16-18 X 5/8, FLANGE SERRATED

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5403754CSM

PLATE, SEAT SUPPORT, ZT4000 - ORG

Note: (S/N: 2012635842 & Above)

$80.99

$

Usually ships in 2-12 days

0

20

Simplicity 1686907SM

KIT, ARM REST (SET OF TWO)(SV)

$139.99

$

Usually ships in 2-12 days

0

21

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

22

Simplicity 5061599X1SM

KIT, SEAT RAILS (COMPLETE)(SV)

$192.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025127SM

NUT, 5/16-18 HEX NYLOCK FLANGE SMALL

$3.49

$

In Stock, Qty 7

0

24

Simplicity 5025480SM

WASHER, 3/8" INT TOOTH LOCK

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 35097SM

MTN, VBRTN, 30 DURO
(Superseded to 35097GS)

$16.99

$

In Stock, only 2 left!

0

26

Simplicity 5100540

SWITCH, MILSCO SEAT, 2 SCREW
(Superseded to 5100540YP)

$32.99

$

In Stock, only 1 left!

0

26a

Snapper 5100541

SWITCH, MILSCO SEAT, TWIST IN

$29.99

$

Usually ships in 2-12 days

0
