ZT 4000 B 2748 (5900960) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Rear Bumper & ROPS Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

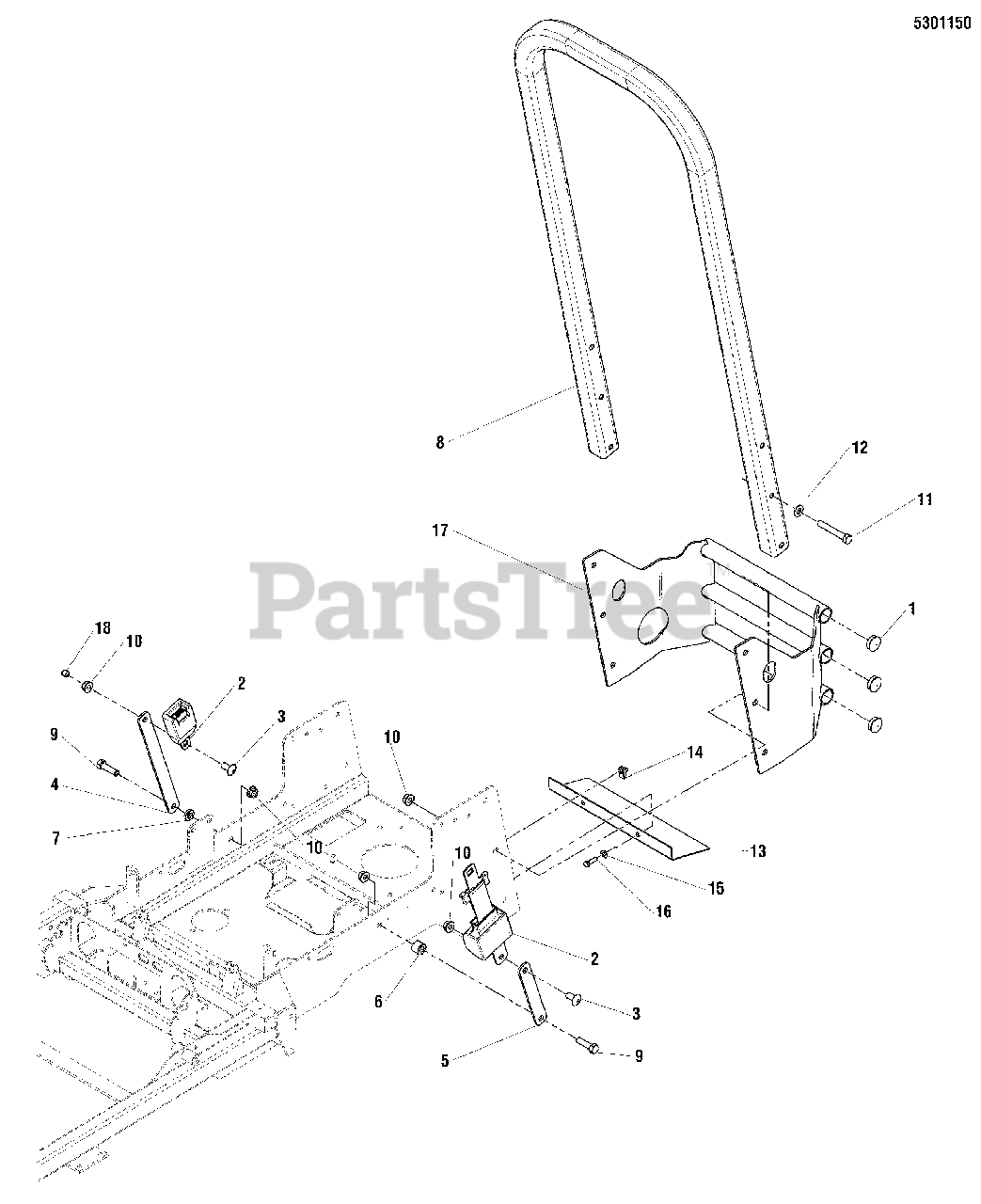

Rear Bumper & ROPS Group Parts Diagram

  • Title
1

Simplicity 5023484SM

PLUG, PANEL, 1.25 - BLACK

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5100139SM

SEAT BELT, RETRACTING - ASSM

$103.99

$

Usually ships in 2-12 days

0

3

Simplicity 5100267SM

SCREW, 1/2-13 X 1.00, SHCS

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5400847AYP

MOUNT, SEAT BELT - RH - BLK

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 5410295A

PLATE, SEAT BELT ANCHOR - BLK
(Superseded to 5410295AYP)

$7.49

$

Usually ships in 2-12 days

0

6

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75

$7.49

$

In Stock, Qty 6

0

7

Simplicity 5100520SM

SPACER, .515 X 1.00 X .218

$6.49

$

In Stock, only 2 left!

0

8

ROPS (Call 1-800-933-6175 x708 if replacing a ROPS)

$

$

Not available

9

Simplicity 5025017X14

BOLT, 1/2-13 X 1-3/4" GD5 YZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

10

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

11

Simplicity 5025017X26SM

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, YZ

$5.49

$

In Stock, only 2 left!

0

12

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 12

0

13

Simplicity 5402618A

PLATE, HEAT SHIELD - BLK
(Superseded to 5402618AYP)

$33.99

$

Usually ships in 2-12 days

0

14

Simplicity 5022308SM

BODY CLIP, 5/16-18 X 1/2 DEEP

$5.99

$

In Stock, only 2 left!

0

15

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

17

Simplicity 5402547CSM

WELD, BUMPER - IS500Z - ORG

Note: (S/N: 2016315425 & Below)

$265.99

$

Usually ships in 2-12 days

0

18

Simplicity 5101049SM

CAP, VINYL - .750 X .50 - BLK

$2.99

$

Usually ships in 2-12 days

0

18

Simplicity 5410266CYP

WELD, BUMPER, IS500Z - ORG

Note: (S/N: 2016315426 & Above)

$

$

Not available
