ZT 4000 B 2748 (5900960) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

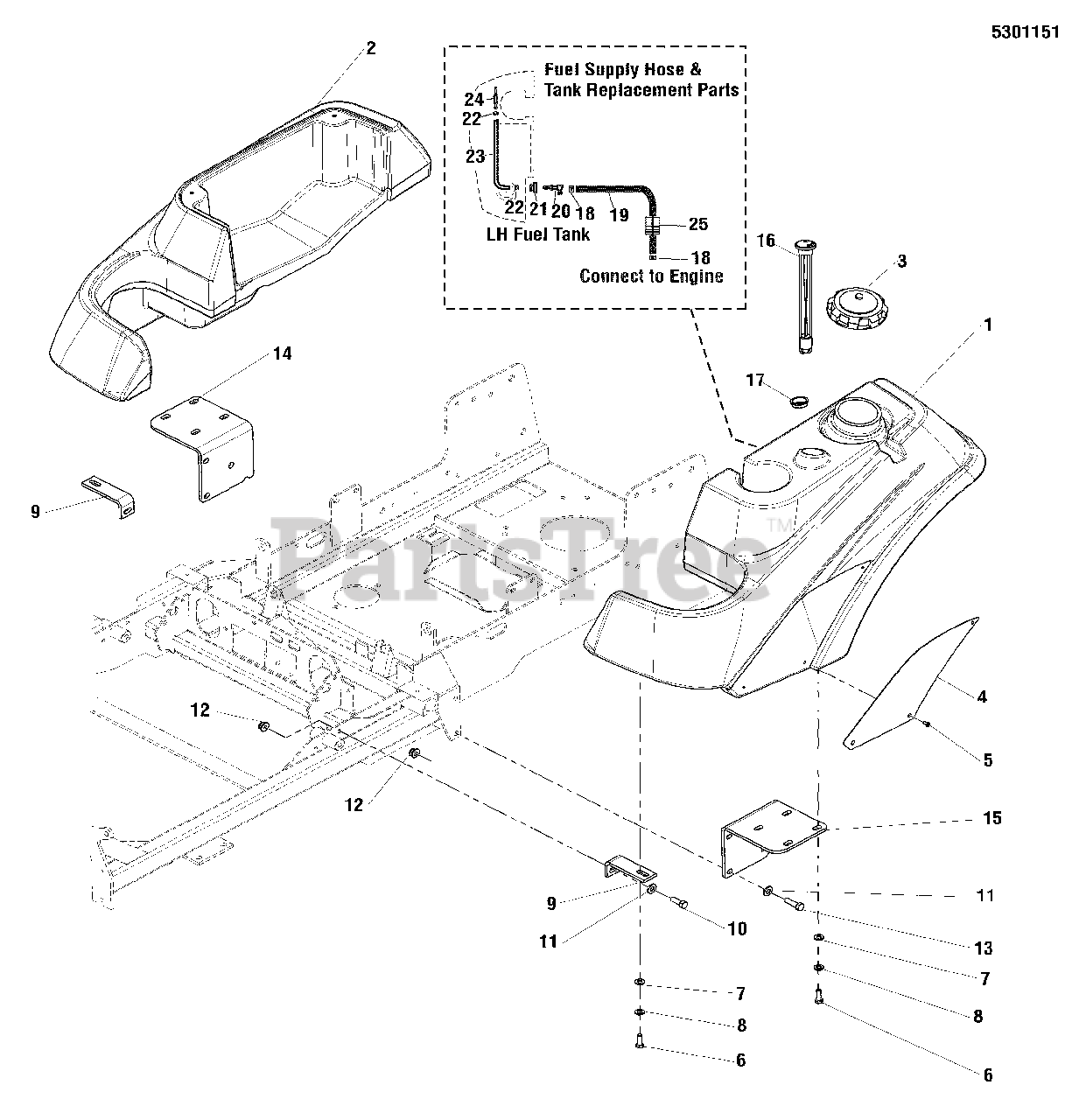

Fuel Tank & Mount Group Parts Diagram

  • Title

1a

Simplicity 5103176SM

TANK, FUEL, LH, 1500Z

Note: (S/N: 2014923026 & ABOVE)

$

$

Not available

1b

Simplicity 5049947SM

TANK, FUEL, CITATION/ZT400 - LH
(Superseded to 5103301YP)

Note: (S/N: 2014923025 & BELOW)

$555.99

$

Usually ships in 2-12 days

0

2

Simplicity 5049948SM

TANK, FENDER, CITATION/ZT4000 - RH

$308.99

$

In Stock, only 1 left!

0

3a

Simplicity 5103005SM

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 1759036YP)

Note: (S/N: 2014923026 & ABOVE)

$

$

Not available

3b

Simplicity 5101272SM

FUEL CAP, 3.5", VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & BELOW)

$30.99

$

In Stock, Qty 20+

0

4

Simplicity 5400250CSM

BADGE, CITATION, ORANGE

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025386SM

SCREW, #10-24 X 3/8 ALLEN BHBZ

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, Qty 17

0

8

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5400012A

MOUNT, TANK, FRONT - BLK
(Superseded to 5400012AYP)

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, Qty 6

0

11

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 5

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0

14

Simplicity 5402557A

WELD, TANK MOUNT-RH-BLK
(Superseded to 5402557AYP)

$55.99

$

Usually ships in 2-12 days

0

15

Simplicity 5402556A

WELD, TANK MOUNT-LH-BLK
(Superseded to 5402556AYP)

$55.99

$

Usually ships in 2-12 days

0

16

Simplicity 5022917SM

GUAGE, FUEL LEVEL

$50.99

$

In Stock, Qty 20+

0

17

Simplicity 5022917X1SM

GROMMET

$6.99

$

In Stock, Qty 5

0

18

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

19

Simplicity 5050831X22SM

HOSE, FUEL, 1/4 IN, LW PRMTN

$

$

Not available

20

SEE REF # 23

$

$

Not available

21

SEE REF # 23

$

$

Not available

22

SEE REF # 23

$

$

Not available

23

Simplicity 5101149SM

HOSE ASSEMBLY

$25.99

$

In Stock, only 1 left!

0

24

SEE REF # 23

$

$

Not available

25

Simplicity 5050833X20SM

WIRE LOOM, 1/2 ID, 20.00 LONG

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 5021029SM

CABLE TIE, 12"

Note: (Not shown - Used to route fuel line.)

$

$

Not available

27

Simplicity 5050833X9SM

WIRE LOOM, 1/2 ID, 9.00 LONG

Note: (Not Shown - Between Filter and Engine)

$3.49

$

Usually ships in 2-12 days

0
