ZT 4000 B 2748 (5900960) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton 44" & 48" Mower Deck - Striper Roller Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

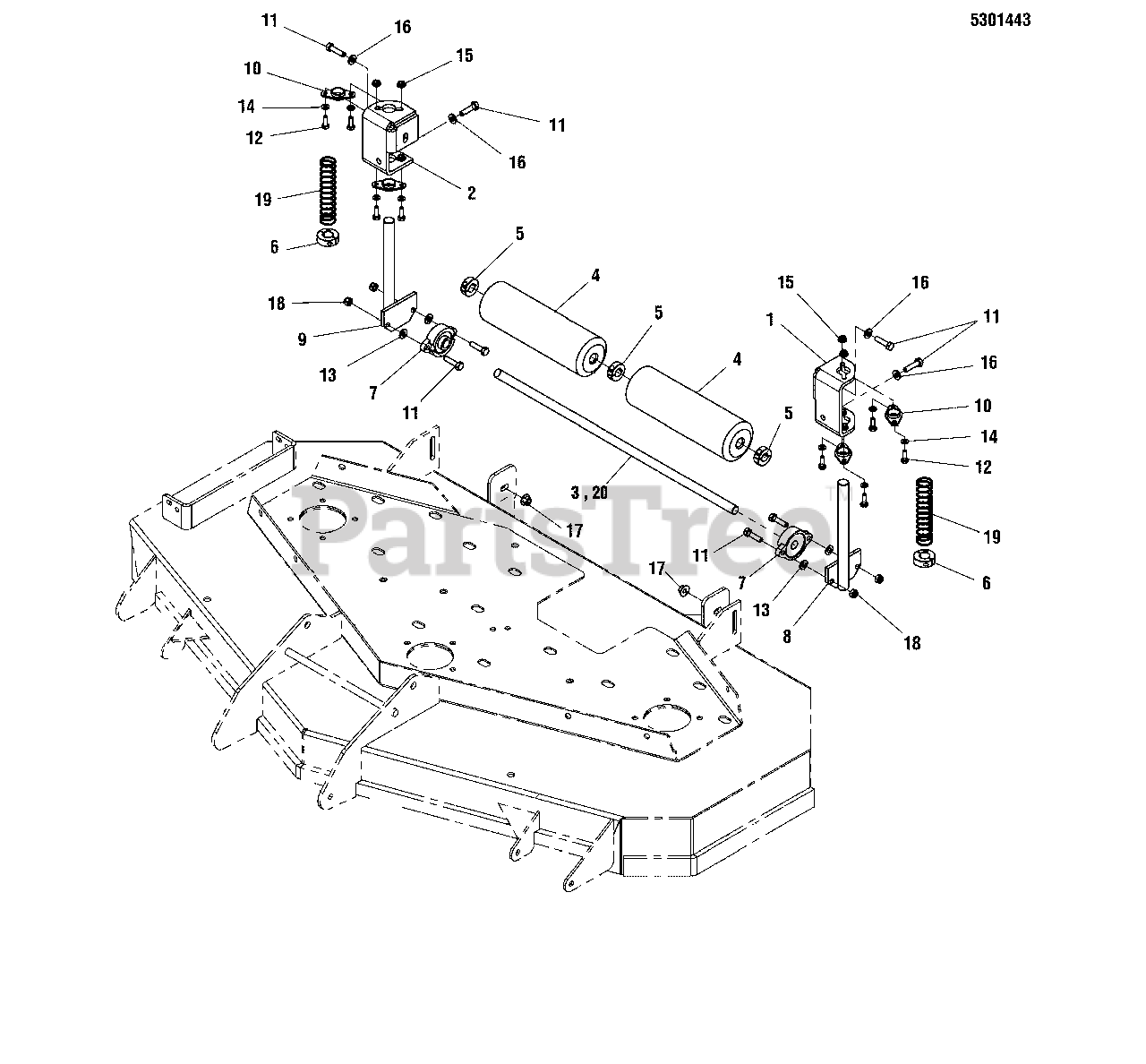

44" & 48" Mower Deck - Striper Roller Group Parts Diagram

  • Title

1

Simplicity 5401299CSM

WELD, MOUNT, STRIPER, LH - ORG

$50.99

$

In Stock, only 1 left!

0

2

Simplicity 5401298CSM

WELD, MOUNT, STRIPER, RH - ORG

$50.99

$

In Stock, only 2 left!

0

3

Simplicity 5046903SM

SHAFT, ROLLER

Note: (48" Models Only)

$29.99

$

In Stock, Qty 6

0

4

Simplicity 5020785SM

ROLLER, DECK

$29.99

$

In Stock, Qty 20+

0

5

Simplicity 5020441SM

COLLAR, 5/8 SPLIT

$14.99

$

In Stock, Qty 20+

0

6

Simplicity 5020594SM

COLLAR, 3/4 DOUBLE SPLIT

$19.99

$

In Stock, only 2 left!

0

7

Simplicity 5022846SM

BEARING-FLANGE, 5/8

$51.99

$

In Stock, Qty 20+

0

8

Simplicity 5046900CSM

SHAFT, STRIPER GUIDE WELD - LH

$41.99

$

In Stock, only 1 left!

0

9

Simplicity 5046901CSM

SHAFT, STRIPER GUIDE WELD - RH

$41.99

$

In Stock, only 1 left!

0

10

Simplicity 5023155SM

BUSHING, FLANGE

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, Qty 17

0

17

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

18

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 5022845SM

SPRING, COMP, 1.1 X OD. X .085 WIRE X 5

$6.49

$

In Stock, only 2 left!

0

20

Simplicity 5050503X21P87

BAR, 5/8 CRR 21.87 LONG
(Superseded to 5050503X21P87SM)

Note: (44" Models Only)

$19.99

$

Usually ships in 2-12 days

0
