ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Rear Suspension Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

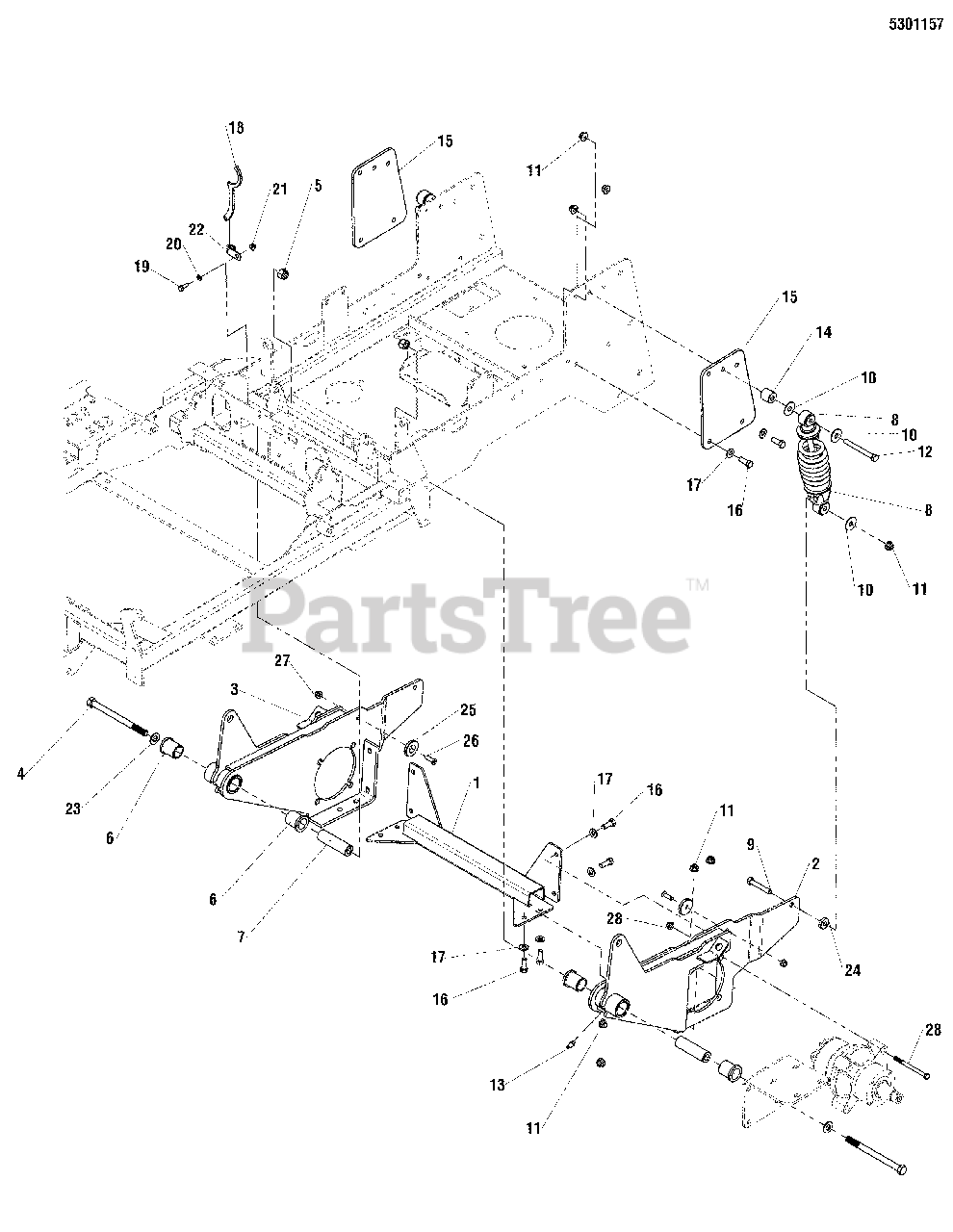

Rear Suspension Group Parts Diagram

  • Title

1

Simplicity 5600256

KIT, TIE BAR (5404064A)
(Superseded to 5600256YP)

$207.99

$

Usually ships in 2-12 days

0

2

Simplicity 5402523CSM

WELD, MOTOR MOUNT - LH-IS500-ORG

$433.99

$

Usually ships in 2-12 days

0

3

Simplicity 5402524CSM

WELD, MOTOR MOUNT - RH-IS500-ORG

$433.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025017X52SM

BOLT, 1/2-13 X 6-1/2 GD5 YZ

$10.99

$

In Stock, only 2 left!

0

5

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

6

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 10

0

7

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 5023436SM

SHOCK ABSORBER, # 7417-106

$210.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ

$4.49

$

In Stock, Qty 6

0

10

Simplicity 5025165SM

WASHER, 3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025013X28SM

BOLT, 3/8-16 X 3-1/2 GD5 YZ

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 5020020SM

GREASE FITTING, 45 DEGREE

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 5100896SM

SPACER, .390 X 1.00 X 1.00 - YZ

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 5402456CSM

PLATE, FRAME SUPPORT - IS500-ORG

$46.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5 YZ

$3.99

$

In Stock, Qty 12

0

17

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 5

0

18

Simplicity 5022853SM

SPANNER WRENCH

$15.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5025430SM

CLAMP, 5/16, DOUBLE, WIRE & TUBE

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 12

0

24

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, Qty 7

0

25

Simplicity 5102701

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

26

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

28

Refer to Hydraulic Components Service Group

$

$

Not available
