ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Parking Brake Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

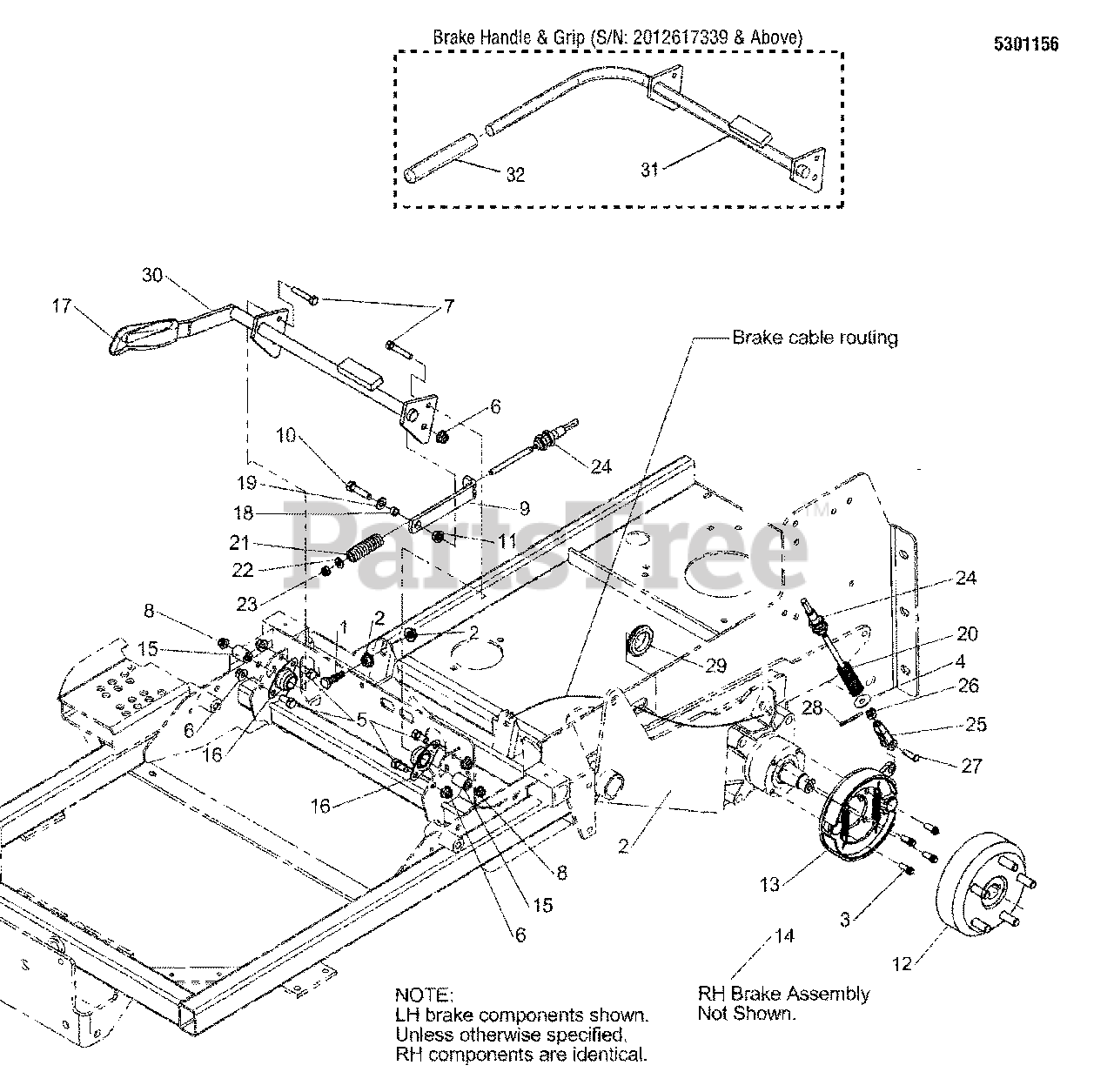

Parking Brake Group Parts Diagram

  • Title

1

Simplicity 5025011X9SM

BOLT, 5/16-18 X 1-1/8 GD5

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

3

Simplicity 5023490SM

BOLT, 5/16-18 X 3/4 12PT FLANGE - PATCH

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025337SM

WASHER, 5/16 USS
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 5061794A

LINK, BRAKE STOP, 6.0 - BLK
(Superseded to 5061794AYP)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

12a

Simplicity 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

Note: (S/N: 2015208612 & Above)

$225.99

$

Usually ships in 2-12 days

0

12

Simplicity 5023368

DRUM,1-1/4TAPER,5 BOLT
(Superseded to 5102896)

Note: (S/N: 2015208611 & Below)

$225.99

$

Usually ships in 2-12 days

0

13

Simplicity 5023500

BRAKE ASSEMBLY, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$271.99

$

Usually ships in 2-12 days

0

13a

Simplicity 5102897

BRAKE SHOE ASM, LH, KNOTT
(Superseded to 5102897YP)

Note: (S/N: 2015208612 & Above)

$165.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023501

BRAKE ASSEMBLY, RH
(Superseded to 5023501SM)

Note: (Not Shown - S/N: 2015208611 & Below)

$271.99

$

In Stock, only 1 left!

0

14a

Simplicity 5102898

BRAKE SHOE ASM, RH, KNOTT
(Superseded to 5102898YP)

Note: (Not Shown - S/N: 2015208612 & Above)

$171.99

$

Usually ships in 2-12 days

0

15

Simplicity 5042134SM

SPACER, .32 X .75 X 1.06

$6.49

$

In Stock, only 1 left!

0

16

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$13.99

$

In Stock, Qty 5

0

17

Simplicity 5100171SM

GRIP, BLACK FLEXIBLE

Note: (S/N: 2012619803 & Below)

$13.99

$

In Stock, only 3 left!

0

18

Simplicity 5041930SM

SPACER, .38 X .50 X .27

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

20

Simplicity 5023320SM

SPRING, COMPRESSION

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 5022361SM

SPRING-COMP, .428ID X 2.50LG X .155WR

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

24

Simplicity 5023324SM

CABLE, PARKING BRAKE

$81.99

$

Usually ships in 2-12 days

0

25

Simplicity 5020979SM

CLEVIS, 5/16-24, PLASTIC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025033SM

NUT, 5/16-24 HEX
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 5025213X8SM

PIN, CLEVIS, 5/16 X 1 YZ

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025211SM

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ

$3.99

$

In Stock, only 1 left!

0

29

Simplicity 5021397SM

GROMMET, 1-1/4

$6.49

$

Usually ships in 2-12 days

0

30

Simplicity 5049831CSM

WELD, BRAKE SHAFT
(Superseded to 5403631CSM)

Note: (S/N: 2012619803 & Below)

$49.99

$

Usually ships in 2-12 days

0

31

Simplicity 5403631A

WELD, BRAKE SHAFT - BLK
(Superseded to 5403631AYP)

Note: (S/N: 2012619804 & Above)

$63.99

$

Usually ships in 2-12 days

0

32

Simplicity 5101038SM

GRIP, FOAM 3/4 ID X 6 X .187

Note: (S/N: 2012619804 & Above)

$7.49

$

In Stock, only 1 left!

0
