ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Motion Control Group Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

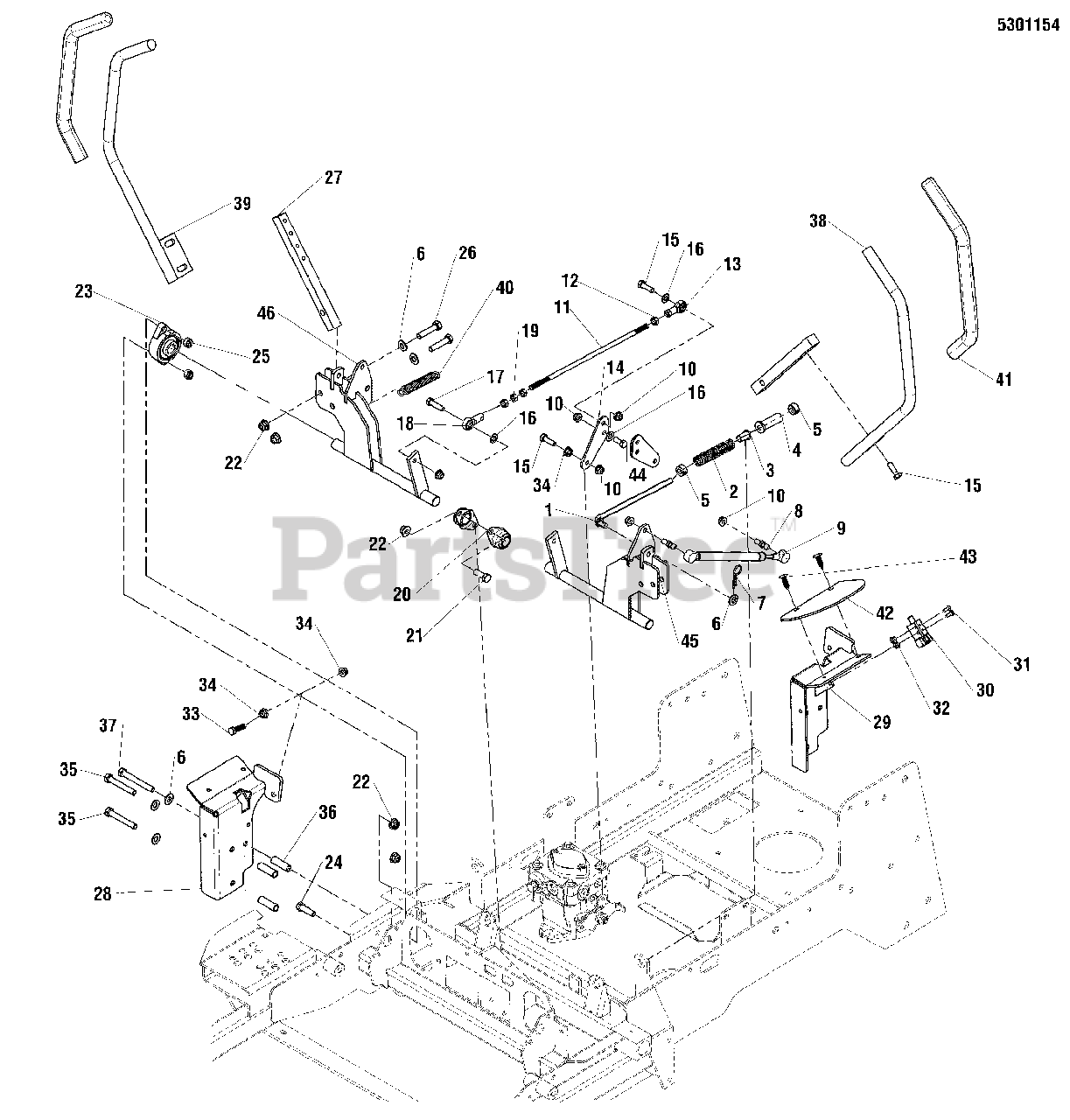

Motion Control Group Parts Diagram

  • Title

1

Simplicity 5100947SM

ROD, NEUTRAL RETURN, CZ

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022645SM

SPRING, REVERSE RETURN

$9.49

$

In Stock, only 1 left!

0

3

Simplicity 5023260SM

BUSHING, FLANGE 3/8ID X 7/8 LONG

$6.49

$

In Stock, only 2 left!

0

4

Simplicity 5104375YP

FLANGED BUSHING, 3/8IDX.63ODX.8125FL

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 5010546SM

COLLAR, 3/8" SET

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

7

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.49

$

In Stock, only 1 left!

0

8

Simplicity 5100941SM

BALL STUD, 5/16 X .50, (# PC-477-2)

$4.49

$

In Stock, Qty 12

0

9

Simplicity 5100940SM

DAMPENER, CONTROL, #(P6709/P3610)

$55.99

$

In Stock, only 2 left!

0

10

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 5100946SM

ROD, HYDRO LINKAGE

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 5023212SM

NUT, Hex, 5/16-24, LH

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

14

Simplicity 5402622A

PLATE, PUMP SUPPORT - BLK
(Superseded to 5402622AYP)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

16

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 5025011X10SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 5021098SM

BEARING, Flange, Bronze, 3/4"

$13.99

$

In Stock, Qty 5

0

21

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

22

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

24

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

25

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

28

Simplicity 5402595A

WELD, NEUTRAL LOCK - RH - IS500Z - BLK
(Superseded to 5402595AYP)

$63.99

$

Usually ships in 2-12 days

0

29

Simplicity 5402594A

WELD, NEUTRAL LOCK - LH - IS500Z - BLK
(Superseded to 5402594AYP)

$63.99

$

Usually ships in 2-12 days

0

30

Simplicity 1717050SM

SWITCH, Push Button, N.O . N.C, Double Pole, Grey

$17.99

$

In Stock, Qty 20+

0

31

Simplicity 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025011X9SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/8

$3.99

$

In Stock, only 1 left!

0

34

Simplicity 5025127SM

NUT, 5/16-18, Hex Serrated Flange (Small)

$3.49

$

In Stock, Qty 7

0

35

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 5048264SM

SPACER, .39 X .63 X 1.50, CZ

$5.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025013X24SM

CAPSCREW, Hex Head, 3/8-16 x 3

$3.99

$

In Stock, only 1 left!

0

38

Simplicity 5047055A

WELD, HANDLE MOTION CONTROL, LH - BLK
(Superseded to 5047055AYP)

$61.99

$

In Stock, only 1 left!

0

39

Simplicity 5047056A

WELD, HANDLE MOTION CONTROL, RH - BLK
(Superseded to 5047056AYP)

$61.99

$

Usually ships in 2-12 days

0

40

Simplicity 5020639SM

SPRING-EXT, .500 OD X 3.50 LG X .058 WR

$31.99

$

Usually ships in 2-12 days

0

41

Simplicity 5022068SM

GRIP, FOAM, 3/4" ID, 16" LONG

$11.99

$

Usually ships in 2-12 days

0

42

Simplicity 5100948SM

GUARD, RUBBER MOT CTRS - IS500Z

$8.49

$

Usually ships in 2-12 days

0

43

Simplicity 5025431SM

PUSH RIVET (TREE TYPE), BLACK

$4.49

$

Usually ships in 2-12 days

0

44

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 5402588AYP

SHAFT MTN CNTRL LH

$

$

Not available

46

Simplicity 5402589AYP

SHAFT MTN CNTRL RH

$112.99

$

Usually ships in 2-12 days

0
