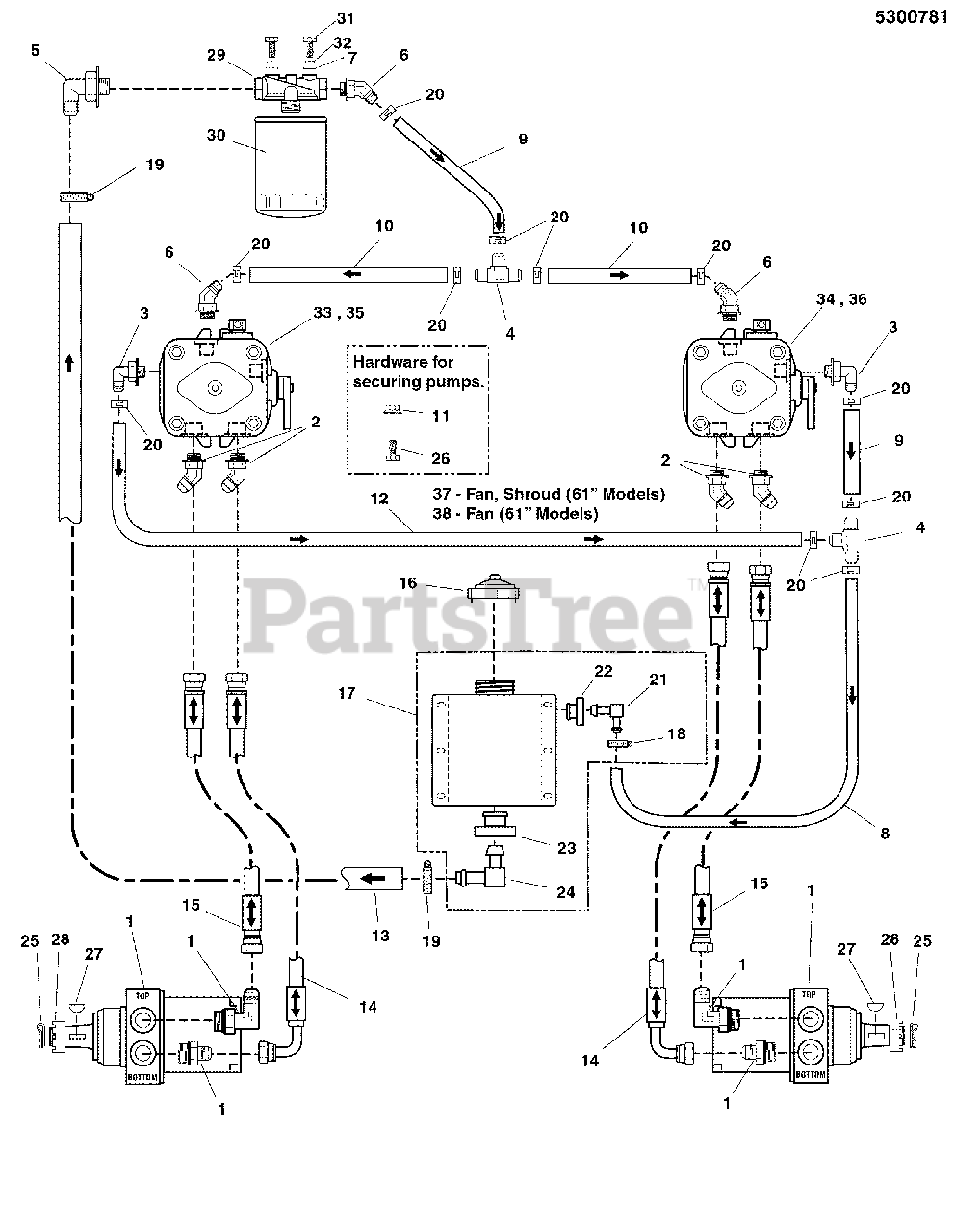

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

Hydraulic Group Parts Diagram

  • Title

1

Refer to Hydraulic Components Service Group

$

$

Not available

2

Simplicity 5023338

FITTING, #8 JIC - #8 O-RING, 45 DEG.
(Superseded to 5023338SM)

$36.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023267

ADAPTER, 90 DEG, 9/16-3/8 BARB
(Superseded to 5023267SM)

$30.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022920

FITTING, TEE, 1/2" HOSE
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5023346

ADAPTER, 90 DEG, 9/16-5/8 BARB
(Superseded to 5023346SM)

$42.99

$

Usually ships in 2-12 days

0

6

Simplicity 5023461

ADAPTER, 45 DEG, 9/16-3/8 BARB
(Superseded to 5023461SM)

$40.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025169

WASHER, 1/4" LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5050860X18P5

HOSE, 3/8" PUSH-LOCK, 18.50"
(Superseded to 5050860X18P5SM)

$22.99

$

In Stock, only 1 left!

0

9

Simplicity 5050860X6P5

HOSE, 3/8" PUSH-LOCK, 6.50"
(Superseded to 5050860X6P5SM)

$8.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050860X6

HOSE, 3/8" PUSH-LOCK, 6.00"
(Superseded to 5050860X6SM)

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 5050860X19

HOSE, 3/8" PUSH-LOCK, 19.00"
(Superseded to 5050860X19SM)

$17.99

$

Usually ships in 2-12 days

0

13

Simplicity 5050933X24P5

HOSE, 5/8 PUSH-LOCK, 24.50"
(Superseded to 5050933X24P5SM)

$50.99

$

Usually ships in 2-12 days

0

14

Simplicity 5102095

HOSE ASSEMBLY (25")
(Superseded to 5102095YP)

$142.99

$

Usually ships in 2-12 days

0

15

Simplicity 5102094

HOSE ASSEMBLY (21")
(Superseded to 5102094YP)

$104.99

$

In Stock, only 1 left!

0

16

Simplicity 5100017

CAP, HYDRAULIC
(Superseded to 5100017SM)

$23.99

$

In Stock, only 1 left!

0

17

Simplicity 5061712

TANK, HYDRAULIC, ASSEMBLY
(Superseded to 5061712SM)

Note: (Includes Ref. Nos 21-24)

$154.99

$

In Stock, Qty 6

0

18

Simplicity 5022922

CLAMP, #4 HOSE, STAINLESS
(Superseded to 5022922SM)

$3.49

$

In Stock, only 1 left!

0

19

Simplicity 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 3 left!

0

20

Simplicity 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 5023118

FITTING, ELBOW, 3/8"
(Superseded to 5023118SM)

Note: (SV)

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 5023120

GROMMET
(Superseded to 1726400FS)

Note: (SV)

$11.99

$

In Stock, only 4 left!

0

23

Simplicity 5023121

GROMMET
(Superseded to 5023121SM)

Note: (SV)

$15.99

$

In Stock, only 1 left!

0

24

Simplicity 5023119

FITTING, ELBOW, 5/8"
(Superseded to 5023119SM)

Note: (SV)

$26.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025203X16

PIN, COTTER, 1/8" X 2"
(Superseded to 5025203X16SM)

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

27

Simplicity 5022042X2

KEY
(Superseded to 5022042X2SM)

Note: (SV)

$10.99

$

In Stock, only 1 left!

0

28

Simplicity 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

Note: (SV)

$34.99

$

In Stock, only 1 left!

0

29

Simplicity 5023096

FILTER HEAD, HYDRAULIC
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

30

Simplicity 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0

31

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

33

Simplicity 5101403

PE, 10CC HYDRAULIC PUMP - LH
(Superseded to 5101403SM)

Note: (44" & 52" Models)

$817.99

$

Usually ships in 2-12 days

0

34

Simplicity 5101404

PE, 10CC HYDRAULIC PUMP - RH
(Superseded to 5101404SM)

Note: (44" & 52" Models)

$817.99

$

Usually ships in 2-12 days

0

35

Simplicity 5023372

PUMP, HYDRAULIC - LH
(Superseded to 5023372SM)

Note: (61" Models)

$1463.99

$

Usually ships in 2-12 days

0

36

Simplicity 5023373

PUMP, HYDRAULIC - RH
(Superseded to 5023373SM)

Note: (61" Models)

$1463.99

$

Usually ships in 2-12 days

0

37

Simplicity 5023371

SHROUD, FAN
(Superseded to 5023371SM)

Note: (61" Models)

$56.99

$

Usually ships in 2-12 days

0

38

Simplicity 5100333

FAN, #51348,HYDRO-GEAR
(Superseded to 5100333SM)

Note: (61" Models)

$54.99

$

In Stock, only 1 left!
