ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Engine Group - Briggs & Stratton Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

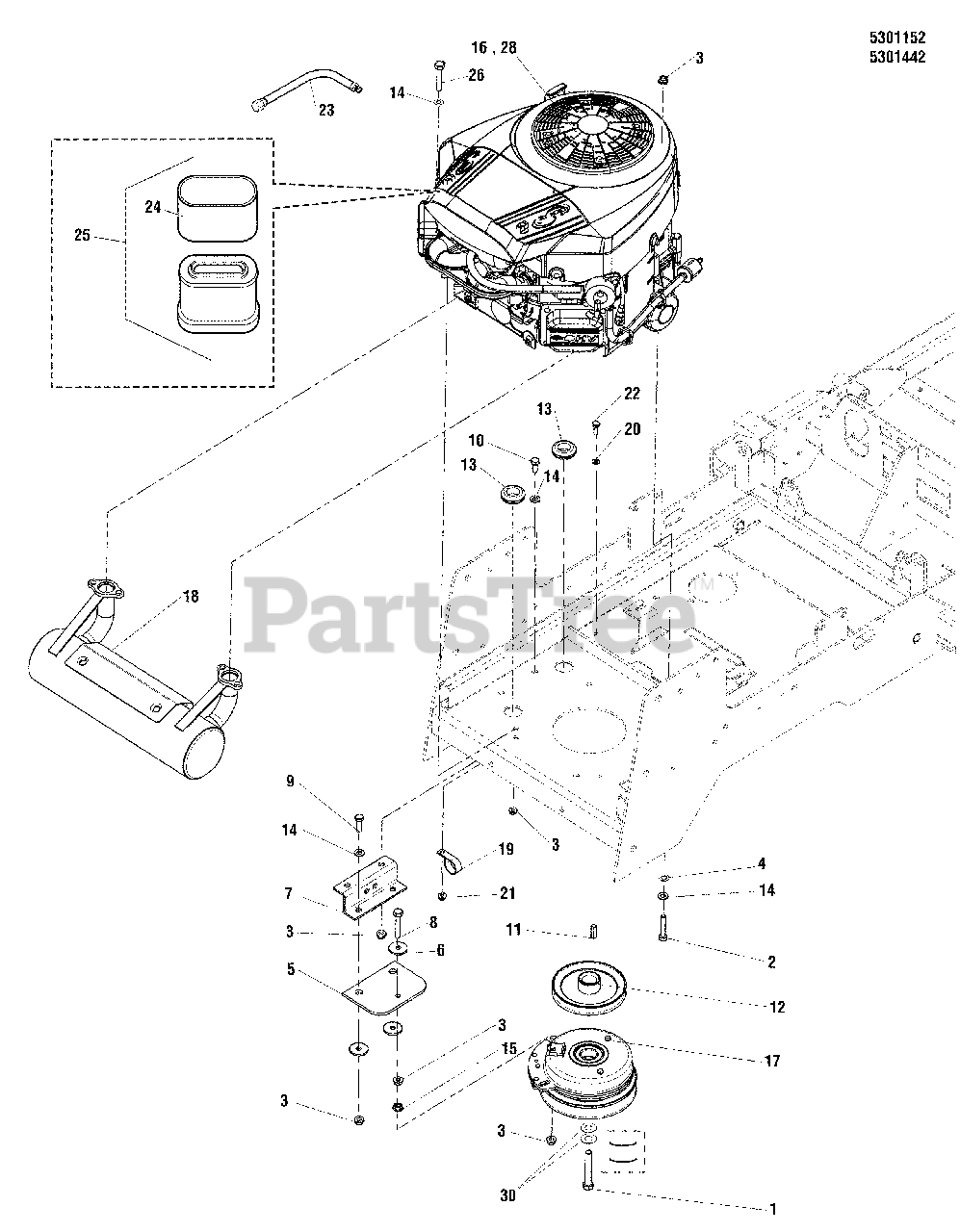

Engine Group - Briggs & Stratton Parts Diagram

  • Title

1a

Simplicity 5102865SM

BOLT, CRANKSHAFT, 7/16X2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 2 left!

0

1b

Simplicity 5102866

BOLT, CRANKSHAFT, 7/16X3
(Superseded to 5102866YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 1 left!

0

2

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 5025188SM

WASHER, 5/16" INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

7

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025055X16SM

BOLT, 5/16-18 X 2 GD5 TFL

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 4 left!

0

11

Simplicity 5050407X8SM

KEY, 1/4 SQ. X 1.00

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5102754SM

PULLEY, CRANKSHAFT, 1.0005 ID X 4.95 OD
(Superseded to 5102754YP)

$57.99

$

In Stock, only 1 left!

0

13

Simplicity 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

16

ENGINE, Briggs & Stratton, ELS #44M777-0113-E1

$

$

Not available

17

Simplicity 5100915SM

CLUTCH, # 5219-34A, ELECTRIC, IS500Z

$330.99

$

Usually ships in 2-12 days

0

18

Simplicity 5100907SM

MUFFLER, B&S-ELS

Note: (S/N: 2016315425 & Below)

$

$

Not available

18

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (S/N: 2016315426 & Above)

$222.99

$

Usually ships in 2-12 days

0

19

Simplicity 5021500SM

CLAMP, VINYL INSULATED

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

24

Simplicity 792303

PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

25

Simplicity 792105

AIR CLEANER W/ PRE CLEANER (SV)

Note: (Includes Ref. No. 24)

$28.99

$

In Stock, Qty 20+

0

26

Simplicity 5025011X12SM

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025055X12SM)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 696854

OIL FILTER

Note: (NOT ILLUSTRATED)

$13.99

$

In Stock, Qty 20+

0

28

ENGINE, Briggs & Stratton, ELS #44Q777-0146-G1

$

$

Not available

28

ENGINE, Briggs & Stratton, ELS #44M777-0124-G1

$

$

Not available

29

Simplicity 5050833X11SM

WIRE LOOM, 1/2" PUSH-LOCK, 1.00"
(Superseded to 5050833X11YP)

Note: (Used on engine oil drain.)

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0
