ZT 4000 B 2648 (5900765) - Simplicity ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Decals - Safety & Operation Parts Diagram

ZT 4000 Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

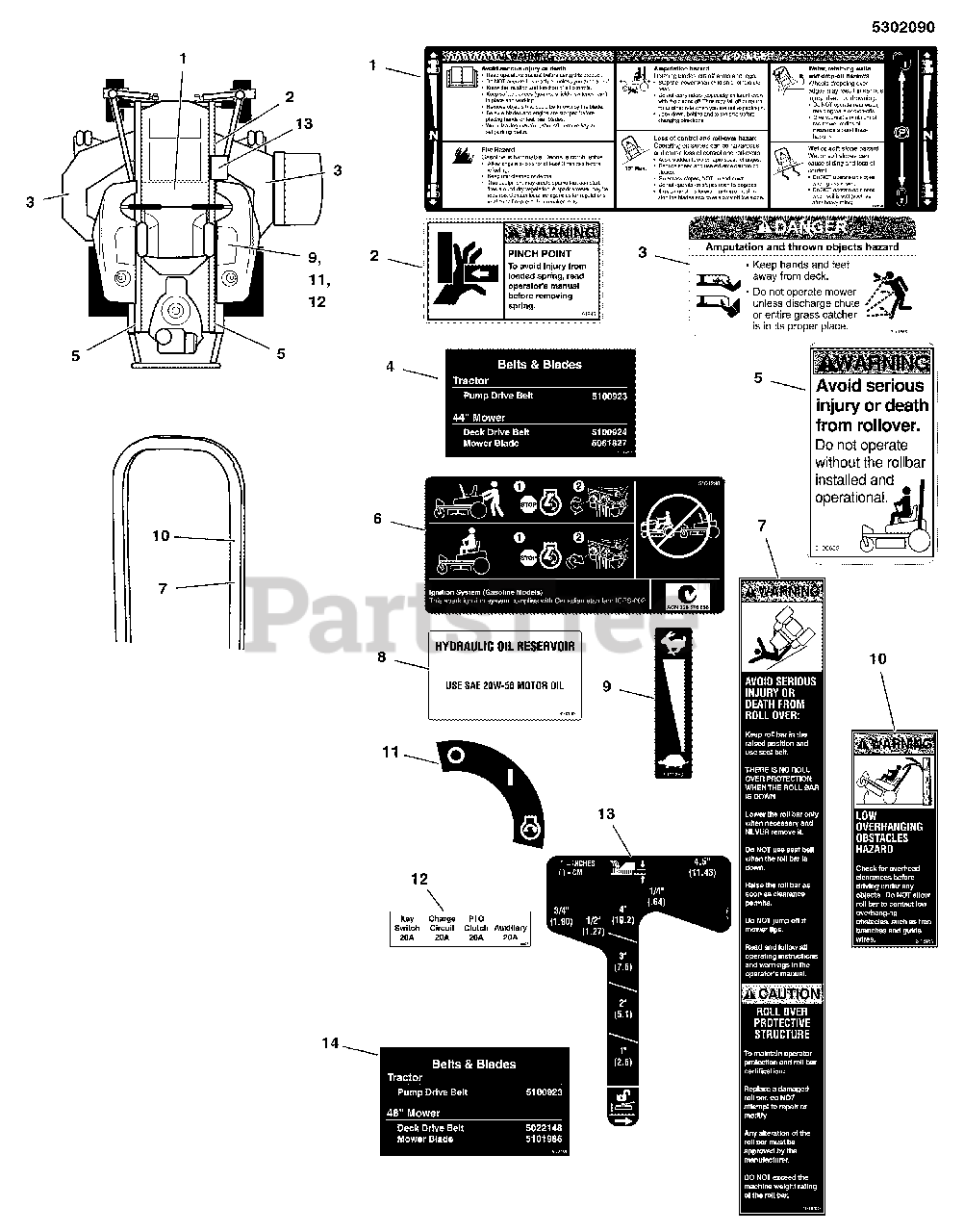

Decals - Safety & Operation Parts Diagram

  • Title

1

Simplicity 5103595

DECAL, MAIN SAFETY
(Superseded to 5103595YP)

$22.99

$

Usually ships in 2-12 days

0

2

Simplicity 5061245

DECAL, PINCH POINT
(Superseded to 5061245SM)

Note: (Qty: 2 on models with 52" mower deck.)

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 7101665

DECAL, DANGER DO NOT OPERATE W/O DEFLECT
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

4

Simplicity 5100905

DECAL, BELT & BLADE, SMI ZT4000
(Superseded to 5100905SM)

Note: (44" Models - Located Under the Seat Plate)

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 5100683

DECAL, WARNING, ROLL BAR
(Superseded to 5100683SM)

Note: (Located on the frame behind the roll bar.)

$7.99

$

In Stock, only 1 left!

0

6

Simplicity 5101990

DECAL, CZT HYRDO RELEASE
(Superseded to 5101990YP)

Note: (Located under the seat plate.)

$6.99

$

Usually ships in 2-12 days

0

7

ORDER PART NUMBERS 5104082 & 5104083

Note: (SV)

$

$

Not available

8

Simplicity 5100957

DECAL, HYDRAULIC OIL, SAE 20W50
(Superseded to 84002270)

Note: (Located by the hydraulic tank.)

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 5100280

DECAL, THROTTLE CONTROL
(Superseded to 5100280SM)

$9.49

$

In Stock, only 2 left!

0

10

Simplicity 5100405

DECAL, WARNING OVERHANG, ROPS
(Superseded to 5100405YP)

Note: (SV)

$9.49

$

Usually ships in 2-12 days

0

11

Simplicity 5048970

DECAL, IGNITION SWITCH
(Superseded to 5048970SM)

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 5046503

DECAL, FUSE LOCATION
(Superseded to 5046503SM)

Note: (Located on the instrument control panel.)

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 5100937

DECAL, DECK HEIGHT, IS500Z
(Superseded to 5100937SM)

$

$

Not available

14

Simplicity 5103265

DECAL, BELT & BLADE, ZT4000-48
(Superseded to 5103265YP)

Note: (48" Models - Located under the seat plate.)

$17.99

$

Usually ships in 2-12 days

0
