ZT 3500 B 2748 (5900521) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Pump Drive Group Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

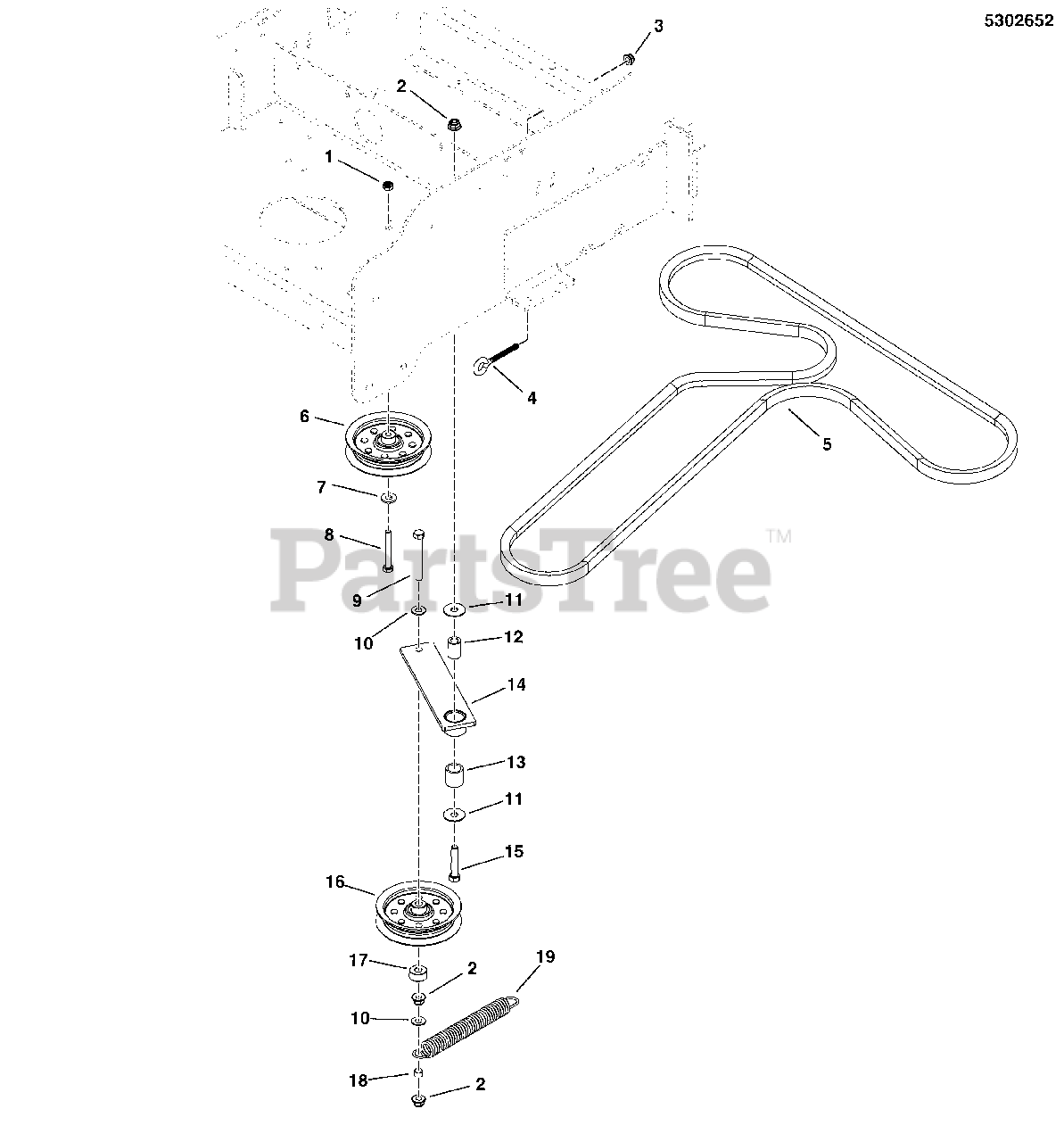

Pump Drive Group Parts Diagram

  • Title

1

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 5025141X26

EYE BOLT,5/16-18 X3.5,2.13THRD,.55EYE,CZ
(Superseded to 5025141X26YP)

$7.99

$

In Stock, Qty 9

0

5

Simplicity 5105189YP

BELT

$45.99

$

In Stock, Qty 19

0

6

Simplicity 5101379YP

PULLEY, IDLER, STATIONARY

$51.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5025058X24

BOLT, 3/8-16 X 3 GD5 TFL
(Superseded to 5025058X24YP)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 5042658

SPACER, .38 X .75 X 1.06, YZ
(Superseded to 5042658SM)

$7.49

$

In Stock, only 1 left!

0

13

Simplicity 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

14

Simplicity 5402919A

WELD, IDLER ARM, SNAPPER PRO - BLK
(Superseded to 5402919AA)

$33.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X16

BOLT, 3/8-16 X 2, GD5, YZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 5101380

PULLEY-IDLER, 4.06OD, .375ID, .75W STL
(Superseded to 5101380YP)

$51.99

$

In Stock, only 1 left!

0

17

Simplicity 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

18

Simplicity 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

20

Simplicity 5025544

BOLT,HEX FLG,SER GD5 3/8-16X2, PATCH,CZ
(Superseded to 5025544YP)

$6.49

$

Usually ships in 2-12 days

0
