ZT 3500 B 2748 (5900521) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Main Frame & Front Caster Group Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

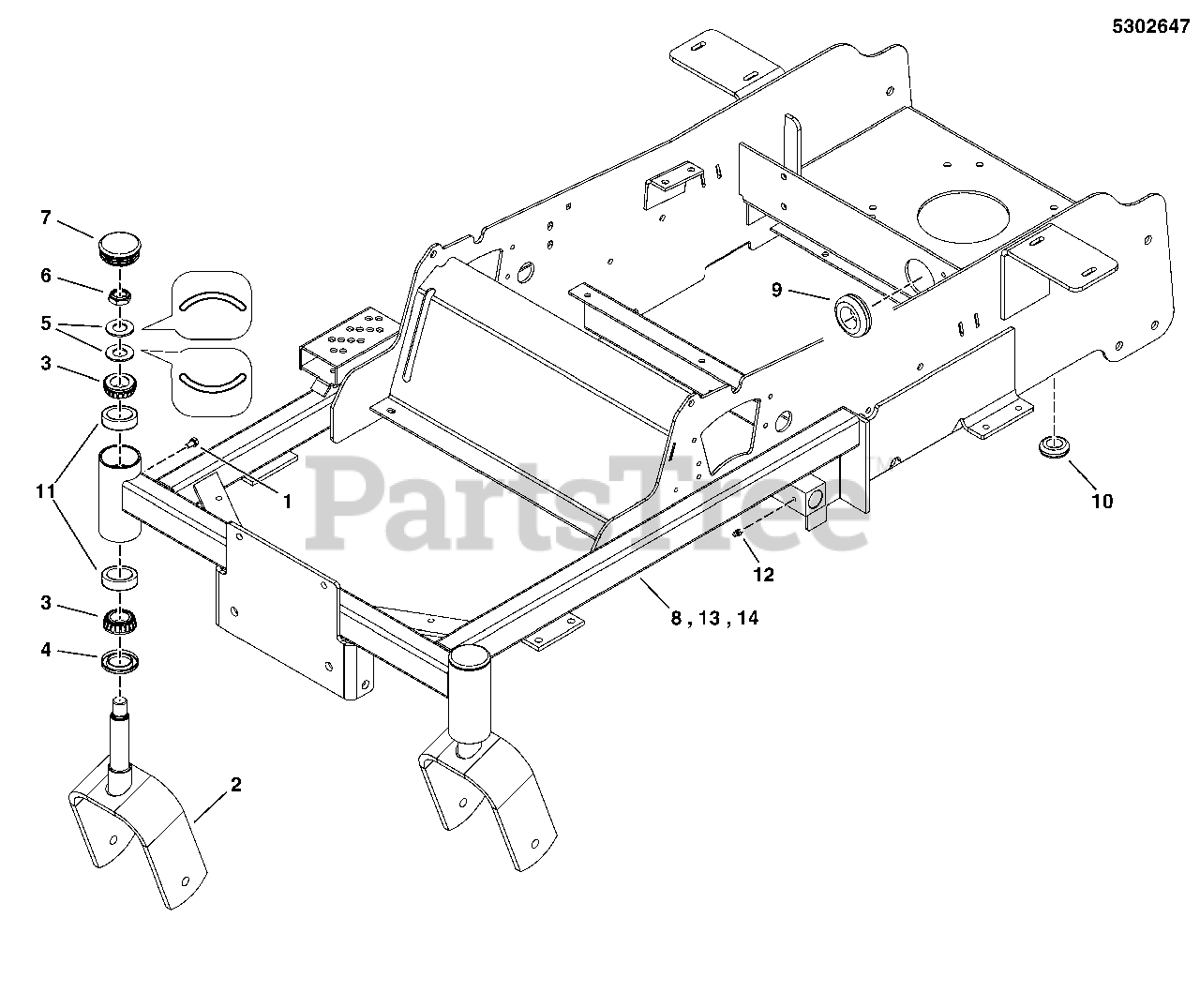

Main Frame & Front Caster Group Parts Diagram

  • Title

1

Simplicity 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5402539C

WELD, CASTER YOKE, IS500Z
(Superseded to 5402539CSM)

$219.99

$

Usually ships in 2-12 days

0

3

Simplicity 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

4

Simplicity 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

5

Simplicity 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 5102929SM

CAP, LOW PROFILE, STEEL

$

$

Not available

8

Simplicity 5406614C

WELD, MAIN FRAME, 48

Note: (S/N: 2016499706 & Below)

$

$

Not available

9

Simplicity 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 5411129CYP

WELD, FRAME, 50XT-48"

Note: (S/N: 2016499707 - 2016646401)

$

$

Not available

14

Simplicity 5411983CYP

WELD, FRAME, 50XT-48"

Note: (S/N: 2016656402 & Above)

$

$

Not available
