ZT 3500 B 2748 (5900521) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

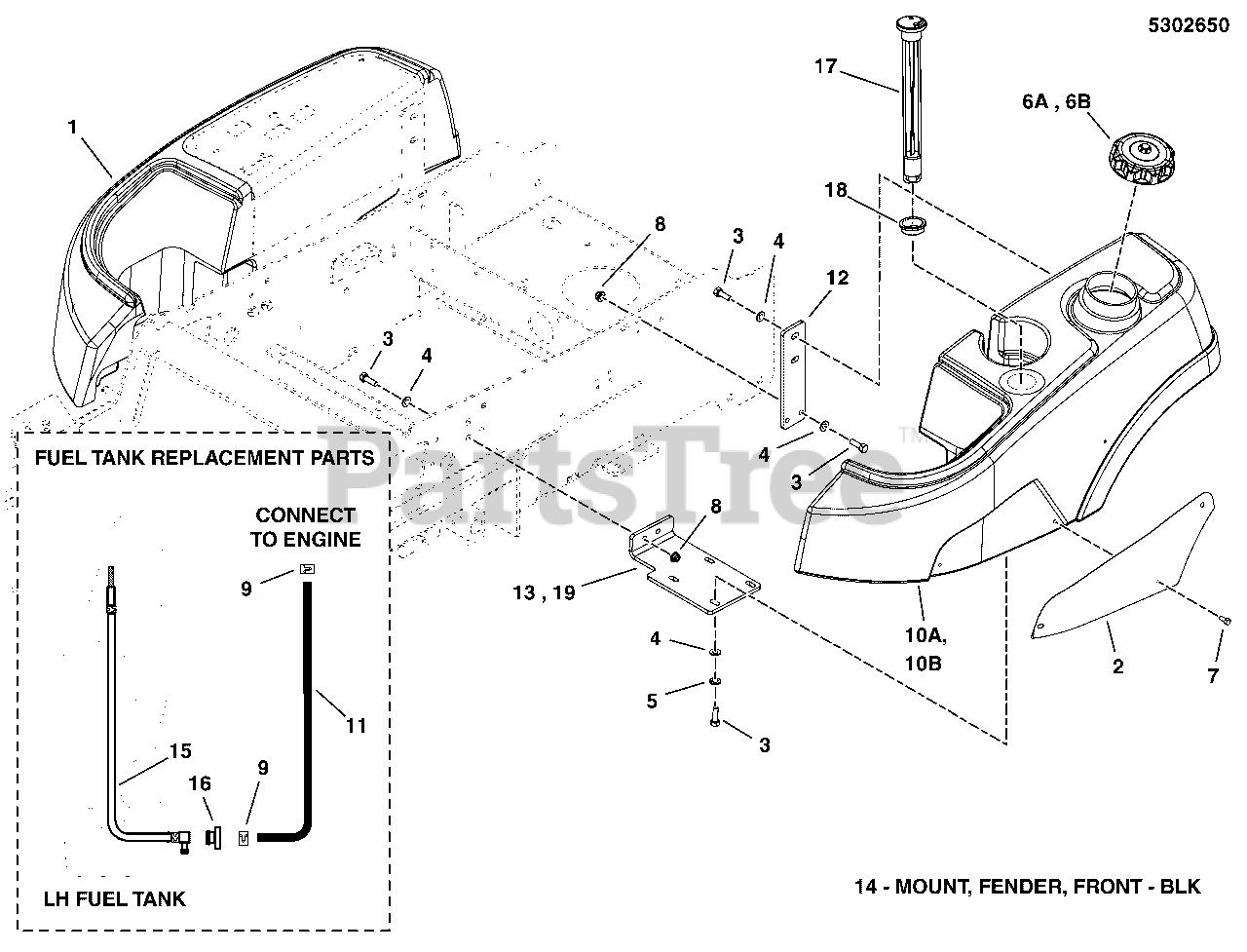

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Simplicity 5048752

TANK, FENDER, CONZ, RH
(Superseded to 5048752SM)

$279.99

$

Usually ships in 2-12 days

0

2

Simplicity 5048909C

PLATE,FUEL TANK BADGE
(Superseded to 5048909CSM)

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

4

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

6a

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014923026 & ABOVE)

$40.99

$

In Stock, only 1 left!

0

6b

Simplicity 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & BELOW)

$30.99

$

In Stock, Qty 20+

0

7

Simplicity 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5020835

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 5020835SM)

$

$

Not available

10a

Simplicity 5103167

TANK,FUEL, LH
(Superseded to 5103167YP)

Note: (S/N: 2014923026 & ABOVE)

$557.99

$

Usually ships in 2-12 days

0

10b

Simplicity 5102544

TANK,FUEL, LH
(Superseded to 5102544YP)

Note: (S/N: 2014923025 & BELOW)

$500.99

$

Usually ships in 2-12 days

0

11

Simplicity 5050831X20

HOSE, 1/4" FUEL, 20.00"
(Superseded to 5050831X20YP)

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 5406626A

MOUNT, FUEL TANK, REAR - ORN
(Superseded to 5406626AYP)

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 5406627A

MOUNT, FUEL TANK, FRONT - BLK
(Superseded to 5406627AYP)

Note: (S/N: 2016656401 & Below)

$40.99

$

Usually ships in 2-12 days

0

14

Simplicity 5406628A

MOUNT, FENDER, FRONT - BLK
(Superseded to 5406628AYP)

Note: (S/N: 2016656401 & Below - Not illustrated)

$40.99

$

Usually ships in 2-12 days

0

15

Simplicity 5101144

PICKUP TUBE ASM, FUEL TANK (SV)

$33.99

$

Usually ships in 2-12 days

0

16

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

17

Simplicity 5023197SM

FUEL GAUGE (SV)

$57.99

$

In Stock, only 4 left!

0

18

Simplicity 5022917X1SM

GROMMET (SV)

$6.99

$

In Stock, Qty 5

0

19

Simplicity 5411923A

MOUNT, FENDER, FRONT - BLK

Note: (S/N: 2016656402 & Above)

$

$

Not available
