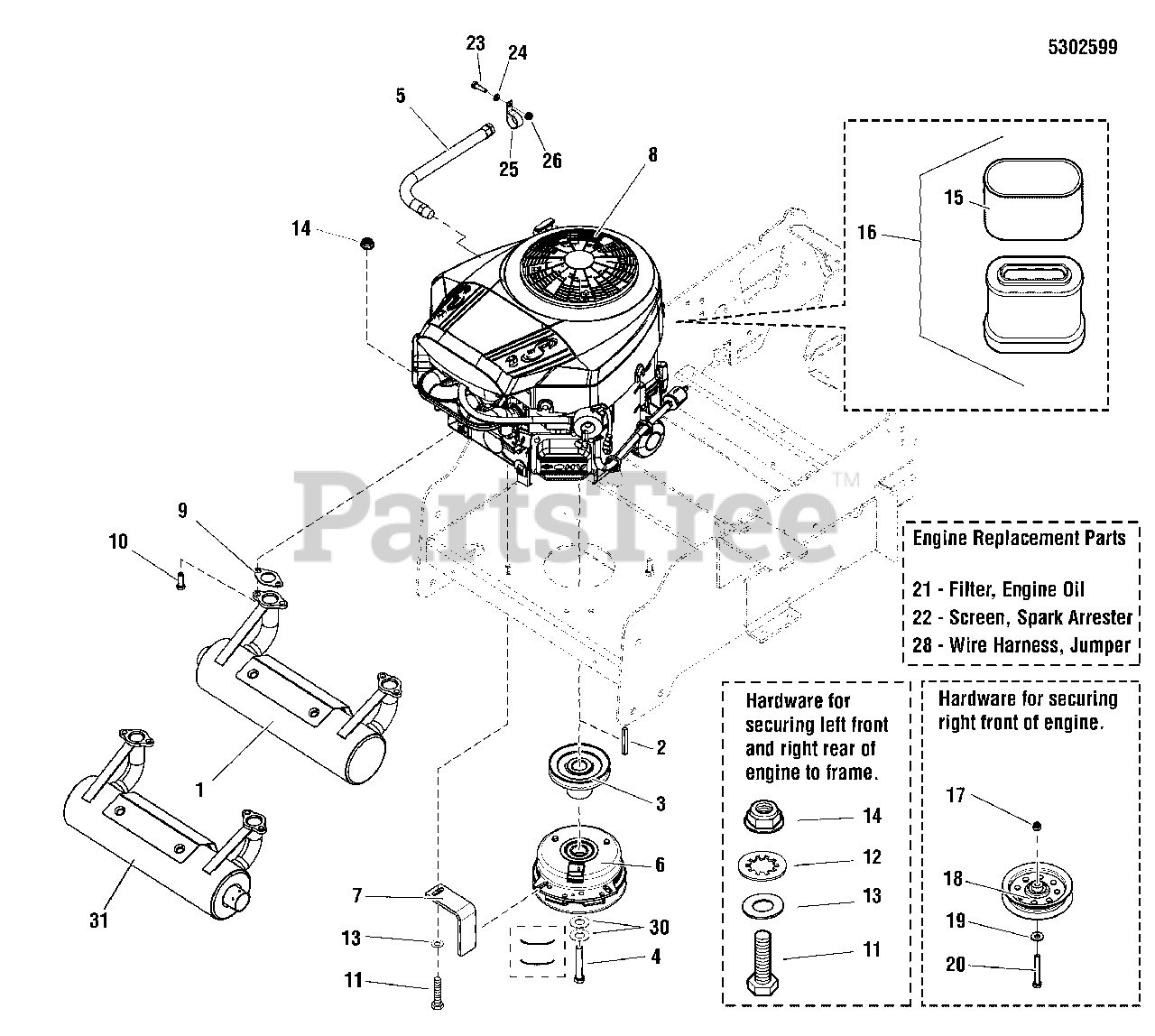

ZT 3500 B 2748 (5900521) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton Engine & PTO Group Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 27hp Briggs & Stratton

Engine & PTO Group Parts Diagram

  • Title

1

Simplicity 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

Note: (S/N: 2016294925 & Below)

$

$

Not available

2

Simplicity 5050407X8

KEY, 1/4 SQ. X 1.00
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 5101337

PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE
(Superseded to 5101337FS)

$35.99

$

Usually ships in 2-12 days

0

4b

Simplicity 5102866

BOLT, CRANKSHAFT, 7/16 X 3
(Superseded to 5102866YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 1 left!

0

4a

Simplicity 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 2 left!

0

5

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 5100915

CLUTCH, # 5219-34A, ELECTRIC, IS500Z
(Superseded to 5100915SM)

$330.99

$

Usually ships in 2-12 days

0

7

Simplicity 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

8

ENGINE, B&S

$

$

Not available

10

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

11

Simplicity 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Simplicity 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 792303

PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

16

Simplicity 792105

AIR CLEANER W/ PRE CLEANER (SV)

Note: (INCLUDES REF NO 15)

$28.99

$

In Stock, Qty 20+

0

17

SEE PUMP DRIVE GROUP

$

$

Not available

18

SEE PUMP DRIVE GROUP

$

$

Not available

19

SEE PUMP DRIVE GROUP

$

$

Not available

20

SEE PUMP DRIVE GROUP

$

$

Not available

21

Simplicity 696854

OIL FILTER (SV)

Note: (NOT SHOWN)

$13.99

$

In Stock, Qty 20+

0

22

Simplicity 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (NOT SHOWN)

$84.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

24

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 5050833X11

WIRE LOOM, 1/2 ID X 11 IN
(Superseded to 5050833X11YP)

Note: (NOT SHOWN)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 5403576

WIRE HARNESS, JUMPER, WARNER CLUTCH
(Superseded to 5403576YP)

Note: (NOT SHOWN)

$65.99

$

Usually ships in 2-12 days

0

28

Simplicity 5403576

WIRE HARNESS, JUMPER, WARNER CLUTCH
(Superseded to 5403576YP)

Note: (NOT SHOWN)

$65.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0

31

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (S/N: 2016294926 & Above)

$222.99

$

Usually ships in 2-12 days

0
