ZT 3500 B 2448 (5901274) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 24hp Briggs & Stratton Rear Bumper Group Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

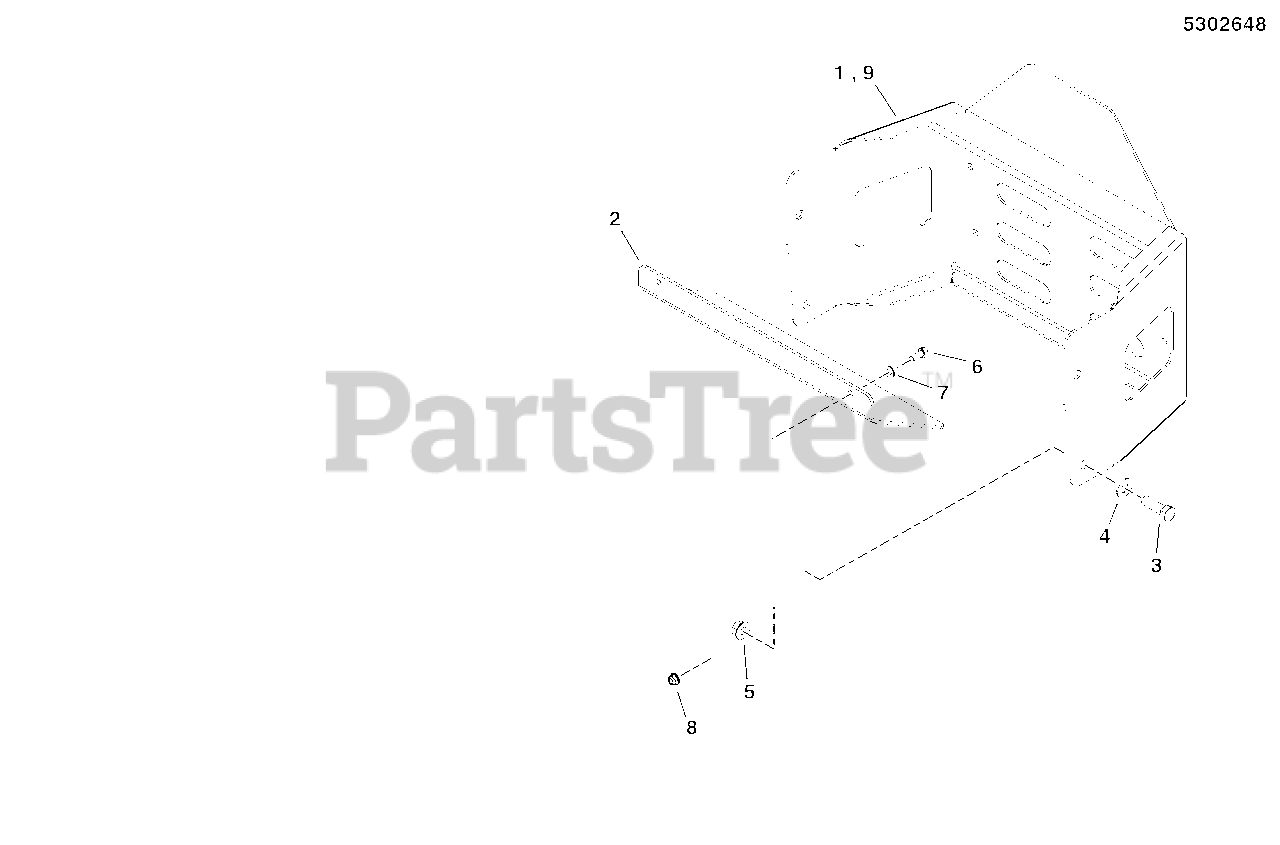

Rear Bumper Group Parts Diagram

  • Title
1

Simplicity 5407854C

WELD, PLATE, BUMPER
(Superseded to 5407854CYP)

Note: (S/N: 2016294925 & Below)

$245.99

$

Usually ships in 2-12 days

0

2

Simplicity 5403593A

SHIELD, MUFFLER - BLK
(Superseded to 5403593AYP)

$41.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 YZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

5

Simplicity 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5410504C

WELD, PLATE, BUMPER - ORG

Note: (S/N: 2016294926 & Above)

$

$

Not available
