ZT 3500 B 2448 (5901274) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 24hp Briggs & Stratton Deck Lift Group Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

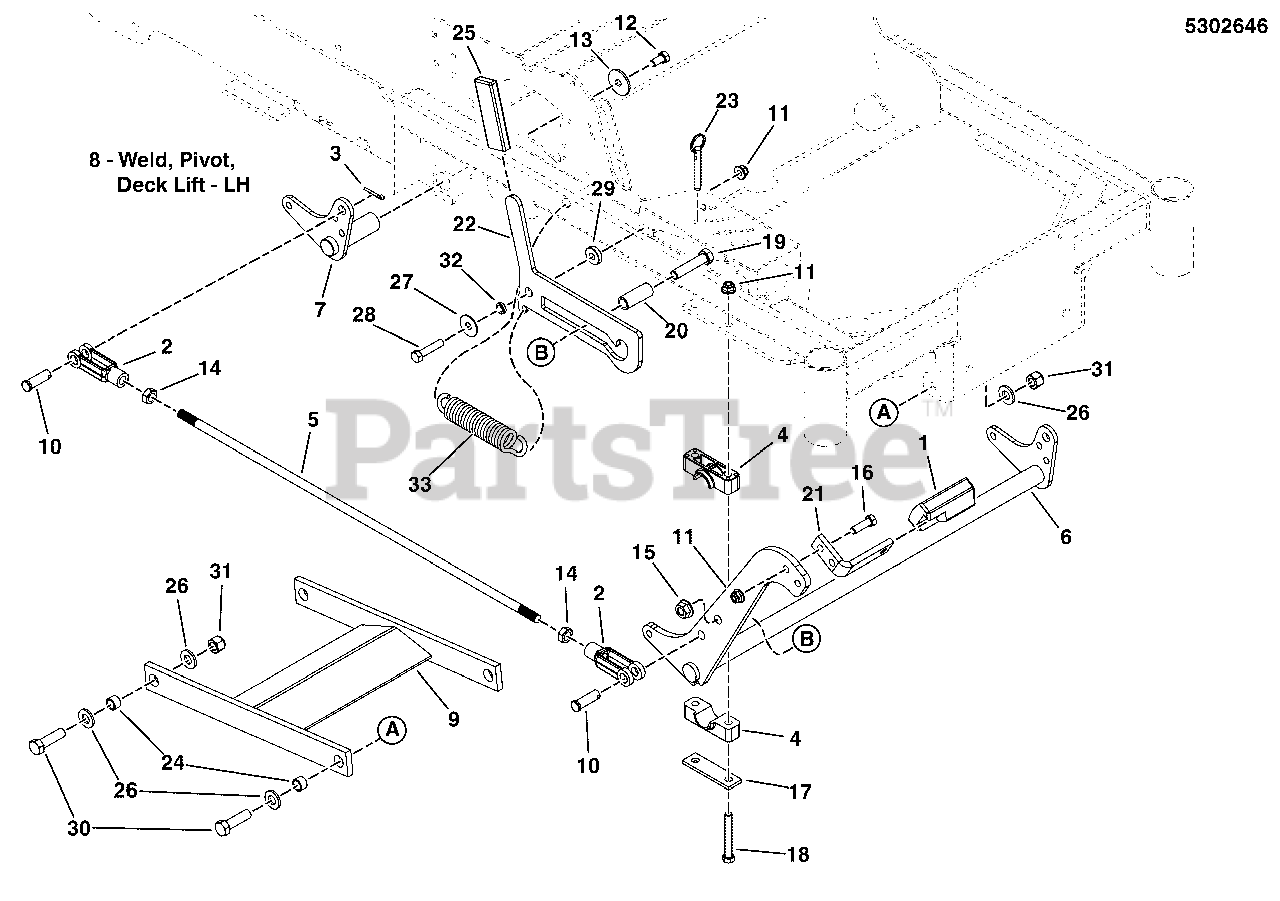

Deck Lift Group Parts Diagram

  • Title

1

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

2

Simplicity 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

4

Simplicity 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 5101117

ROD, DECK LIFT, SNAPPER PRO
(Superseded to 5101117YP)

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 5407892C

WELD, FRONT DECK PIVOT
(Superseded to 84005969)

$136.99

$

Usually ships in 2-12 days

0

7

Simplicity 5402956A

WELD, PIVOT DECK LIFT, RH - BLK
(Superseded to 5402956AYP)

$50.99

$

Usually ships in 2-12 days

0

8

Simplicity 5402957A

WELD, PIVOT, DECK LIFT, LH - BLK

Note: (Not illustrated.)

$

$

Currently unavailable

9

Simplicity 5407830A

WELD, PULLER BAR - BLK
(Superseded to 5407830AYP)

$87.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025328X12

PIN, CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 4 left!

0

11

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

15

Simplicity 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

17

Simplicity 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025013X22

BOLT, 3/8-16 X 2-3/4 GD5 YZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

19

Simplicity 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

20

Simplicity 5102545

SPACER, .53 X .73 X 3.38, CZ
(Superseded to 5102545YP)

$24.99

$

Usually ships in 2-12 days

0

21

Simplicity 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

22

Simplicity 5406623C

PLATE, DECK TRANSPORT LEVER
(Superseded to 5406623CYP)

$

$

Not available

23

Simplicity 5103021

HITCH PIN, 3/8 X 2-1/2, COTTERLESS, CZ
(Superseded to 5103021YP)

$11.99

$

In Stock, only 2 left!

0

24

Simplicity 5020870

INSERT, BEARING
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

25

Simplicity 5025510

GRIP, FOAM, 1/4 X 1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

26

Simplicity 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 5025013X14

BOLT, 3/8-16 X 1-3/4 GD5
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

30

Simplicity 5025018X14

BOLT, 1/2-20 X 1-3/4 GD8 YZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

31

Simplicity 5025098

NUT, 1/2-20 HEX NYLON LOCK
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

32

Simplicity 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 5102692

SPRING, EXTENSION, .50OD X 4.12 FL
(Superseded to 5102692YP)

$19.99

$

Usually ships in 2-12 days

0
